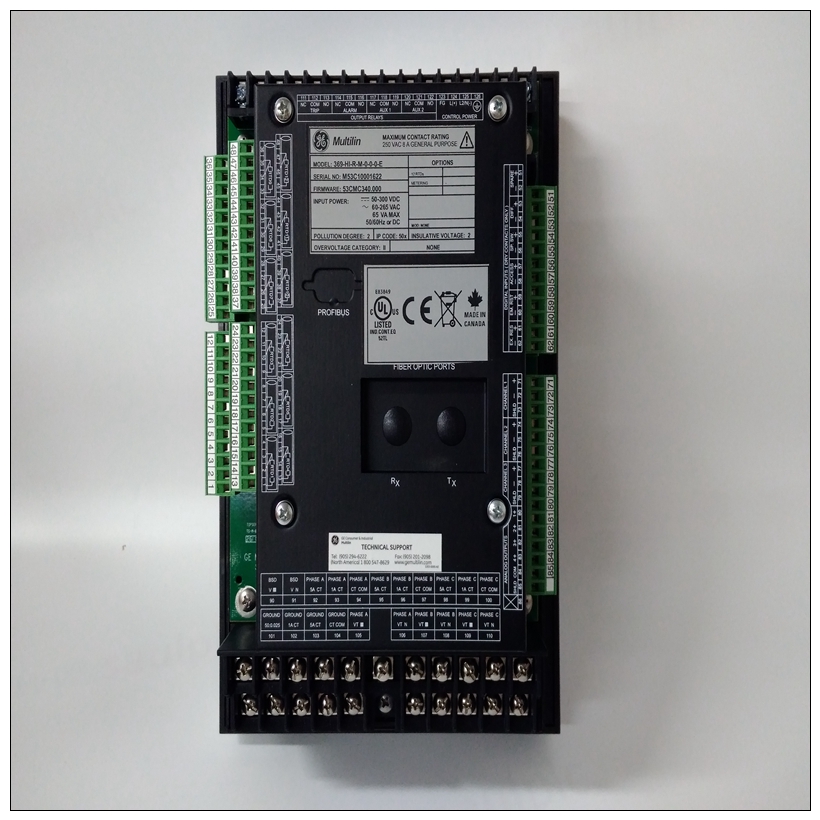

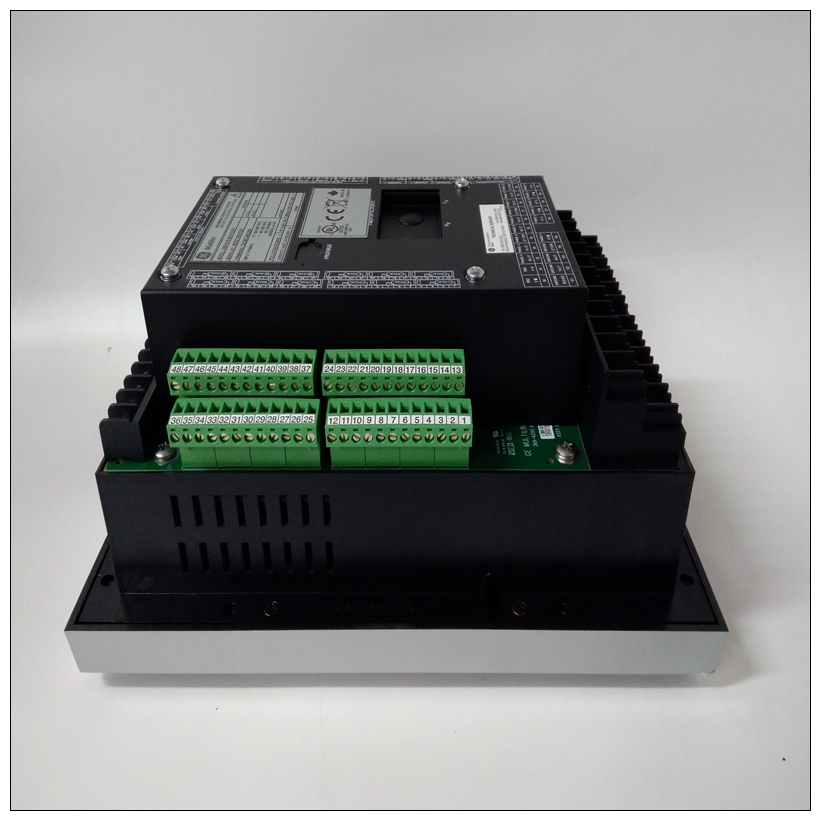

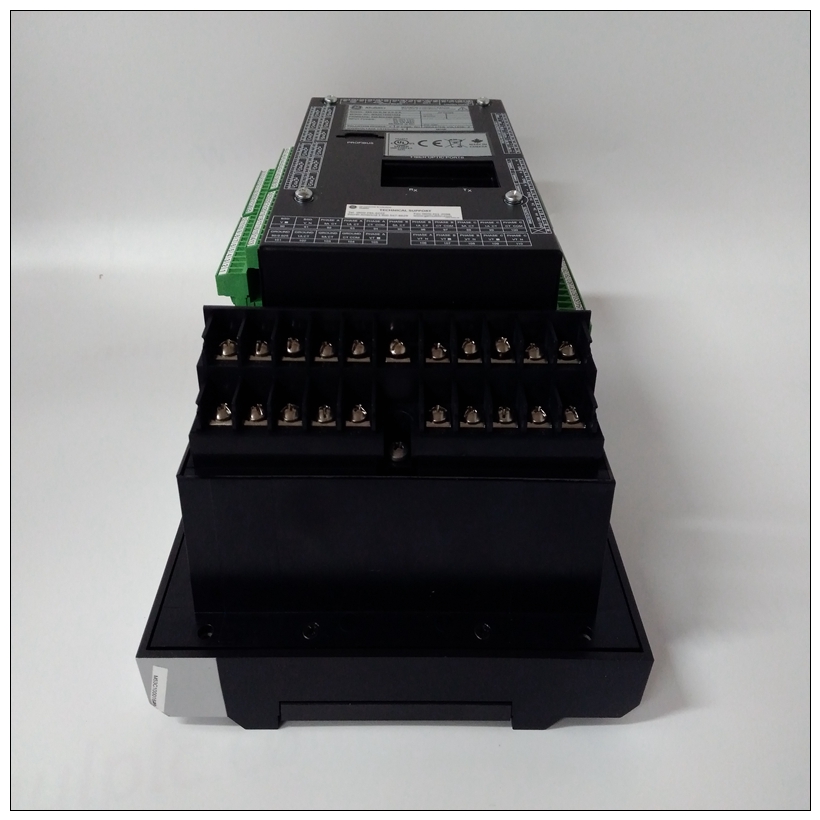

369-HI-R-M-0-0-0-E继电保护器,GE燃机电气以太网接口端口以太网接口模块有两个自动感应10Base T/100Base TX RJ-45屏蔽用于连接10BaseT或100BaseTX IEEE 802.3的双绞线以太网端口网络端口自动感应速度（10Mbps或100Mbps）、双工模式（半双工或全双工）和连接到其上的电缆（直通或交叉），无需干预必修的。以太网介质以太网接口可以通过其网络端口直接在10BaseT/100BaseTX介质上运行。

369-HI-R-M-0-0-0-E继电保护器10BaseT:10BaseT在每个节点之间使用长达100米的双绞线和交换机、集线器或中继器。典型的交换机、集线器或中继器支持6到12个节点以星形布线拓扑连接。100BaseTX:100BaseTX在每个节点和交换机、集线器或中继器。电缆应为数据级5类非屏蔽双绞线（UTP）或屏蔽双绞线（STP）电缆。使用两对导线，一对用于传输，另一个用于碰撞检测和接收。典型的交换机、集线器或中继器支持6在星形布线拓扑中连接到12个节点。车站经理以太网接口的内置车站管理器功能提供在线监控通过Station Manager端口或以太网电缆访问以太网接口。车站经理服务包括：▪ 用于询问和控制电台的一组交互式命令。▪ 无限制访问以观察内部统计信息、异常日志和配置参数。固件升级以太网接口使用WinLoader软件实用程序。WInLoader随以太网接口的任何更新一起提供软件以太网全局数据（EGD）每个PACSystems CPU最多支持255个同时以太网全局数据（EGD）交易所。EGD交换使用编程器进行配置，并存储在PLC中。生产和消费的交易所都可以配置。PACSystems以太网接口支持EGD交换的选择性消费和EGD交换的生产和消耗到本地子网的广播IP地址。

Ethernet Interface Ports

The Ethernet Interface module has two auto-sensing 10Base T / 100Base TX RJ-45 shielded

twisted pair Ethernet ports for connection to either a 10BaseT or 100BaseTX IEEE 802.3

network. The port automatically senses the speed (10Mbps or 100Mbps), duplex mode (half

duplex or full duplex) and cable (straight-through or crossover) attached to it with no intervention

required.

Ethernet Media

The Ethernet Interface can operate directly on 10BaseT/100BaseTX media via its network ports.

10BaseT: 10BaseT uses a twisted pair cable of up to 100 meters in length between each node

and a switch, hub, or repeater. Typical switches, hubs, or repeaters support 6 to 12 nodes

connected in a star wiring topology.

100BaseTX: 100BaseTX uses a cable of up to 100 meters in length between each node and a

switch, hub, or repeater. The cable should be data grade Category 5 unshielded twisted pair

(UTP) or shielded twisted pair (STP) cable. Two pairs of wire are used, one for transmission,

and the other for collision detection and receive. Typical switches, hubs, or repeaters support 6

to 12 nodes connected in a star wiring topology.Station Manager

The built-in Station Manager function of the Ethernet Interface provides on-line supervisory

access to the Ethernet Interface, through the Station Manager port or over the Ethernet cable.

Station Manager services include:

▪ An interactive set of commands for interrogating and controlling the station.

▪ Unrestricted access to observe internal statistics, an exception log, and configuration

parameters. Firmware Upgrades

The Ethernet Interface receives its firmware upgrades indirectly from the PLC CPU using the

WinLoader software utility. WInLoader is supplied with any updates to the Ethernet Interface

software.

Ethernet Global Data (EGD)

Each PACSystems CPU supports up to 255 simultaneous Ethernet Global Data (EGD)

exchanges. EGD exchanges are configured using the programmer and stored into the PLC.

Both Produced and Consumed exchanges can be configured. PACSystems Ethernet Interfaces

support both selective consumption of EGD exchanges and EGD exchange production and

consumption to the broadcast IP address of the local subnet.
