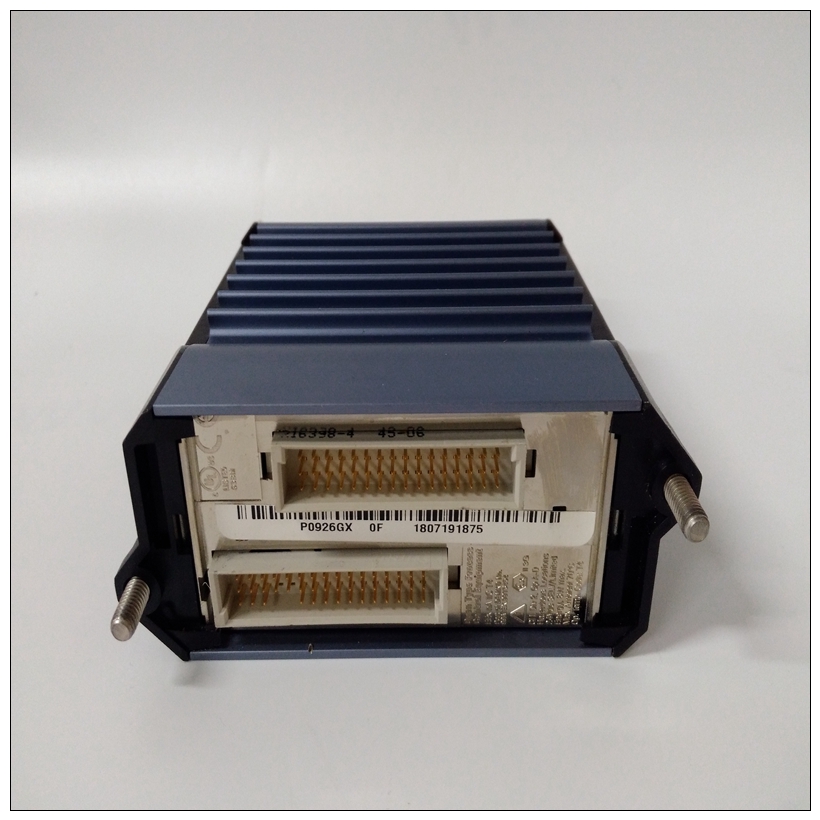

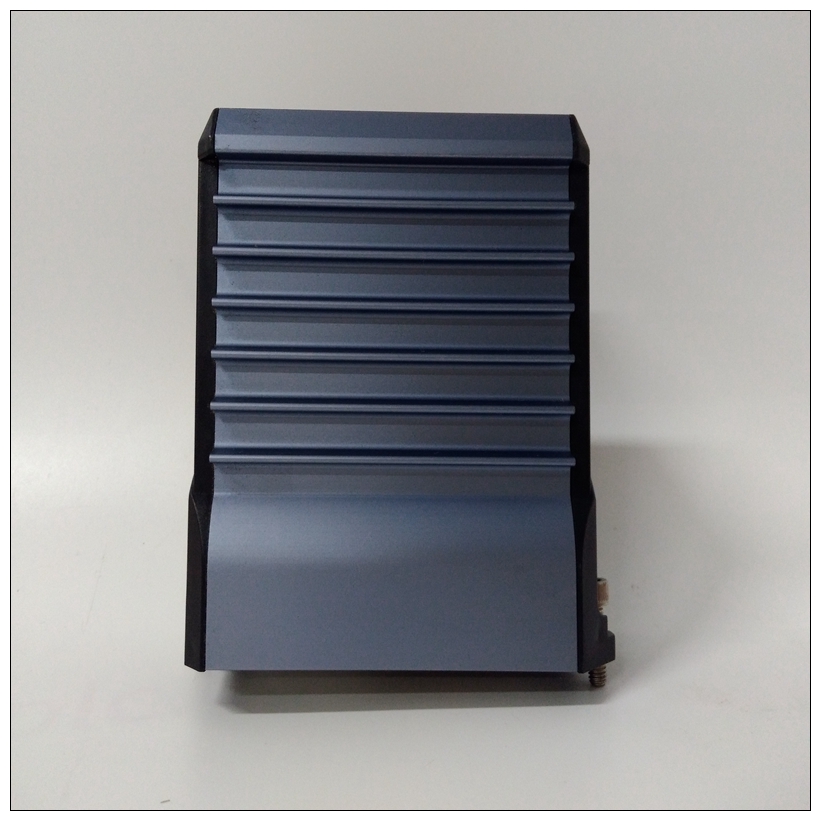

FBM233 P0926GX输入输出模块，FOXBORO使用速度

特征
从120 VAC、240 VAC运行
三个输出电压，总计100瓦+5 VDC输出高达18安培+12 VDC输出高达2安培-12 VDC输出高达1安培
滑入式机架安装结构
电子短路过流保护
单电源双机架运行功能100瓦电源模块是一个机架安装单元，直接插入机架最左侧插槽中安装在48针背板上的连接器。

FBM233 P0926GX输入输出模块它提供+5伏、+12伏和-12伏电源和逻辑至背板的电平排序信号。电源可以在单个机架中使用应用程序，或也可用于向第二个机架，如果总负载在电源额定值范围内。通过预接线电缆与第二个机架互连（参见上一页的订购说明电源输出将经过一个周期满载时输入功率的总损失。为过流和过压故障条件提供保护。电源的操作该电源模块可以通过以下任一方式操作：120伏或240伏标称线路（这是跳线选择，如第3页所示）。对于这两个范围电源可接受的输入电压范围为90至132 VAC或180至264 VAC，47至63 Hz。过电压保护电源包括电子过电压保护电路。该电路将关闭输出如果5伏总线超过6.2+0.5伏，则电源必须关闭才能重置。外部过电压触发过电压保护的输出不会导致电源保险丝断开。但是，如果电源中存在内部故障由于过电压情况，保险丝可能会断开。用3AG 3安培250伏保险丝更换此保险丝。

Features

Operation from 120 VAC, 240 VAC

Three output voltages, 100 watts total

+5 VDC output up to 18 amps

+12 VDC output up to 2 amps

-12 VDC output up to 1 amp

Slide-in rack mount construction

Electronic short circuit overcurrent protection

Two rack operation from a single power supply

Functions

The 100 Watt Power Supply Module is a rack-mountedunit that plugs directly into a 48-pin backplanemounted connector in the leftmost slot in the rack. It

provides +5 volt, +12 volt and -12 volt power, and logic

level sequencing signals to the backplane.

This power supply may be used either in a single rack

application, or may also be used to provide power to a

second rack if the total load is within the supply rating.

Interconnection to the second rack is through a prewired cable (see the ordering instructions on the last

page of this data sheet)The power supply output will ride through a one-cycle

total loss of input power at full load. Protection is provided for overcurrent and overvoltage fault conditions.

Operation of the Power Supply

This Power Supply Module can operate from either a

120 voltor 240 volt nominal line (this is jumper selectable, as illustrated on page 3). For these two ranges, the

power supply can accept an input voltage range of from

90 to132 VAC or from 180 to 264 VAC, 47 to 63 Hz.Overvoltage Protection

The power supply includes an electronic overvoltage

protection circuit. This circuit will turn the output off

if the 5 volt bus exceeds 6.2 +0.5 V. The power supply

must be turned off to be reset. External overvoltage

on the output that triggered the overvoltage protection will not cause the power supply fuse to open.

However, if an internal fault in the power supply

caused the overvoltage condition, the fuse may open.

Replace this fuse with a 3AG 3 amp, 250 volt fuse.
