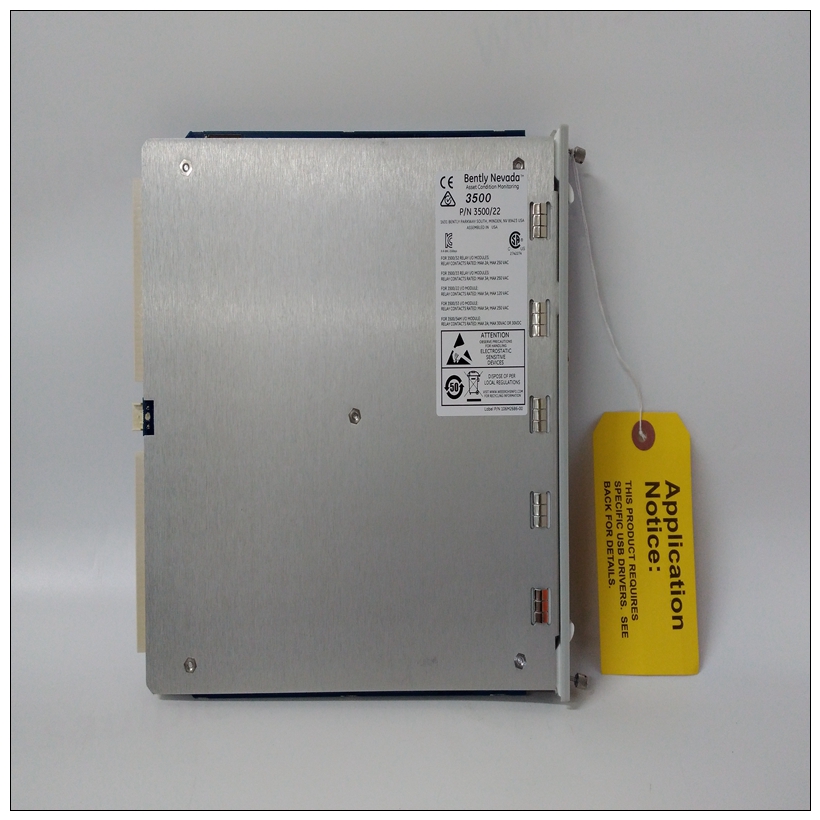

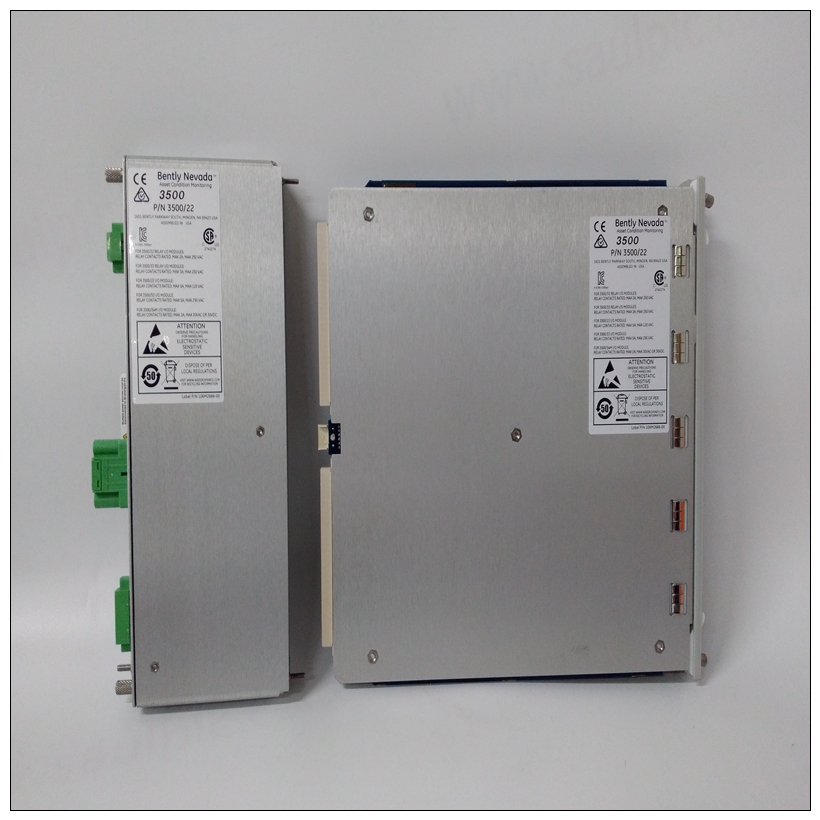

BEMTLY 3500/22M带有TDI 的框架接口模块
导电底盘导轨连接至接地。这提供将屏蔽连接到接地的路径。前面板螺钉正确拧紧。对于最小射频发射，必须满足上述条件实施；如果不这样做，可能会危及FCC包含模块的设备的合规性。表1-3。MVME147规格特性规范功率要求（MVME147，带两个EPROM和MVME712M）+5 Vdc，最大4.5A（典型值为3.5 A）+12 Vdc，最大1.0 A（最大100 mA-无LAN）-12 Vdc，最大100 mA注意：电源必须从P1和P2引入背板
BEMTLY 3500/22M带有TDI 的框架接口模块或连接器P1和P2微处理器MC68030MPU和FPC的16/25/32 MHz时钟信号（取决于版本）寻址总地址范围（船上和船下）EPROM/EEPROM动态RAM4GB四个32针插座，用于8K x 8至1M x 8设备4/8/16/32 MB（取决于版本）输入/输出端口电视连续剧平行的四个多协议串行端口（通过P2连接到过渡模块）并行输入/输出Centronics打印机端（通过P2连接到过渡模块）计时器一天中的时间时钟看门狗定时器滴答计时器共四个M48T18（仅4KB SRAM可访问）16位（滴答定时器输出为看门狗定时器输入）两个16位可编程总线配置数据传输总线主机，32位地址（A32）和32位数据（D32）（也支持A24:D16）任何或全部板载中断处理程序，加上多达七个VMEbus中断总线仲裁两种模式：优先模式和旋转优先模式
Conductive chassis rails connected to earth ground. This provides the path for connecting shields to earth ground. 4. Front panel screws properly tightened. For minimum RF emissions, it is essential that the conditions above be implemented; failure to do so could compromise the FCC compliance of the equipment containing the modules. Table 1-3. MVME147 Specifications Characteristics Specifications Power requirements (MVME147 with two EPROMs and MVME712M) +5 Vdc, 4.5A maximum (3.5 A typical) +12 Vdc, 1.0 A maximum (100 mA maximum - no LAN) -12 Vdc, 100 mA maximum Note: Power must be brought in from both the P1 and P2 backplanes or connectors P1 and P2 Microprocessor MC68030 Clock signal 16/25/32 MHz to MPU and FPC (depends on version) Addressing Total address range (on and off board) EPROM/EEPROM Dynamic RAM 4GB Four sockets, 32 pin, for 8K x 8 to 1M x 8 devices 4/8/16/32 MB (depends on version) I/O ports Serial Parallel Four multiprotocol serial ports (connected through P2 to transition module) Parallel I/O Centronics printer port (connected through P2 to transition module) Timers Time-of-day clock Watchdog timer Tick timer Four total M48T18 (only 4KB SRAM accessible) 16-bit (tick timer output is watchdog timer input) Two 16-bit programmable Bus configuration Data transfer bus master, with 32-bit address (A32) and 32-bit data (D32) (A24:D16 also supported) Interrupt handler Any or all onboard, plus up to seven VMEbus interrupts Bus arbitration Two modes: prioritized mode and rotating priority mode
