NI PXI-6025E多功能数据采集卡
1.产 品 资 料 介 绍：
中文资料：
NI PXI-6025E是一款由National Instruments（现在是NI公司）生产的多功能数据采集卡。以下是有关该产品的特点介绍、使用方法和参数详情：
产品特点：
- 多通道：NI PXI-6025E具有16个单端或8个差分模拟输入通道，可以同时采集多个信号源的数据。
- 高速采集：该采集卡支持高达200 kS/s的采样速率，可以捕获快速变化的信号。
- 高分辨率：它提供16位模数转换器（ADC），可以提供较高的信号分辨率和准确性。
- 多种测量功能：NI PXI-6025E支持模拟输入、数字输入/输出（DIO）和计数器/定时器功能，适用于多种应用场景。
- 灵活性：采集卡可以与PXI平台集成，通过总线连接与其他模块和设备进行交互，提供灵活的系统配置选项。
使用方法：
- 硬件连接：将NI PXI-6025E插入PXI机箱的适当插槽中，并确保连接好电源和必要的信号线。
- 驱动安装：安装NI-DAQmx驱动软件，并按照说明完成安装过程。
- 软件编程：使用NI-DAQmx编程接口或相应的开发环境（如LabVIEW）进行编程，配置和控制采集卡。
- 配置采样参数：设置采样率、输入通道配置、测量范围等参数，以满足应用需求。
- 数据采集和处理：启动数据采集，并使用编程接口或开发环境中的函数进行数据处理和分析。
参数详情（部分参数）：
- 采样率：最高200 kS/s
- 分辨率：16位
- 模拟输入通道数：16个单端或8个差分
- 输入电压范围：可配置为±10V、±5V、±2V、±1V等
- 数字I/O通道数：8个
- 计数器/定时器：2个
- 总线接口：PXI
- 驱动软件：NI-DAQmx
英文资料：
NI PXI-6025E is a multifunctional data acquisition card produced by National Instruments (now NI Company). The following is an introduction to the characteristics, usage methods, and parameter details of this product:
Product features:
Multi channel: NI PXI-6025E has 16 single ended or 8 differential analog input channels, which can simultaneously collect data from multiple signal sources.
High speed acquisition: This acquisition card supports a sampling rate of up to 200 kS/s and can capture rapidly changing signals.
High resolution: It provides a 16 bit analog-to-digital converter (ADC), which can provide high signal resolution and accuracy.
Multiple measurement functions: NI PXI-6025E supports analog input, digital input/output (DIO), and counter/timer functions, suitable for various application scenarios.
Flexibility: The acquisition card can be integrated with the PXI platform and interact with other modules and devices through bus connections, providing flexible system configuration options.
usage method:
Hardware connection: Insert the NI PXI-6025E into the appropriate slot of the PXI chassis and ensure that the power supply and necessary signal cables are connected properly.
Driver installation: Install the NI-DAQmx driver software and follow the instructions to complete the installation process.
Software programming: Use the NI-DAQmx programming interface or corresponding development environment (such as LabVIEW) for programming, configuration, and control of the acquisition card.
Configure sampling parameters: Set sampling rate, input channel configuration, measurement range, and other parameters to meet application requirements.
Data collection and processing: Start data collection and use programming interfaces or functions in the development environment for data processing and analysis.
Parameter details (some parameters):
Sampling rate: up to 200 kS/s
Resolution: 16 bits
Number of analog input channels: 16 single ended or 8 differential
Input voltage range: configurable as ± 10V, ± 5V, ± 2V, ± 1V, etc
Number of digital I/O channels: 8
Counters/timers: 2
Bus interface: PXI
Driver software: NI-DAQmx

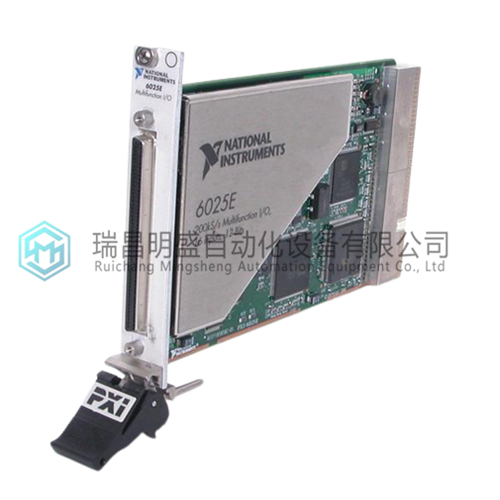

2.产 品 展 示
