ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B工控控制卡件
1.产 品 资 料 介 绍：
中文资料：
I/O接口ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B为许多系统应用程序提供板载I/O。❏ I/O功能包括：–串行端口–打印机端口–以太网收发器接口–SCSI大容量存储接口❏ 应使用诸如MVME712X之类的外部I/O转换板将I/O连接器引脚输出转换为行业标准连接器。
配置标头位于ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B和MVME712X转换板上。ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B上的I/O连接到VMEbus P2连接器。MVME712X转换模块通过电缆和P2适配器板连接到ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B。
串行端口接口CD2401串行控制器芯片（SCC）实现了四个串行端口。串行端口支持标准波特率（110到38.4K波特）。由于P2 I/O连接器上的引脚数量有限，四个串行端口的功能不同
英文资料：
I/O Interfaces The ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B provides onboard I/O for many system applications. ❏ The I/O functions include: – Serial ports – Printer port – Ethernet transceiver interface – SCSI mass storage interface ❏ An external I/O transition board such as the MVME712X should be used to convert the I/O connector pinout to industry-standard connectors.
The configuration headers are located on the ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B and the MVME712X transition board. The I/O on the ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B is connected to the VMEbus P2 connector. The MVME712X transition module is connected to the ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B through cables and a P2 adapter board.
Serial Port Interface The CD2401 serial controller chip (SCC) implements the four serial ports. The serial ports support the standard baud rates (110 to 38.4K baud). The four serial ports are different functionally because of the limited number of pins on the P2 I/O connector

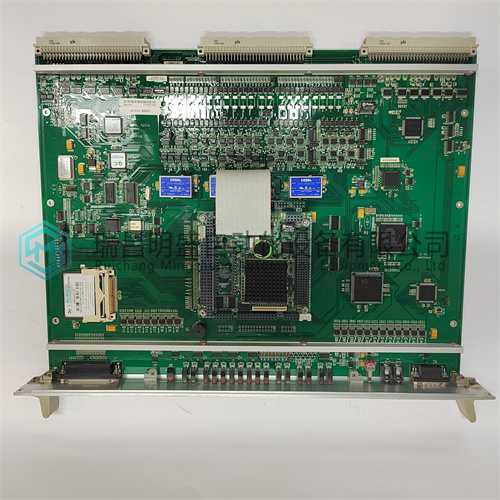

2.产 品 展 示
3.主 营 品 牌
