PIONEER MAGNETICS PM3398B-6P-1-3P-E电源模块
1.产 品 详 情 资 料：
当PIONEER MAGNETICS PM3398B-6P-1-3P-E模块在冗余配置中运行时，黄色DUAL指示灯点亮。DUAL LED点亮的模块是冗余配置中的主要[活动]模块。注意：即使备份PIONEER MAGNETICS PM3398B-6P-1-3P-E模块在冗余配置中出现错误或故障，冗余配置中主PIONEER MAGNETICS PM3398B-6P-1-3P-E的DUAL LED仍然亮起。DUAL LED熄灭黄色DUAL LED在满足以下任何条件时熄灭：•PIONEER MAGNETICS PM3398B-6P-1-3P-E在单一配置中运行。•PIONEER MAGNETICS PM3398B-6P-1-3P-E在冗余配置中运行，但它充当备份模块。所有LED熄灭可能原因1：与CEX总线上的PIONEER MAGNETICS PM3398B-6P-1-3P-E位置相比，硬件树（在控制生成器中）中PIONEER MAGNETICS PM3398B-6P-1-3P-E的位置存在差异。纠正措施1：根据CEX总线上的位置检查并纠正硬件树中PIONEER MAGNETICS PM3398B-6P-1-3P-E模块的位置，反之亦然。可能原因2：PIONEER MAGNETICS PM3398B-6P-1-3P-E模块热插拔，配置未下载到控制器。纠正措施2：确保在硬件树（在控制生成器中）中为该位置配置模块，并将配置下载到控制器。可能原因3：PIONEER MAGNETICS PM3398B-6P-1-3P-E刚刚热插入，正在配置过程中。纠正措施3：为模块初始化留出时间。
The yellow DUAL LED is illuminated when the PIONEER MAGNETICS PM3398B-6P-1-3P-E module is run in redundant configuration. The module that has the DUAL LED illuminated is the primary [active] module in a redundant configuration. Note: Even if the backup PIONEER MAGNETICS PM3398B-6P-1-3P-E module runs with errors or fails in redundant configuration, the DUAL LED is still ON in primary CPIONEER MAGNETICS PM3398B-6P-1-3P-Emodule in redundant configuration. DUAL LED is OFF The yellow DUAL LED is OFF when any of the following conditions are met: • CPIONEER MAGNETICS PM3398B-6P-1-3P-Eis run in single configuration. • CPIONEER MAGNETICS PM3398B-6P-1-3P-Eis run in redundant configuration, but it acts as a backup module. All LED's are OFF Possible Cause 1: Difference in the CPIONEER MAGNETICS PM3398B-6P-1-3P-Eposition in the Hardware Tree (in the Control Builder) as compared to the CPIONEER MAGNETICS PM3398B-6P-1-3P-Eposition on the CEX-Bus. Corrective Action 1: Check and correct the position of CPIONEER MAGNETICS PM3398B-6P-1-3P-Emodule in the Hardware Tree in accordance with the position on CEX-Bus, or vice-versa. Possible Cause 2: The CPIONEER MAGNETICS PM3398B-6P-1-3P-Emodule is hot inserted and the configuration is not downloaded to the controller. Corrective Action 2: Ensure that the module is configured in the Hardware Tree (in the Control Builder) for that position, and that the configuration is downloaded to controller. Possible Cause 3: The CPIONEER MAGNETICS PM3398B-6P-1-3P-Eis just hot inserted and it is in the process of configuration. Corrective Action 3: Allow time for the module to initialize.

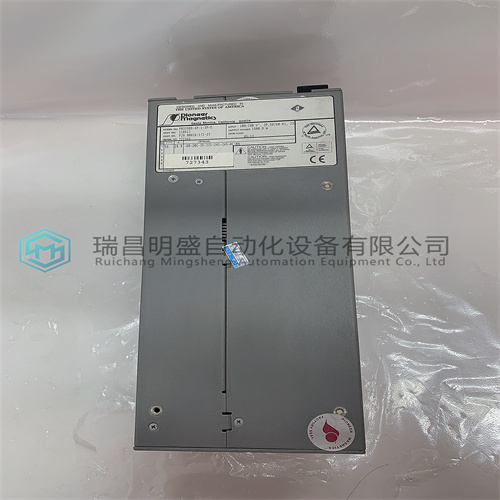

2.产 品 展 示
3.公 司 优 势 主 营 产 品
4.相 关 产 品 展 示
本篇文章出自瑞昌明盛自动化设备有限公司官网，转载请附上此链接:http://www.jiangxidcs.com
