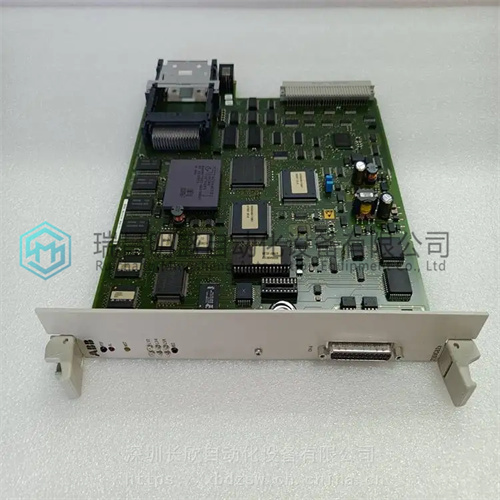

ABB 216VC62A HESG324442R13控制主板卡件
1.产 品 详 情 资 料：
ABB 216VC62A HESG324442R13启动1。如果INIT保持时间小于2.5秒，则冷重启。2.如果INIT保持超过3秒，控制器复位。如果在冗余配置中的主CPU上按下INIT，则将启动到备用CPU的切换。外部电源连接+24 V DC电源0 V冗余电源监控输入冗余电源监控输出SH B+B–外部电池连接屏蔽（螺丝连接器）电池正极（螺丝连接器）电池负极（螺丝连接）Tx Rx模块总线连接数据传输端口（光学）数据接收端口（光学的）注意：可以使用双工或单工光缆。MODULEBUS（1）提供I/O单元能力的扩展。EX-BUS提供板载通信端口的扩展。适用于ABB 216VC62A HESG324442R13 RCU链路连接器在冗余配置的主CPU和备用CPU之间提供信息和数据传输。对ABB 216VC62A HESG324442R13 RCU数据链路连接器有效提供保持备份CPU与主CPU同步所需的数据传输。RCU控制链路连接器提供角色选择和CPU标识分配。ABB 216VC62A HESG324442R13
ABB 216VC62A HESG324442R13Initiates 1. Cold Restart if INIT is held less than 2.5 seconds. 2. Controller Reset if INIT is held more than 3 seconds. If INIT is pushed on the Primary CPU in redundant configuration a switchover to the backup CPU will be initiated.External Power Supply Connection +24 V DC supply 0 V Redundant Power Supply monitoring input Redundant Power Supply monitoring input SH B+ B– External Battery ConnectionABB 216VC62A HESG324442R13Shield (Screw Connector) Battery Positive (Screw Connector) Battery Negative (Screw Connector) Tx Rx ModuleBus Connection Data Transmission Port (Optical) Data Reception Port (Optical) Note – Duplex or Simplex optical cables may be used. MODULEBUS(1) Provides expansion of I/O unit capability.CEX-BUS Provides extension of on-board communication ports. Valid for ABB 216VC62A HESG324442R13RCU Link Connector Provides information and data transfer between Primary and Backup CPU in redundant configuration. Valid for PM891 RCU Data Link Connector Provides transfer of data required to keep the backup CPU synchronized with the primary CPU. RCU Control Link Connector Provides role selection and CPU identity assignment.ABB 216VC62A HESG324442R13
