ABB 5SHY4045L0003 3BHB021400 3BHE019719R0101 GVC736BE101
1.产 品 详 情 资 料：
PROFINET IO和CI871 RETA-02以太网适配器模块和FENA-01/-11以太网适配器模块是ABB驱动器的可选设备，可将驱动器连接到PROFINET IO（PNIO）网络。该驱动器被视为PROFINET IO网络上的PNIO设备，并且与支持PROFINET IO和子插槽的所有PNIO控制器站兼容。DriveBus接口CI858 ABB驱动器可通过CI858装置连接至AC 800M，参见第171页图59和第172页图60。驱动接口可用于控制多达24个驱动器或逆变器单元。驱动器连接的主要通信功能包括：•数据集通信•广播系统时间•监控和诊断功能AC 800M和CI858之间的数据交换由八个数据集组成。驱动器连接最多可以传输8个数据集/1ms。多个驱动器的连接需要使用分支单元，从而能够构建具有物理星形拓扑的逻辑总线，请参见第172页的图60。分支单元可以是链式的。驱动器连接支持以下驱动器：•ACS 600单驱动器•ACS 600多驱动器•ACS 600晶闸管供电单元•ACS 600IGBT供电单元•ACS800产品系列•ACS 140-AC S400•DCS 600和DCS 400•ACS 6000产品系列/大型驱动器
PROFINET IO and CI871 The RETA-02 Ethernet Adapter module and FENA-01/-11 Ethernet Adapter module are optional devices for ABB drives, which enables the connection of the drive to a PROFINET IO (PNIO) network. The drive is considered as a PNIO device on the PROFINET IO network, and it is compatible with all PNIO controller stations that support PROFINET IO and sub-slots. DriveBus Interface CI858 ABB drives can be connected to the AC 800M via the CI858 unit, see Figure 59 on page 171 and Figure 60 on page 172. The drive interface can be used for controlling up to 24 drives or inverter units. Main communication functions of the drive connection are: • Dataset communication • Broadcast system time • Supervision and diagnostics functions The data exchange between the AC 800M and the CI858 consists of eight datasets. The drive connection is able to transfer at the maximum 8 datasets / 1 ms. Connection of multiple drives requires the use of a branching unit, which enables the construction of a logical bus with physical star topology, see Figure 60 on page 172. The branching units can be chained. The following drives are supported by the drive connection: • ACS 600 single drive • ACS 600 multi drive • ACS 600 thyristor supply units • ACS 600 IGBT supply units • ACS 800 product family • ACS 140-AC S400 • DCS 600 and DCS 400 • ACS 6000 product family/large drives

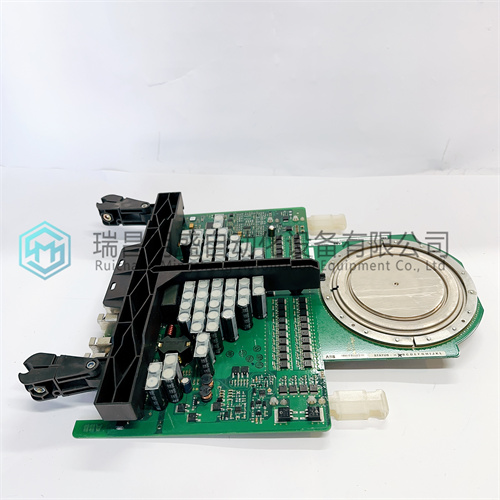

2.产 品 展 示
3.公 司 优 势 主 营 产 品
4.相 关 产 品 展 示
本篇文章出自瑞昌明盛自动化设备有限公司官网，转载请附上此链接:http://www.jiangxidcs.com
