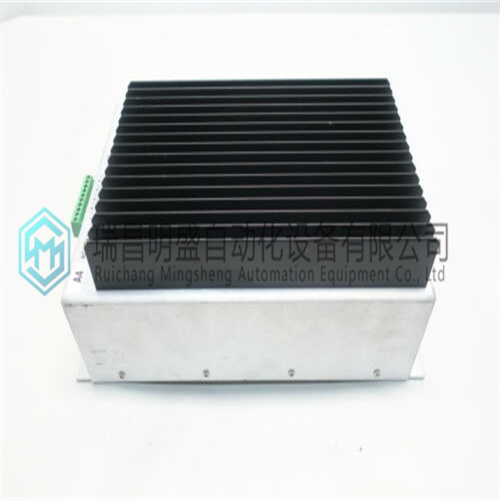

WOODWARD 9907-077电源模块
1.产 品 介 绍
品牌：WOODWARD
型号说明：WOODWARD 9907-077电源模块
优势：供应进口原装正品，专业停产配件。
公司主营特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。
2.产 品 详 情 资 料：
WOODWARD 9907-077安装PROFIBUS DP接口CI851/TP851 CI851由处理器单元通过CEX总线供电，因此不需要额外的外部电源。使用以下步骤安装CI851/TP851：1。将装置安装到DIN导轨上，请参见第65页的“将AC 800M装置安装到DIN导轨上”和第78页的“以单一配置安装WOODWARD 9907-077处理器装置”。2.在PROFIBUS DP电缆上安装连接器。将电缆屏蔽连接到连接器内的接地端子，通过CI581将屏蔽接地。建议使用带有可切换内置总线终端的连接器。3.将PROFIBUS DP电缆连接到基板上的触点。4.如果这是在PROFIBUS DP电缆的末端，则打开总线终端。否则，保持总线终端关闭。PROFIBUS DP连接PROFIBUS DP电缆通过位于WOODWARD 9907-077上的9针凹形D型连接器连接。有关现场总线和推荐的认证现场总线设备和组件的安装，请参阅现场总线文档和附录C，推荐组件。PROFIBUS DP必须与屏蔽双绞线连接
Installing the PROFIBUS DP Interface, WOODWARD 9907-077The CI851 is powered from the processor unit via the CEX-Bus and requires therefore no additional external power source. Use the following procedure to install the CI851/TP851: 1. Mount the unit onto the DIN-rail, see Mounting AC 800M Units onto DIN-Rail on page 65 and Installing the PM86x/TP830 Processor Unit in Single Configuration on page 78.WOODWARD 9907-0772. Install a connector on the PROFIBUS DP cable. Connect the cable screen to the ground terminal within the connector to ground the screen via CI581. A connector with a switchable built-in bus termination is recommended. 3. Connect the PROFIBUS DP cable to the contact on the baseplate. 4. If this is at the end of the PROFIBUS DP cable, switch the bus termination ON. Otherwise leave the bus termination switched OFF. PROFIBUS DP Connection The PROFIBUS DP cable is connected via the 9-pin female D-type connector located on TP851.For installation of the fieldbus and recommended certified fieldbus devices and components, see fieldbus documentation and Appendix C, Recommended Components. The PROFIBUS DP must be connected with shielded twisted pair cablesWOODWARD 9907-077
