ENTEK EC6652径向振动监测仪
1.产 品 介 绍
品牌：ENTEK
型号说明：ENTEK EC6652径向振动监测仪
优势：供应进口原装正品，专业停产配件。
公司主营特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。
2.产 品 详 情 资 料：
ENTEK EC6652在没有BC810的情况下安装CEX总线用于将通信接口连接到处理器单元的CEX总线位于处理器单元底板（TP830）的左侧。总线终端装置必须始终安装在CEX总线上的最后一个装置上，如第80页图25所示。每个PM8xx/TP830处理器单元都配有TB850公CEX总线终端单元。但是，如果配置需要使用TK850延长电缆，如第81页图26所示，则需要TB851母CEX总线终端装置，并且必须安装到序列中的最后一个基板上。每个ENTEK EC6652延长电缆均配有TB851母CEX总线终端装置。TK850 CEX总线延长电缆任何一条CEX总线中只能使用一条TK850 CEX总线延长电缆。电缆长度：0.7米（2.3英尺）。安装CEX总线互连单元BC810/TP857。BC810单元必须直接安装到处理器单元底板上的CEX总线上。然后将SM810（如果使用）和通信接口安装到BC810上的CEX总线上，并用TB850公CEX总线终端单元在每一端端接。两个BC810与互连电缆TK851连接。ENTEK EC6652
Installing the CEX-Bus without BC810 The CEX-Bus, used for connection of communication interfaces to the processor unit, is located on the left-hand side of the processor unit baseplate (TP830). A bus termination unit must always be fitted to the last unit on the CEX-Bus, as shown in Figure 25 on page 80. A TB850 male CEX-Bus termination unit is supplied with each ENTEK EC6652 processor unit. However, should the configuration require the use of a TK850 extension cable, as shown in Figure 26 on page 81, then a TB851 female CEX-Bus termination unit is required and must be fitted to the last baseplate in the sequence. A TB851 female CEX-Bus termination unit is supplied with each TK850 extension cable. TK850 CEX-Bus Extension Cable Only one TK850 CEX-Bus extension cable may be used in any one CEX-Bus. Cable length: 0.7 m (2.3 ft).Installing the CEX-Bus Interconnection Unit BC810/TP857 The BC810 units must be mounted directly to the CEX-Bus on the processor unit base plate. The SM810, if used, and communication interfaces are then mounted to the CEX-Bus on the BC810, and terminated in each end with TB850 male CEX-Bus termination unit. The two BC810 are connected with the interconnection cable TK851.ENTEK EC6652

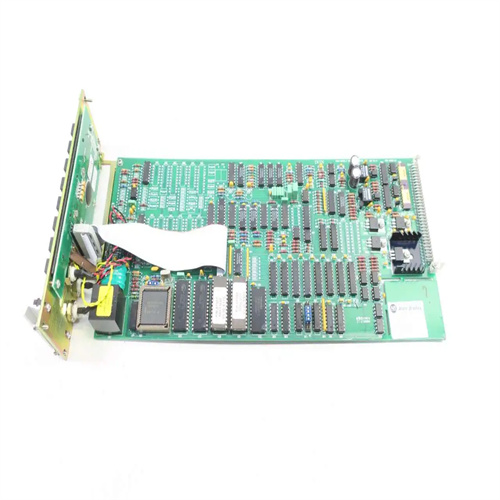

3.产 品 展 示
4.公 司 优 势 主 营 产 品
5.相 关 产 品 展 示
