WOODWARD 5466-074工控控制卡件
1.产 品 介 绍
品牌：WOODWARD
型号说明：WOODWARD 5466-074工控控制卡件
优势：供应进口原装正品，专业停产配件。
公司主营特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。
2.产 品 详 情 资 料：
WOODWARD 5466-074不允许在带电运行的系统中操纵CEX总线底板。在更换或拆除基板之前，必须拆除该段上的所有CEX模块。使用以下步骤安装基板，包括单元：1。将锁定装置旋转至打开位置（1），将装置底板后部的上钩牢固地钩住DIN导轨的上边缘，WOODWARD 5466-074然后轻轻地将底板完全卡入安装位置。2.将锁定装置旋转到滑动位置（2），沿DIN导轨将装置滑动到所需的安装位置，并使用连接器插头和插座将其轻轻地连接到相邻的装置基板上。为防止损坏销，确保装置互连时基板插头和插座完全对齐。在任何情况下都不要过度用力！互连完成后，顺时针旋转锁定装置至锁定位置（3）。基板现在已完全锁定到位，并与DIN导轨有良好的接地连接。WOODWARD 5466-074
It is not allowed to manipulate CEX bus baseplates in a powered and running system. Before changing or removing a baseplate, all CEX modules on that segment must be removed.Use the following procedure to mount the baseplates, complete with units:WOODWARD 5466-0741. Rotate the locking device to the OPEN position (1), hook the upper hook at the rear of the unit baseplate securely over the upper edge of the DIN-rail and gently snap the baseplate fully into the mounting position. 2. Rotate the locking device to the SLIDE position (2), slide the unit along the DIN-rail to the desired mounting position and using the connector plugs and sockets gently attach it to the adjacent unit baseplate.To prevent damage to the pins, be sure the baseplate plugs and sockets are fully aligned as the units interconnect. Under no circumstances use excessive force!When interconnection is complete, rotate the locking device clockwise to the LOCKED position (3). The baseplate is now fully locked into position and has a good ground connection to the DIN-rail.WOODWARD 5466-074

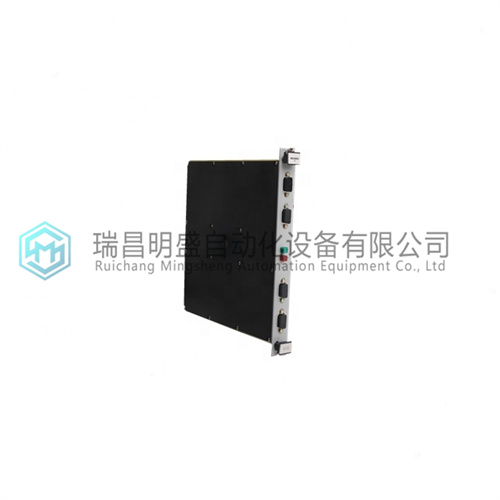

3.产 品 展 示
4.公 司 优 势 主 营 产 品
5.相 关 产 品 展 示
