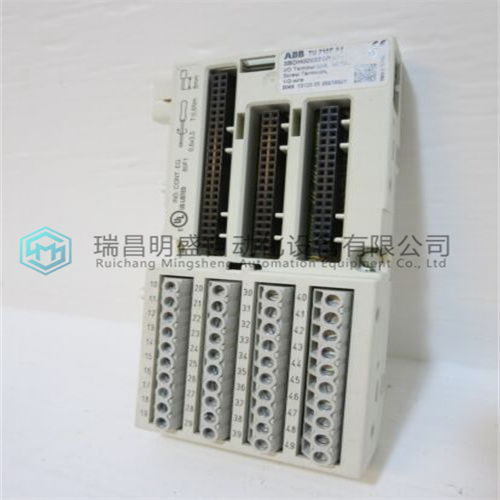

ABB TU715F 3BDH000378R0001控制器
1.产 品 介 绍
品牌：ABB
型号说明：ABB TU715F 3BDH000378R0001控制器
优势：供应进口原装正品，专业停产配件。
公司主营特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。
2.产 品 详 情 资 料：
如本手册前面章节所述，ABB TU715F 3BDH000378R0001的两个串行端口之一（内部端口A，前面板上的串行端口1/CONSOLE）是EIA-232-D DCE专用端口。第二个端口（内部端口B，前面板上的串行端口2）可以通过串行接口模块配置为EIA-232-D DCE/DTE、EIA-530 DCE/DTT端口、EIA-485端口或EIA-422 DCE/DTD端口。ABB TU715F 3BDH000378R0001使用Zilog Z85230串行端口控制器来实现两个串行通信接口。每个接口支持CTS、DCD、RTS和DTR控制信号以及TxD和RxD发送/接收数据信号以及TxC/RxC同步时钟信号。Z85230支持同步（SDLC/HDLC）和异步协议。ABB TU715F 3BDH000378R0001硬件支持110B/sec至38.4KB/sec的异步串行波特率。EIA-232-D标准定义了该串行接口的电气和机械方面。该接口采用不平衡（单端）信令，通常与DB25连接器一起使用，但有时也使用其他连接器类型（例如DB9和RJ45）。
As described in previous chapters of this manual, one of theABB TU715F 3BDH000378R0001s two serial ports (port A internally, SERIAL PORT 1/CONSOLE on the front panel) is an EIA-232-D DCE port exclusively. The second port (port B internally, SERIAL PORT 2 on the front panel) can be configured via serial interface modules as an EIA-232-D DCE/DTE, an EIA-530 DCE/DTE port, an EIA-485 port, or an EIA-422 DCE/DTE port. The ABB TU715F 3BDH000378R0001 uses a Zilog Z85230 serial port controller to implement the two serial communications interfaces. Each interface supports CTS, DCD, RTS, and DTR control signals as well as the TxD and RxD transmit/receive data signals, and TxC/RxC synchronous clock signals. The Z85230 supports synchronous (SDLC/HDLC) and asynchronous protocols. The MVME162FX hardware supports asynchronous serial baud rates of 110B/sec to 38.4KB/sec.EIA-232-D Connections The EIA-232-D standard defines the electrical and mechanical aspects of this serial interface. The interface employs unbalanced (single-ended) signaling and is generally used with DB25 connectors, although other connector styles (e.g., DB9 and RJ45) are sometimes used as well.ABB TU715F 3BDH000378R0001
