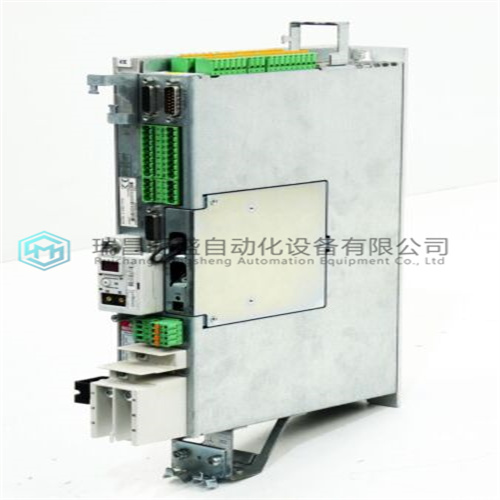

REXROTH FWA-ECODR3-SMT-01VRS-MS伺服驱动器
1.产 品 介 绍
品牌：REXROTH
型号说明：REXROTH FWA-ECODR3-SMT-01VRS-MS伺服驱动器
优势：供应进口原装正品，专业停产配件。
公司主营特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。
2.产 品 详 情 资 料：
REXROTH FWA-ECODR3-SMT-01VRS-MS注：某些版本的控制器（组件编号为01-W3960Bxxx的控制器）可能具有J24工厂硬接线，位于8MHz位置，J2引脚1和2之间的缝钉隐藏在IP模块下方。将出厂设置更改为32MHz设置需要移除引脚1和2之间的缝钉，并在引脚2和3之间安装跳线。IP总线选通头（J25）一些IP总线实现使用选通*信号（引脚46）作为来自IP2芯片的IP模块的输入。其他IP接口要求断开选通。REXROTH FWA-ECODR3-SMT-01VRS-MS通过在J25引脚1和2之间安装跳线，可编程频率源连接到IP总线上的Strobe*信号。有关更多信息，请参阅《MVME162FX嵌入式控制器程序员参考指南》中的IP2芯片编程模型。如果从J25中移除跳线，则选通线路可用于IP模块之间的边带类型的消息传递。Strobe*信号未连接到板上的任何有源器件，但可以连接到上拉电阻器。REXROTH FWA-ECODR3-SMT-01VRS-MS
Note Some versions of the controller (those identified with assembly number 01-W3960Bxxx) may have J24 factoryhardwired in the 8MHz position with a staple between J2 pins 1 and 2, hidden beneath an IP module. Changing the factory setting to the 32MHz setting requires removal of the staple between pins 1 and 2, and installation of a jumper between pins 2 and 3.REXROTH FWA-ECODR3-SMT-01VRS-MSIP Bus Strobe Select Header (J25) Some IP bus implementations make use of the Strobe∗ signal (pin 46) as an input to the IP modules from the IP2 chip. Other IP interfaces require that the strobe be disconnected. With a jumper installed between J25 pins 1 and 2, a programmable frequency source is connected to the Strobe∗ signal on the IP bus. Refer to the IP2 chip programming model in the MVME162FX Embedded Controller Programmer’s Reference Guide for additional information. If the jumper is removed from J25, the strobe line is available for a sideband type of messaging between IP modules. The Strobe∗ signal is not connected to any active devices on the board, but it may be connected to a pull-up resistor.REXROTH FWA-ECODR3-SMT-01VRS-MS
