ABB RFO810控制模块
1.产 品 介 绍
品牌：ABB
型号：ABB RFO810
产品说明：控制模块
特点：模块/卡件，控制器，触摸屏，伺服驱动器
优势：供应进口原装正品，专业停产配件。
快递方式：国内顺丰、德邦、京东快递包邮，按照实际报价货期发货
2.产 品 详 情 资 料：
ABB RFO810控制模块电缆功能这些电缆用于配备TBQC I/O面板适配器的16点I/O模块。每根电缆的两端都有一个直的24针母接头。每条电缆提供从模块到安装在接线板组件上的连接器的连接。这些电缆采用针对针接线（即，针A1到针A1，针A2到针A2等）。需要一个I/O面板组件ABB RFO810，该组件卡在模块上，代替模块的标准20针接线板组件。有五个不同的接线板可供各种I/O模块使用此附件（有关TBQC组件的详细信息，请参见附录H）。连接器深度下图显示了当此电缆连接到模块时，PLC前面所需的空间。安装PLC的机柜的深度应考虑到此连接器增加的深度。这些电缆取代了过时的I/O接口电缆ABB RFO810。这些替换电缆具有直角连接器，以减少PLC前面所需的间隙空间。这些替换电缆使用与旧电缆相同的引脚。
Function of cable These cables are used with 16-point I/O modules that are equipped with a TBQC I/O faceplate adapter. Each cable has a straight 24-pin female connector on both ends. Each cable provides a connection from the module to a connector mounted on a terminal block assembly. These cables are wired pin-to-pin (that is, pin A1 to pin A1, pin A2 to pin A2, etc.). An I/O faceplate assemblyABB RFO810 is required which snaps onto the module in place of the module’s standard 20-pin terminal block assembly. Five different terminal blocks are available to allow a variety of I/O modules to use this accessory (see Appendix H for details on the TBQC assemblies).Connector Depth The following illustration shows the space required in front of the PLC when this cable is connected to a module. The depth of the cabinet that the PLC is mounted in should allow for the depth added by this connector.These cables replace obsolete I/O Interface cable ABB RFO810 These replacement cables have right-angle connectors to reduce the clearance space required in front of the PLC. These replacement cables use the same pin-outs as the obsolete cables.ABB RFO810

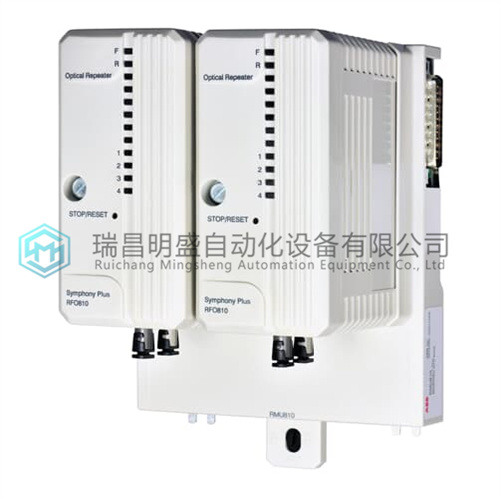

3.产 品 展 示
