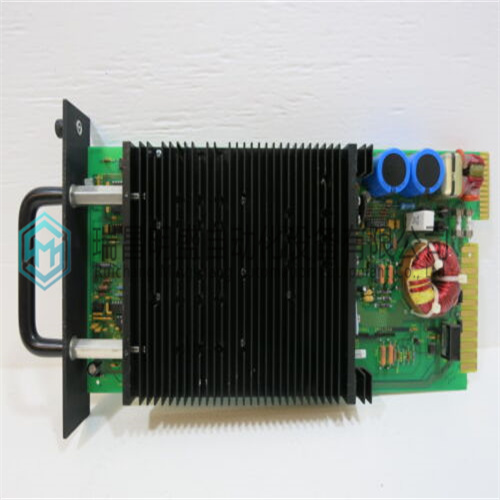

ABB IPFLD48电力系统模块
品牌：ABB
型号：ABB IPFLD48
产品说明：电力系统模块
ABB IPFLD48电力系统模块中文资料：
ABB IPFLD48电力系统模块试图将模块推入不正确的插槽类型会损坏模块和/或基板。CPU基板有两种基本类型的CPU基板，嵌入式和模块化。嵌入式类型满足了良好的低成本PLC的需求，但缺乏模块化系统的功率、可扩展性和通用性。嵌入式CPU基板：这种类型的CPU和内存集成电路芯片焊接在背板电路板上。ABB IPFLD48其所有编号的插槽（包括插槽1）都是相同的类型，它们只接受I/O模块和标准选项模块。模块化CPU底板：这种类型的底板上没有CPU和内存芯片。相反，它在插槽1中有一个用于插入式CPU模块的连接器，该模块在内部电路板上包含CPU和内存芯片。插槽1连接器是一种特殊类型，仅与CPU上的连接器和一些特殊选项模块配合。ABB IPFLD48
英文资料
Attempts to force a module into an improper slot type will damage the module and/or the baseplate. Modules will mount in the correct slot easily and with a minimum of force.CPU Baseplates There are two basic kinds of CPU baseplates, embedded and modular. The embedded types fulfill the need for a good low cost PLC, but lack the power, expandability, and versatility of the modular systems. Embedded CPU Baseplate: This type has CPU and memory integrated circuit chips soldered to its backplane circuit board. All of its numbered slots, including slot 1, are of the same type, and they accept only I/O modules and standard options modules. Modular CPU Baseplate: This type does not have CPU and memory chips on its backplane. Instead, it has a connector in Slot 1 for a plug-in CPU module, which contains the CPU and memory chips on an internal circuit board. The slot 1 connector is a special type that only mates with connectors on CPUs and a few special option modules.ABB IPFLD48
