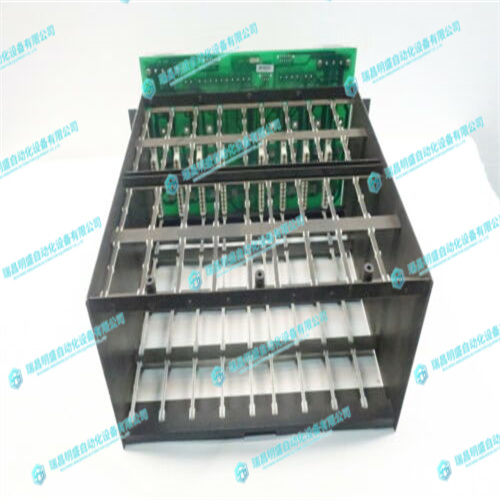

ABB IPCHS01底盘模块
ABB IPCHS01底盘模块中文资料：
ABB IPCHS01底盘模块带接线板的I/O模块。某些模块使用安装在机柜面板上的接线板。这包括所有32点模块，如果安装了可选的接线板快速连接组件，还可以包括其他I/O模块。使用提供的电缆将接线板连接到模块上的连接器。14.将信号线（开关、传感器、螺线管等）连接到接线板或接线板/接线板。如果接线到端子板，如果需要，可以将其拆下以便于接线。请参阅“卸下模块端子板”一节。完成I/O端子板的接线后（如果使用了，如果为了方便接线而将其拆下），ABB IPCHS01请将其重新安装在模块上，小心将每个端子板与正确的模块匹配。基板类型A基板由三个主要部分组成：（1）安装在（2）金属背板上的电路板，（3）塑料盖。电路板称为“背板”，包含用于插入式模块的插座。金属背板有四个用于安装基板的孔，以及用于安装模块的固定器ABB IPCHS01
英文资料
I/O Modules with terminal blocks. Some modules use terminal blocks that mount to the enclosure panel. This includes all 32-point modules and, can include other I/O modules if they are fitted with the optional Terminal Block Quick Connect Assembly. Connect the terminal blocks to the connectors on the modules with the provided cables. 14. Connect the signal (switches, sensors, solenoids, etc.) wires to the terminal boards, or terminal blocks/strips. If wiring to terminal boards, these can be removed for ease of wiring, if desired. See the section “Removing a Module’s Terminal Board.” 15. When finished wiring the I/O terminal boards (if used and if you removed them for ease of wiring), re-install them on the modules, being careful to match each one with the correct module.Baseplate Types A baseplate is composed of three main parts: (1) a circuit board mounted to (2) a metal back-plate with (3) a plastic cover. The circuit board, called the “backplane,” contains sockets for plug-in modules. The metal back-plate has four holes for mounting the baseplate, and retainers for mounting the modulesABB IPCHS01
