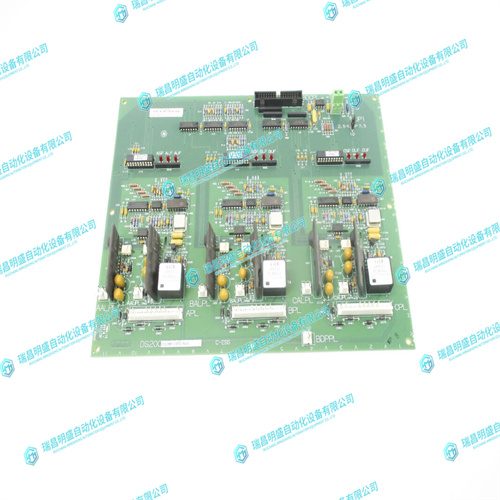

GE DS200IIBDG1AGA驱动板
存储器映射（1048、104A、104C）中校正的电价单位表7-10校正的相位CT主要默认值（addr 1050）表7-10存储器映射中校正的模拟输出默认值（1060）表7-100存储器映射（10F4）中校正脉冲输出范围表7-10存储映射中校正功率因数拾取电平默认值（1179）在存储器映射中添加事件记录器标题（从12C0开始）表7-10-正确用户存储器映射（0180-01F7）中的映射范围表7-11（代码）F39和F40的更改数据格式描述表7-3广播命令示例中纠正的从地址表8-2注意显示二进制输入变化点6到10不包括表8-3在点0和9-27上创建的脚注表8-4 DNP死区值的纠正表8-4重新编号的模拟输入从0到163文本表8-2删除（不支持的项目）应用程序注释PQMAN01：事件记录器应用程序当事件触发时，事件记录器将所有在线数据存储在非易失性存储器的一部分中。PQM将以下任何情况定义为事件：•模拟输入备用报警•模拟输入备选报警清除•模拟输入主报警•模拟输出主报警清除
Corrected Tariff units in memory map (1048, 104A, 104C) Table 7-10 Corrected Phase CT Primary default (addr 1050) Table 7-10 Corrected Analog Output default in memory map (1060) Table 7-10 Corrected Pulse Output Range in memory map (10F4) Table 7-10 Corrected Power Factor pickup level defaults in memory map (1179) Added Event Recorder heading in memory map (starting 12C0) Table 7-10 Correct User map ranges in memory map (0180-01F7) Table 7-11 Changed Data Format descriptions for (Codes) F39 & F40 Table 7-3 Slave address corrected in Broadcast Command example Table 8-2 Note to show Binary Input Change Points 6 to 10 not included Table 8-3 Footnote created on points 0 and 9-27 Table 8-4 Corrections to DNP Deadband Values Table 8-4 Renumbered Analog Inputs from 0 to 163 Tables 8-2 on Text deletions (unsupported items) APPLICATION NOTE PQMAN01: EVENT RECORDER APPLICATION The Event Recorder stores all online data in a section of non-volatile memory when triggered by an event. The PQM defines any of the following situations as an event: • Analog Input Alternate Alarm • Analog Input Alternate Alarm Clear • Analog Input Main Alarm • Analog Input Main Alarm Clear
