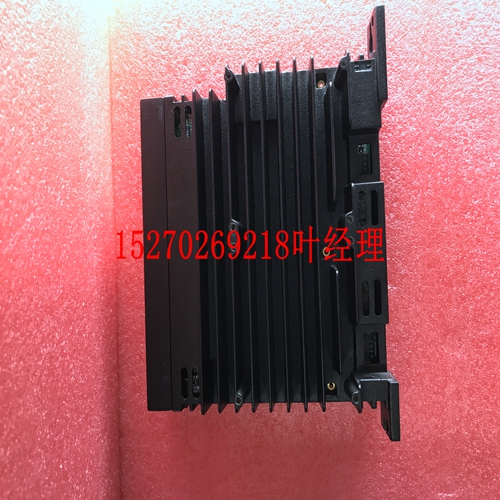

IS200EXTBG1A工控模块,模块备件
制动等级0.1%0.0～20.0%8.0%电子热18电机额定电流保护1%50～100%（0-200）100%（4）19多功能输入端子1功能2多功能输入连接点20多功能输入端2功能1：点动2:Sp1 3：紧急停止4：外部基座5：复位6:Sp2 5（4）多功能输出21多功能输出端子1：操作2：达到频率3：故障3反向指令22 0:REV运行已启用1:REV运行禁用1 0~1 0瞬时功率损失23 0:已启用1:已禁用1 0~10自动重启24自动重启次数1 0~5 0出厂设置25 010：常数初始化版本故障跟踪30最后3个故障记忆（1）指示此参数可在运行模式下进行调整（2）请参阅Fn_25（3） 如果设置范围大于100，则设置单位变为1。（4） 仅适用于CPU版本从1.9（检查功能F_29）起的驱动器（5）仅适用于具有CPU版本从2.1（检查功能E_29）起25 3.3的驱动器。参数功能说明Fn_00出厂调整参数。不要改变。Fn_01：加速时间=0.1至999秒Fn_02：减速时间=0.1到999秒1。加速/减速时间计算公式：数字控制面板上的Accelerat rse按钮，可以通过更改Fn_04设置来调整前进/后退功能。注：当Fn22=1：反向禁用时，Fn_04不能设置为1。然后键盘指示将显示“LOC”。Fn_05:V/F模式设置=1至6调整Fn_05=1-6以选择六个固定V/F模式中的一个。（参考下表）规格50 Hz系统应用一般应用高启动扭矩减小扭矩Fn_5 1 2 3 V/F模式规格cy下限=0至120Hz或200Hz（*）（*）仅适用于CPU版本从1.9（检查功能F_29）注意：如果Fn_07=0 Hz，且频率指令等于0Hz，则逆变器将以0速度停止。如果Fn_07>0 Hz，且频率指令≤Fn_07，则逆变器将根据Fn_07设置输出。Fn_08:sp1频率=1至120Hz或200Hz（*）Fn_09:点动频率=1至10Hz或200MHz（*）（*）仅适用于CPU版本为1.9（检查功能F_29）1的情况。当Fn_19或Fn_20＝2且多功能输入端子接通时，逆变器以sp1频率（Fn_08）2工作。当Fn_19或Fn_20=1且多功能输入端子打开时，逆变器以点动频率（Fn_09）3运行。读取频率设置的优先级为Jog>Sp1>键盘设置或外部频率信号内部频率信号（注意）频率设置信号Fn_06（频率上限）Fn_07（频率下限）28 Fn_10：操作控制=0：键盘=1：外部端子TM2注意：当Fn_10=1（外部操作控制）时，启用键盘上的紧急停止。当Fn_10=1时，请参考F_23/24的描述，以避免对人和机器造成损害。Fn_11：频率控制=0：通过键盘设置频率指令=1：通过TM2上的VR或模拟信号设置频率指令（0至10V/0-20mA）=2：通过TM1上的VR和模拟信号设置（4-20mA）注1：当Jog频率或Sp1频率打开时，频率由Sp1速度设置▲▼ 键盘上的按钮被禁用。Sp1连接断开后将恢复原始设置。注意2：在微动功能触点闭合期间，键盘控件保持休眠状态，直到微动触点连接重新打开。时间Hz F_10=1或=0 F_09=10Hz F_19=1 F_08=30Hz F_20=2 ON OFF OFF ON OFF OFF OFF ON ON OFF 29 Fn_12：载波频率=1至5或10（*）（*）仅适用于CPU版本从1.9（检查功能F_29）起且负载较低的驱动器。尽管IGBT型逆变器可以在其运行期间提供低的可听噪声水平，但高载波频率的切换可能会干扰外部电子部件（或其他控制器），甚至导致电机振动。
braking level 0.1% 0.0 ~ 20.0% 8.0% Electronic thermal 18 Protection on motor rated current 1% 50 ~ 100% (0-200) 100% (4) 19 Multifunction input terminal 1 function 2 Multifunction input connection point 20 Multifunction input terminal 2 function 1: Jog 2: Sp1 3: Emergency stop 4: External Base Block 5: Reset 6: Sp2 5 (4) Multi-function output 21 Multifunction output terminal 1: Operating 2: Frequency reached 3: Fault 3 Reverse instruction 22 0: REV run enabled 1: REV run disabled 1 0 ~ 1 0 Momentary power loss 23 0: enabled 1: disabled 1 0 ~ 1 0 Auto restart 24 Number of Auto-restart times 1 0 ~ 5 0 Factory setting 25 010: Constants initializat version Fault trace 30 Last 3 malfunction memory (1) Indicate this parameter can be adjusted during running mode (2) Please refer to Fn_25 (3) If the setting range is above 100, the setting unit becomes 1. (4) Only for drives with CPU version from 1.9 (check function F_29) (5) Only for drives with CPU version from 2.1 (check function F_29) 25 3.3. Parameter function description Fn_00 Factory adjustment parameter. Do not change. Fn_01 : Accelerate time = 0.1 up to 999 sec Fn_02 : Decelerate time = 0.1 up to 999 sec 1. Accelerate/decelerate time calculation formula: Accelerat rse push button on the digital control panel, it is possible to adjust forward/reverse function by changing Fn_04 setting. Note: When Fn_22 =1: Reverse disabled, the Fn_04 can not be set to 1. Then keypad indication would display “LOC”. Fn_05 : V/F pattern setting = 1 up to 6 Adjust Fn_05 = 1-6 to select one of six fixed V/F pattern. (refer to following tables) Specification 50 Hz system Application General application High starting torque Decreasing torque Fn_5 1 2 3 V/F pattern Specification cy lower limit = 0 up to 120Hz or 200Hz(*) (*) Only for with CPU version from 1.9 (check function F_29) Note: If Fn_07 = 0 Hz, and the frequency instruction is equal to 0Hz, the inverter will stop at 0 speed. If Fn_07 > 0 Hz, and the frequency instruction ≦ Fn_07, the inverter will output according to Fn_07 setting. Fn_08 : sp1 frequency = 1 up to 120Hz or 200Hz(*) Fn_09 : jog frequency = 1 up to 10Hz or 200Hz(*) (*)Only for with CPU version from 1.9 (check function F_29) 1. When Fn_19 or Fn_20 = 2 and multifunction input terminal is ON, the inverter operate at sp1 frequency (Fn_08) 2. When Fn_19 or Fn_20 = 1 and multifunction input terminal is ON, the inverter operate at jog frequency (Fn_09) 3. The priority of reading frequency setting is Jog > Sp1 > Keypad setting or external frequency signal Internal frequency signal (NOTE) Frequency setting signal Fn_06 (freq. Upper limit) Fn_07 (freq. Lower limit) 28 Fn_10 : Operation Control = 0 : Keypad = 1 : External terminal TM2 Note: When Fn_10=1 (external operation control), emergency stop on the keypad is enabled. When Fn_10=1, please refer to the descriptions of F_23/24, in order to avoid the damage to the human and the machine. Fn_11 : Frequency control = 0 : Frequency instruction is setup by keypad = 1 : Frequency instruction is setup by VR or analog signal on TM2 ( 0 up to 10V / 0-20mA ) = 2 : Frequency instruction is setup by VR or analog signal on TM2 ( 4-20mA ) Note 1: When Jog frequency or Sp1 frequency is switched on, the frequency is setup by Sp1 speed, the ▲▼ buttons on the keypad is disabled. Original setting will be restored after Sp1 connection is OFF. Note 2: During the contact closure of the jog function, the keypad control remains in a sleep state until the jog contact connection is re-opened. Time Hz F_10=1 or =0 F_09=10Hz F_19=1 F_08=30Hz F_20=2 ON OFF OFF ON OFF ON OFF OFF ON OFF 29 Fn_12 : carrier frequency = 1 up to 5 or up to 10(*) (*) Only for drives with CPU version from 1.9 (check function F_29) with low load. Although an IGBT TYPE inverter can provide a low audible noise level during its operation, it is possible that the switching of the high carrier frequency may interfere with external electronic components (or other controllers) or even cause vibration in the motor.
