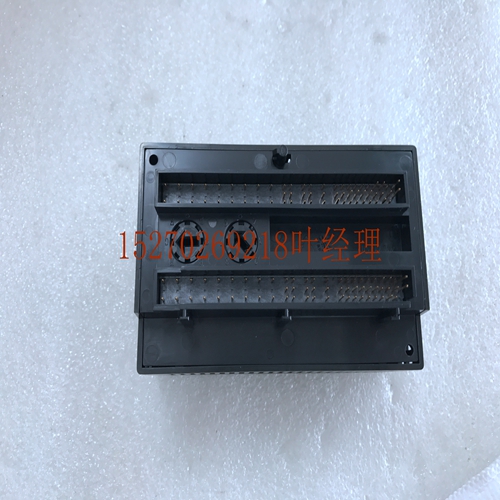

IS200SRLYH2A模块控制器,DCS工控模块备件
执行CPU788或CPU789的GMR系统软件所需的典型时间如下所示。在此示例中，每个PLC中有六个总线控制器。表格大小：表格大小：已投票%I=64已投票%I=256已投票%AI=64已表决%AI=256逻辑%Q=64逻辑%Q=256扫描时间贡献=CPU788/789:79 ms CPM790:22 ms扫描时间贡献=CPU788/789:88 ms CPM790:124 ms执行系统GMR系统软件的扫描时间贡献可能或多或少取决于您的表格大小配置。此外，当GMR系统软件对CPU子系统和子系统进行诊断时，在单次扫描期间，CPU788和789的时间变化+/-10ms（CPM790为+/-2ms）。典型的GMR CPU总扫描时间范围从22毫秒到300毫秒（或更高），这取决于应用程序的配置、大小和应用程序中使用的指令。要估算扫描期间发生的其他操作的总扫描时间和/或扫描时间贡献，请参考Series 90-70可编程控制器参考手册（GFK-0265）附录a：“CPU性能数据”。该附录包括帮助您估算自己系统扫描时间的工作表。如果您使用这些工作表估计总扫描时间，则必须单独添加与执行GMR系统软件相关的扫描时间（如上所述）。Genius总线扫描时间GMR系统使用Genius作为其输入和输出子系统。Genius块在串行通信网络上运行，该网络通过Genius总线控制器连接到GMR CPU子系统。这种串行令牌传递类型的网络有其自己的扫描时间，与上面讨论的CPU扫描时间独立且异步。此“Genius总线扫描时间”是Genius网络上所有设备在网络上通信一次所需的时间。如果要放在总线上的所有设备（及其配置）都是已知的，则可以估计Genius总线扫描时间。典型的Genius总线扫描时间范围从5毫秒到60毫秒（或更高），具体取决于配置。有关估计Genius总线扫描时间的更多详细信息，请参阅GEK-90486-1，Genius系统和通信用户手册，第9章：“定时注意事项”。响应时间如果需要输入、输出或总输入到输出响应时间估计，则必须考虑CPU和Genius总线扫描时间。有关估计响应时间的详细信息，请参阅GEK90486-1《Genius系统和通信用户手册》第9章：“定时注意事项”。B附录估算扫描时间T M R G M RTM GFT-177A C-1本附录描述了配置和编程GMR系统所需的设备。通用计算机要求用于GMR的配置和编程软件需要IBM或IBM兼容的个人计算机。运行Logicmaster软件的最低要求是：n Intel 80386或更高微处理器。n具有至少4 MB可用空间的硬盘。n至少2 MB RAM内存（请参阅右侧的附加信息）。n MS-DOS 5.0版或更高版本。支持单色和彩色显示器。打印机要求出于程序和配置文档的目的，建议使用可选打印机。Logicmaster 90-70软件的计算机内存要求运行Logicmaster 90-90软件的特定内存要求取决于其版本。n用于GMR的Logicmaster 90-70软件6.5版需要：；o至少545 K（558080）字节的可用常规RAM内存可运行。o至少1024个内存（LIM EMS 3.2或更高版本）。
Typical times required for the execution of the GMR system software for either the CPU788 or CPU789 are shown below. In this example, there are six bus controllers in each PLC. With Table sizes of: With Table sizes of: Voted %I = 64 Voted %I = 256 Voted %AI = 64 Voted %AI = 256 Logical %Q = 64 Logical %Q = 256 Scan Time Contribution = CPU788/789: 79 ms CPM790: 22 ms Scan Time Contribution = CPU788/789: 88 ms CPM790: 24 ms The scan time contribution for the execution of the GMR system software for your system could be more or less depending on the table sizes you configure. Also this time varies by +/– 10ms for the CPU788 and 789 (+/- 2ms for the CPM790) during single scans when the GMR system software performs diagnostics on the CPU subsystem and subsystems. Typical GMR CPU total scan times range from 22 milliseconds to 300 milliseconds (or higher) depending on configuration, size of the application program and instructions used in the application program. To estimate the total scan time and/or scan time contributions for the other operations that take place during a scan please refer to the Series 90-70 Programmable Controller Reference Manual (GFK-0265) Appendix A: “CPU Performance Data.” That appendix includes worksheets to assist you in estimating scan time for your own system. If you are estimating total scan time using these worksheets, you must add the scan time associated with executing the GMR system software (as noted above) separately. Genius Bus Scan Time The GMR system utilizes Genius as its input and output subsystem. Genius blocks operate on a serial communications network that interfaces to the GMR CPU subsystem through Genius bus controllers. This serial token–passing type of network has its own scan time which is separate and asynchronous from the CPU scan time discussed above. This “Genius bus scan time” is the time required for all devices on a Genius network to communicate on the network one time. The Genius bus scan time can be estimated if all of the devices (and their configurations), to be put on a bus are known. Typical Genius bus scan time range from 5 milliseconds to 60 milliseconds (or higher) depending on the configuration. Please refer to GEK-90486-1, the Genius System and Communications User’s Manual, Chapter 9: “Timing Considerations” for further details on estimating Genius Bus scan times. Response Time If input, output or total input–to–output response time estimates are desired, both the CPU and Genius Bus scan times must be taken into account. Please refer to GEK90486-1, the Genius System and Communications User’s Manual, Chapter 9: “Timing Considerations”, for details on estimating response times. B Appendix Estimating Scan Time T M R G M RTM GFT-177A C-1 This appendix describes equipment needed to configure and program a GMR system. General Computer Requirements The configuration and programming software used for GMR require an IBM or IBM compatible personal computer. Minimum requirements for running the Logicmaster software are: n An Intel 80386 or higher microprocessor. n A hard disk with at least 4 Megabytes of space available. n At least 2 megabytes of RAM memory (see additional information at right). n MS-DOS Version 5.0 or later. Both monochrome and color monitors are supported. Printer Requirements Use of an optional printer is recommended for program and configuration documentation purposes. Computer Memory Requirements for the Logicmaster 90-70 Software Specific memory requirements for running the Logicmaster 90-70 software depend on its version. n The Release 6.5 version of Logicmaster 90-70 software for GMR requires; o A minimum of 545 K (558,080) bytes of available conventional RAM memory to run. o At least 1024 Memory (LIM EMS 3.2 or higher).
