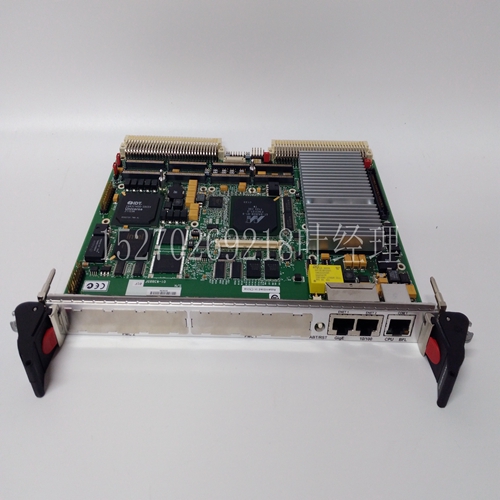

MVME162-201系统模块卡件
标记地板上的边缘装饰件固定位置，使装饰件与垫重叠。以装饰件上的孔为导向，标记并钻孔地板如果需要，安装塞子。清洁地板，并使用沉头螺钉将垫子和边缘装饰件固定到位，以适应应用。安装周边装饰件时，确保装饰件和地板之间或顶部和底部之间取决于装饰件类型没有任何电线被夹住或压碎。如果电线可能被夹住或拉出，应在电线离开周边装饰件的地方使用应变消除夹。所有电线应采用适当的导管进行保护。如果可能，接线套管不应穿过可能会绊倒的地板区域。如果无法避免这种情况，接线套管应封装在我们的保护导线指南中请参阅第页的可用备件。控制单元的安装和布线也可参考第节图第节和第节控制单元应按照供应进行安装。除本手册所述的程序或连接外，不得对其进行修改或进行任何其他程序或连接。通过小心敲出或钻出要使用的电缆入口位置来准备控制单元。输入电源必须单独布线，并通过与输出接线所用电源的单独入口进入控制单元。将控制单元安装在其计划位置。控制单元端子的所有接线必须使用提供的导线类型或多股导管电缆开关设备电缆设备导线，导线为电缆进入控制单元和时，必须使用防护等级为的压盖或适配器。确保压盖或适配器的尺寸合适且完全拧紧。必须使用提供的绝缘针脚压褶。这种电线和端子组合避免了因过度拧紧或振动而导致的松股短路或开路的可能性。确保合适的棘轮类型使用压接工具。压接导线和绝缘层。不要将多条电线连接到一个压接上。确保电源在第节之前保持隔离和锁定。主交流电源必须在供电点通过最大的高断裂容量保险丝进行外部熔断。
Mark the fixing position of the edge trim on the floor so that the trim overlaps the pad. Using the holes in the trim as a guide, mark and drill the floor, if necessary, and install plugs. Clean the floor and fix the mat and edge trim in place with countersunk screws to suit the application. When installing the perimeter trim, ensure that no wires are trapped or crushed between the trim and the floor or between the top and bottom depending on the trim type. If the wire may be pinched or pulled out, strain relief clips should be used where the wire leaves the surrounding trim. All wires shall be protected by suitable conduits. If possible, the wiring sleeve shall not pass through the floor area that may trip. If this cannot be avoided, the wiring sleeve should be enclosed in our protective conductor guide See available spare parts on page. The installation and wiring of the control unit can also refer to the drawings in section, section and section. The control unit shall be installed as supplied. Except for the procedures or connections described in this manual, they shall not be modified or any other procedures or connections shall be made. Prepare the control unit by carefully tapping out or drilling out the cable entry position to be used. The input power supply must be wired separately and enter the control unit through a separate entrance to the power supply used for output wiring. Install the control unit in its planned position. All wiring of control unit terminals must use the provided wire type or multi strand conduit cable switchgear cable equipment wire. When the wire is a cable entering the control unit and, it must use a gland or adapter with a degree of protection. Ensure that the gland or adapter is properly sized and fully tightened. The insulation pins provided must be crimped. This wire and terminal combination avoids the possibility of loose strand short circuit or open circuit caused by excessive tightening or vibration. Make sure the proper ratchet type uses a crimping tool. Crimp wires and insulation. Do not connect multiple wires to one crimp. Make sure the power supply remains isolated and locked until section. The main AC power supply must be externally fused through the largest high breaking capacity fuse at the power supply point.
