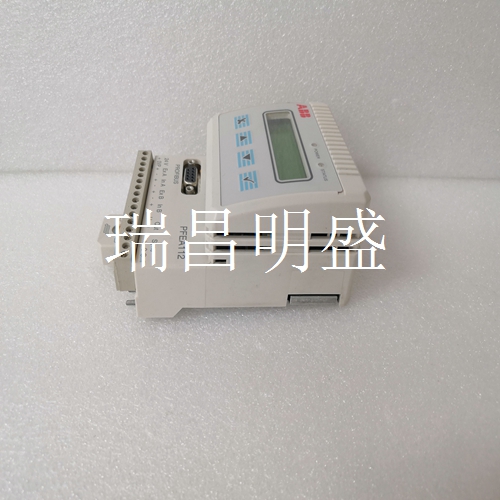

ABB PFEA112-20 通用电气卡件
状态指示器D15关闭（表示示教过程结束），恢复先前的值。示教过程注意事项：•如果控制器设置为绝对/位置模式（DIP开关S1:2=OFF），则仅当示教区域内的光束中断时，离散输出（Out 1）才会改变状态。例如，如果为射束10设置最小模拟输出，为射束30设置最大模拟输出，则仅阻挡射束5或射束40不会改变离散输出的状态，而中断射束20会改变离散输出状态。如果光束40和光束20都被阻挡，则离散输出改变状态。如果控制器设置为相对/尺寸模式（DIP开关S1:2=ON），如果任何光束中断，离散输出（Out 1）将改变状态。•代替在示教过程中使用要检测的实际物体，可以在示教期间通过其他手段（例如金属标志）中断适当的光束。表7-J15引脚列表引脚信号最小值最大值1 I输出4 mA 20 mA 2 0V DC 3 V输出0V 10V 4 0V DC表8-模拟板状态指示器状态指示器描述状态含义D15示教指示器关闭示教不活动闪烁示教活动橙色示教过程的最后一步D16模拟输出状态关闭V_Out=Off（0V）闪烁启动（忽略输出），过电流，或错误绿色亮度与模拟输出成比例重要信息一旦更改，DIP开关设置仅在电源循环后才能识别。表9-模拟型号DIP开关设置功能DIP开关S1（0：关，1：开，X：不相关）8765432 1默认设置0 0 0 0 1 0 0 0电流输出X X X X X X X 0电压输出X X X X X X X 1绝对模式（位置）X X X 0 X相对模式（大小）X X X 1 X启用远程示教0 X X 1 X X X启用双扫描滤波器0 X X X l X X X输出逻辑灯操作=24V（PNP L.O.）暗操作=0V（NPN D.O.）0xx0xxxx输出逻辑亮操作=0V以及材料处理产品。通过接地、电离和使用导电和耗散静电控制材料来耗散和中和。
The status indicator D15 is closed (indicating the end of the teaching process), and the previous value is restored. Precautions during teaching: • If the controller is set to absolute/position mode (DIP switch S1:2=OFF), the discrete output (Out 1) will change state only when the beam in the teaching area is interrupted. For example, if the minimum analog output is set for beam 10 and the maximum analog output is set for beam 30, blocking beam 5 or beam 40 only will not change the state of discrete output, while interrupting beam 20 will change the state of discrete output. If both beam 40 and beam 20 are blocked, the discrete output changes state. If the controller is set to relative/size mode (DIP switch S1:2=ON), the discrete output (Out 1) will change state if any beam is interrupted. • Instead of using the actual object to be detected during the teaching process, the appropriate beam can be interrupted by other means (such as metal markers) during the teaching. Table 7-J15 Pin List Pin Signal Minimum Maximum 1 I Output 4 mA 20 mA 2 0V DC 3 V Output 0V 10V 4 0V DC Table 8 Analog Board Status Indicator Status Indicator Description Status Meaning D15 Teaching Indicator Shutdown Teaching Inactivity Flashing Teaching Activity Orange Last Step of Teaching Process D16 Analog Output Status Shutdown V_ Out=Off (0V) flashing start (ignoring output), overcurrent, or error Green brightness is proportional to analog output Important information Once changed, DIP switch settings can only be recognized after power cycle. Table 9 - Analog model DIP switch setting function DIP switch S1 (0: off, 1: on, X: irrelevant) 8765432 1 Default setting 0 0 0 0 0 0 0 0 0 0 0 0 Current output X X X X X X X X 0 Voltage output X X X X X X X 1 Absolute mode (position) X X 0 X Relative mode (size) X X X 1 X Enable remote teaching 0 X X 1 X X X X Enable dual scan filter 0 X X X l X X X Output logic lamp operation=24V (PNP L.O.) Dark operation=0V (NPN D.O.) 0xx0xxxx Output logic on operation=0V and material handling products. Dissipate and neutralize by grounding, ionization, and the use of conductive and dissipative electrostatic control materials.
