ABB 57160001-K 3工控备件
模拟输入

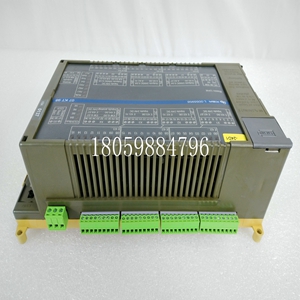

输出模块07AC91扩展产品类型07AC91产品ID GJR522300R0101 ABB型号07AC91 EAN 4013614267666目录描述，输入/输出模拟模块长描述07AC91：AC31，输出模拟模块8AC，24VDC，AC:U/I，12bit+符号，1线-一般信息EAN 4013614267666最低订购量1件海关税则号85389091订购-产品净宽120 mm产品净高140 mm产品净长85 mm产品净重0.81 kg尺寸-操作0…+55°C储存-25…+75°C环境空气温度最大工作海拔允许2000 m RoHS状态无需申报环境-可选择2种模式：8AI/8AO（12位）或16对通道，可选择为AI或AO（8位），带-10…+10V，0…20mA，4…20mA模拟输入2种模式可选择：8AI+8AO（12bit）或16通道，可对为AI和AO（8bit），带-10V…+10A，0…20mA，4…20mA模拟输出电缆横截面0.08…1.5 mm²CS31总线1防护等级IP20附加信息-现场总线接口类型CS31从I/O选项总线模块，带板载IO-16AC TH35-15（35 x 15 mm安装导轨），符合IEC 60715 TH35-7.5（35 x 7.5 mm安装轨），符合IEC60715，安装在DIN导轨上模拟可配置I/O数量16个订单
初级电压24 V
多个1件初级电压24 V产品主要类型07AC91产品名称分布式自动化I/O产品类型PLC-AC31-90串行端口1类型RS-485，CS31特殊功能热电偶输入电源电压24 V DC端子类型螺丝端子，可插拔ABS证书1SAA960000-0102 CSA证书1SAA4600000-1102数据表，技术信息2CDC12204D0201符合性声明-CE 1SAD938505-0047 DNV证书1SAA960000-0304环境信息1SAA96001-2401德国劳埃德船级社证书1SAA460000-0401说明书和手册2CDC120059M0202 LR证书1SAA560000-0502 RINA证书1SA960000-0802 RMRS证书1SAA 960000-0702 RoHS信息1SAA40005-4401 UL证书1AA960000-1602证书和声明（文件编号）-WEEE类别5.小型设备（外部尺寸不超过50 cm）分类-低压产品和系统→ 控制产品→ 可编程逻辑控制器→ 分布式自动化I/O类别-07AC91 2
Analog input
Output module 07AC91 Extended product type 07AC91 Product ID GJR522300R0101 ABB model 07AC91 EAN 4013614267666 Directory description, input/output analog module long description 07AC91: AC31, output analog module 8AC, 24VDC, AC: U/I, 12bit+symbol, Line 1 - General information EAN 4013614267666 Minimum order quantity 1 piece Customs Tariff No. 85389091 Order - Product net width 120 mm Product net height 140 mm Product net length 85 mm Product net weight 0.81 kg Size - Operation 0...+55 ° C Storage - 25...+75 ° C Ambient air temperature Maximum working altitude allows 2000 m RoHS status No need to declare environment - Two modes can be selected: 8AI/8AO (12 digits) or 16 pairs of channels, which can be selected as AI or AO (8 digits), with - 10...+10V, 0... 20mA, 4... 20mA analog input 2 modes can be selected: 8AI+8AO (12bit) or 16 channels, which can be paired as AI and AO (8bit), with - 10V...+10A, 0... 20mA, 4... 20mA analog output cable cross-section 0.08... 1.5 mm ² CS31 bus 1 protection class IP20 additional information - Fieldbus interface type CS31 slave I/O option bus module, with onboard IO-16AC TH35-15 (35 x 15 mm mounting rail), in accordance with IEC 60715 TH35-7.5 (35 x 7.5 mm mounting rail), in accordance with IEC60715, installed on DIN rail to simulate the configurable I/O quantity 16 orders
Primary voltage 24 V
Multiple one primary voltage 24 V product main type 07AC91 product name distributed automation I/O product type PLC-AC31-90 serial port 1 type RS-485, CS31 special function thermocouple input power voltage 24 V DC terminal type screw terminal, pluggable ABS certificate 1SAA960000-0102 CSA certificate 1SAA4600000-1102 data sheet, Technical Information 2CDC12204D0201 Declaration of Conformity - CE 1SAD938505-0047 DNV Certificate 1SAA960000-0304 Environmental Information 1SAA96001-2401 GL Certificate 1SAA460000-0401 Instruction and Manual 2CDC120059M0202 LR Certificate 1SAA560000-0502 RINA Certificate 1SA960000-0802 RMRS Certificate 1SAA 960000-0702 RoHS Information 1SAA40005-4401 UL Certificate 1AA960000-1602 Certificate and Statement (Document No.) - WEEE Category 5. Small Equipment (The external dimension does not exceed 50 cm) Classification - low-voltage products and systems → control products → programmable logic controllers → distributed automation I/O category - 07AC91 2
