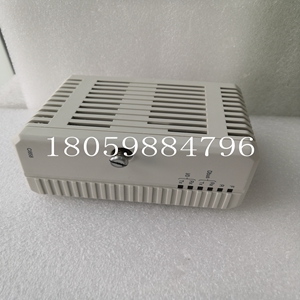

07NG61 GJV3074311R1设备模块
进行试运行
1.根据试运行进行检查每次开始运行前都要进行试运行，并确认最终产品正确无误。2.检查精度在设置器中，根据客户的要求，有些项目需要定期进行精度检查。由于长期变化，这些可能会从购买时的准确性略有偏差。准确性检查在我们公司进行，因此请咨询您的经销商或我们公司最近的办事处。3.大修由于设置器可靠，我们建议2-3年后进行大修。如需订购大修，请联系您的经销商或我们公司最近的办事处。13-2寿命组件控制器的清除寿命组件如下。请理解，几乎所有产品都会发生长期变化和老化。部件名称估计寿命1.电解电容器用于电路平滑。大约5年（环境温度：30°C，运行时间：12小时/天）2.电池Ú用于内存备份的电池。大约10年（环境温度：30°C，运行时间：12小时/天）
处理注意事项
① 本控制器包含少量低于RoHS指令规定水平的有害物质。② 处理控制器时，请务必请专业人员进行处理，或根据每个社区的垃圾收集方法处理控制器。③ 此控制器使用锂电池。处理控制器时，请务必请专业人员进行处理。④ 根据每个社区的垃圾收集方法，将控制器包装的盒子、塑料袋和缓冲材料分开，请配合回收。-57-14.术语解释术语解释SV校正是一种校正（偏差）SV（设定值）的功能。SV小数点这是一个可以选择SV（设置值）小数点位置的函数。可以从显示的5位数字中选择小数点位置。用于显示的SV小数点这是一个用于改变SV小数在上部显示器上的位置的功能。例如，当不显示小数点后的位数时，使用此函数。SV标度在模拟输出（电流和电压输出格式）规格的情况下，它是一个SV（设定值）相对于输出范围绘制的函数。例如，在电流输出格式的情况下，输出范围4-20mA的下限（L）和上限（H）分别为100和0，如下图所示。100（小时）
Conduct commissioning
1. Check according to the test run. Before each operation, conduct the test run and confirm that the final product is correct. 2. Check the accuracy in the setter. According to the customer's requirements, some items need to be checked regularly. Due to long-term changes, these may deviate slightly from the accuracy of the purchase. The accuracy check is carried out in our company, so please consult your dealer or the nearest office of our company. 3. Overhaul Since the setter is reliable, we recommend that it be overhauled 2-3 years later. To order an overhaul, please contact your dealer or our nearest office. The 13-2 life component controller has the following clear life components. Please understand that almost all products will undergo long-term changes and aging. Component name Estimated life 1. Electrolytic capacitor is used for circuit smoothing. About 5 years (ambient temperature: 30 ° C, operating time: 12 hours/day) 2. Battery; battery used for memory backup. About 10 years (ambient temperature: 30 ° C, operating time: 12 hours/day)
Handling precautions
① This controller contains a small amount of hazardous substances below the level specified in the RoHS Directive. ② When handling the controller, be sure to ask a professional person to handle it, or handle the controller according to the garbage collection method of each community. ③ This controller uses lithium batteries. When handling the controller, be sure to ask a professional to handle it. ④ According to the garbage collection method of each community, separate the boxes, plastic bags and buffer materials packaged by the controller. Please cooperate with recycling- 57-14. Term Interpretation Term Interpretation SV correction is a function of correcting (bias) SV (set value). SV Decimal PointThis is a function that allows you to select the SV (set value) decimal point position. You can select the decimal point position from the five digits displayed. SV decimal point for display This is a function used to change the position of SV decimal on the upper display. For example, use this function when the number of digits after the decimal point is not displayed. SV scaling In the case of analog output (current and voltage output format) specifications, it is a function of SV (setpoint) plotted relative to the output range. For example, in the case of current output format, the lower limit (L) and upper limit (H) of the output range 4-20mA are 100 and 0 respectively, as shown in the following figure. 100 (hours)
