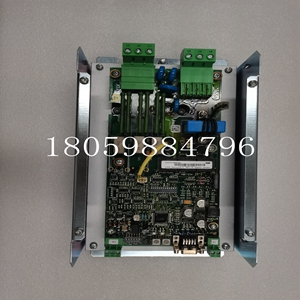

DCF803-0035工业自动化卡件
时间信号输出测试
① 仅显示具有外部信号输出（DO）的仪器。② 它是时间信号输出的测试功能。③ 当显示此设置屏幕时，最大8点时间信号输出的当前激活状态自动变为OFF。当选择进入输出状态的时间信号并点击 键，变为输出状态，直到选择No.0（NON）。使用此功能有效地促进了最终产品的系统检查。④ 移除此屏幕后，时间信号输出自动返回当前激活状态。⑤ 如果不分配外部信号，则在该功能中上部显示器的对应TS1至8点亮。-37-
检查状态输出
① 仅显示具有外部信号输出（DO）的仪器。② 检查状态输出的功能。③ 当显示此设置屏幕时，最大5点状态的当前激活状态自动变为OFF。当选择输入输出状态的状态并单击 键，变为输出状态，直到选择OFF。④ 删除此屏幕后，状态输出自动返回当前激活状态。⑤ 此功能仅在状态输出操作中有效，且程序操作状态和显示内容的操作不会改变。
Time signal output test
① Only instruments with external signal output (DO) are displayed. ② It is a test function of time signal output. ③ When this setting screen is displayed, the current active state of the maximum 8 o'clock time signal output automatically changes to OFF. When you select the time signal to enter the output state and click the Set button, it will become the output state until you select No 0（NON）。 Using this function effectively promotes the system inspection of the final product. ④ When this screen is removed, the time signal output automatically returns to the current active state. ⑤ If no external signal is assigned, the corresponding TS1 to 8 of the upper display in this function are lit- 37-
Check status output
① Only instruments with external signal output (DO) are displayed. ② Check the function of the status output. ③ When this setting screen is displayed, the current active state of the maximum 5-point state automatically changes to OFF. When you select the state of the input/output state and click Set, it changes to the output state until OFF is selected. ④ After deleting this screen, the status output automatically returns to the current active status. ⑤ This function is only valid in the state output operation, and the operation of program operation state and display content will not change.
