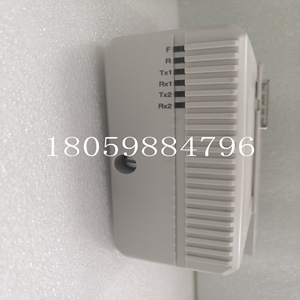

CI855K01工控备件
回路供电2线变送器的电源
短路和断路检测− 输入/总线和输入/电源之间的电气隔离− 所有输入的公共回路− 4通道，EEx ia II C名称简短描述文章编号AI910S模拟输入（AI4 Ex）变送器电源，4..20 mA。3KDE175511L9100 AI910B模拟输入（AI4-B）变送器电源、4..20 mA.3KDE175 512L9100 AI910N模拟输入（AI4）变送器电源；4..20 mL。3KDE 175513L9100模拟输入70 S900 I/O |系统800xA产品目录模拟输入，HART− 4…20 mA回路供电2线变送器的电源− 短路和断路检测− 输入/总线和输入/电源之间的电气隔离− 所有输入的公共回路− 4通道，EEx ia II C− 通过现场总线传输HART帧名称简短描述文章编号：AI930S模拟输入、HART（AI4H Ex）变送器电源、4..20 mA.3KDE175511L9300 AI930B模拟输入、哈特（AI4H-B）变送器电源，4..20 mA.3KDE175512L9300AI930N模拟输入、HART− 0/4…20 mA的无源输入− 短路和断路检测− 输入/总线和输入/电源之间的电气隔离− 所有输入的公共回路− 4通道，EEx ia II C− 通过现场总线传输HART帧名称简短
描述文章编号：
AI931S模拟输入、HART（AI4H Ex）无源输入、0/4..20 mA。3KDE175511L9310 AI931B模拟输入、哈特（AI4H-B）无源输入，0/4..20mA。3WDE175512L9310 AI931N模拟输入、哈尔特（AI4H）无源输入和0/4..20mA。3KDE275513L9310系统800xA产品目录| S900 I/O 71温度输入− 2-/3-/4线技术中的Pt 100、Pt 1000、Ni 100、0…3千欧姆− 热电偶类型、U、mV− 内部或外部冷端补偿− 短路和断路检测− 输入/总线和输入/电源之间的电气隔离− 通道间的电气隔离− 4通道，EEx ia II C名称简短描述文章编号AI950S温度（TI4 Ex）Pt100、Pt1000、Ni100，采用2-/3-/4技术热电偶类型，逐个通道隔离输入。3KDE175521L9500 AI950B温度（TI4-B）Pt100、Pt1000、Ni100采用2-/3-/4技术热电偶类型逐个通道隔离输入。3KDE175522L9500 AI950N温度（TI4）Pt100、Pt1000、Ni100采用2-/3-/4技术热电偶类型逐个通道隔离输入。3KDE175523L9500温度输入模拟输出− 致动器输出信号0/4…20 mA− 短路和断路检测− 输出/总线和输出/电源之间的电气隔离− 带公共接地的输出− 4通道，EEx ia II C名称简短描述文章编号AO910S模拟输出（AO4 Ex）输出0/4…20 mA。3KDE175531L9100 AO910B模拟输出（A04-B）输出0/4…20 mA.3KDE1175532L9100 AO910N模拟输出（AO4）输出0/0…20 mA
Power supply for loop powered 2-wire transmitters
Short circuit and open circuit detection − electrical isolation between input/bus and input/power supply − common loop of all inputs − 4 channels, EEx ia II C name short description article number AI910S analog input (AI4 Ex) transmitter power supply, 4.. 20 mA. 3KDE175511L9100 AI910B analog input (AI4-B) transmitter power supply, 4.. 20 mA. 3KDE175 512L9100 AI910N analog input (AI4) transmitter power supply; 4..20 mL。 3KDE 175513L9100 analog input 70 S900 I/O | system 800xA product catalog analog input, HART − 4... 20 mA loop power supply 2-wire transmitter power supply − short circuit and open circuit detection − electrical isolation between input/bus and input/power supply − common loop of all inputs − 4 channels, EEx ia II C − HART frame transmission via field bus Name Short description Article No.: AI930S analog input, HART (AI4H Ex) transmitter power supply 4.. 20 mA.3KDE175511L9300 AI930B analog input, Hart (AI4H-B) transmitter power supply, 4.. 20 mA.3KDE175512L9300AI930N analog input, HART − 0/4... 20 mA passive input − short circuit and open circuit detection − electrical isolation between input/bus and input/power supply − common loop of all inputs − 4 channels, EEx ia II C − short name of HART frame transmitted via field bus
Description Article No.:
AI931S analog input, HART (AI4H Ex) passive input, 0/4.. 20 mA. 3KDE175511L9310 AI931B analog input, Hart (AI4H-B) passive input, 0/4.. 20mA. 3WDE175,512L9310 AI931N analog input, HAART (AI4H) passive input and 0/4.. 20mA. 3KDE275513L9310 system 800xA product catalog | S900 I/O 71 temperature input − Pt 100, Pt 1000, Ni 100, 0... 3 kiloohms − thermocouple type, U, mV − internal or external cold end compensation − short circuit and open circuit detection − electrical and pneumatic isolation between input/bus and input/power supply − electrical isolation between channels − 4 channels, EEx ia II C name Short description Article No. AI950S temperature (TI4 Ex) Pt100, Pt1000, Ni100, The thermocouple type of 2 -/3 -/4 technology is used to isolate the input channel by channel. 3KDE175,521L9500 AI950B temperature (TI4-B) Pt100, Pt1000 and Ni100 adopt 2 -/3 -/4 technology thermocouple type to isolate input channel by channel. 3KDE175522L9500 AI950N temperature (TI4) Pt100, Pt1000 and Ni100 adopt 2 -/3 -/4 technology thermocouple type to isolate input channel by channel. 3KDE175523L9500 temperature input analog output − actuator output signal 0/4... 20 mA − short circuit and open circuit detection − electrical isolation between output/bus and output/power supply − output with common ground − 4 channels, EEx ia II C name short description article No. AO910S analog output (AO4 Ex) output 0/4... 20 mA. 3KDE175531L9100 AO910B analog output (A04-B) output 0/4... 20 mA. 3KDE1175532L9100 AO910N analog output (AO4) output 0/0... 20 mA
