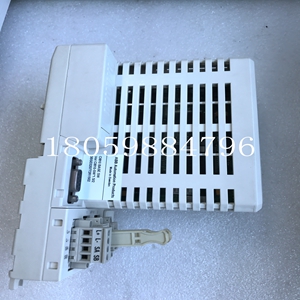

CI810B模拟量输入模块
基金会现场总线
必须从价目表3BDD 013 231《基金会现场母线网络组件》中订购所需的基金会现场现场总线网络组件（连接设备等）。第CI860K01条基金会现场总线HSE接口包，包括：-CI860，通信接口-TP860，底板，宽度=60 mm 3BSE032444R1 IEC 61850。对于IEC 618500相关产品的订单，当地组织必须遵守买方的要求，以确保IEC 61850与系统800xA的成功销售。参考文件，3BSE058798。物品编号CI868K01 IEC61850通信接口包，包括：-CI868，通信接口-TP867，底板，宽度=60 mm 3BSE048845R1 Ethernet/IP物品编号CI873K01 Ethernet/IP通信接口包装，包括：-CI873，通信接口-TP867，基板宽度=60 mm 3SSE056899R1 LD 800DN Ethernet/IP到DeviceNet链接设备，G1兼容封装包括：1个LD 800 DN 1个安装指南2个用于DeviceNet的终端电阻器，1/4 W，121 Ohm只能与CI873通信接口一起使用。3BSC690164R1 Advant Fieldbus 100产品编号CI869K01 AF 100通信接口包，包括：-CI869，通信接口-TP869，底板，宽度=60 mm 3BSE049110R1 System 800xA产品目录| AC 800M控制器43通信主总线300产品编号CI855K01 MB 300双以太网端口接口包，包括：-CI855，MB300接口模块-TP853，底板3BSE018106R1 S100 I/O总线产品编号CI856K01 S100 I/O接口安装在DIN导轨上。AC 800M和S100系统之间的通信桥。包装包括：-CI856，通信接口-TP856，底板，宽度=60 mm 3BSE026055R1 TRIO产品编号CI862K01 TRIO接口套件，G1兼容包装包括：-CI862，通信接口-TP862，底板，宽=60 mm 3 BUA000037R1 CI862K1冗余TRIO接口工具包，带连接电缆，G1兼容性包装包括：-2 x CI862、通信接口-2 x TP862、，底板，宽度=60 mm-TK862电缆，1 m 3BUA000111R1 Satt I/O用于Satt 19“机架I/O和通过ControlNet的S200 I/O。有关其他Satt 19”机架I/O组件，请参阅价格手册3BSE014360（SattLine/SatCon）中的价格表3BSE04353（接口）。
产品编号
卫星输入/输出组件的通信接口模块，包括：-CI865，通信接口-TP865，底板，宽度=60 mm 3BSE040795R1 INSUM产品编号CI857K01 INSUM以太网接口组件，包括：-CI857，通信接口-TP853，底板，width=60 mm 3BSE018144R1 44 AC 800M控制器| System 800xA产品目录通信驱动总线产品编号CI858K01驱动总线接口包，包括：-CI858，通信接口-TP858，底板，width=60 mm 3SSE018135R1 MOD5产品编号CI872K01 MOD5安装在DIN导轨上的通信接口。AC 800M与MOD5系统之间的通信接口。成套设备包括：-CI872，通信模块-TP858，底板，宽度=60 mm 3BSE051129R1总线附件物品编号TK850V007 CEX总线延长电缆长度=0.7 m。使用TK850V 007需要TK851作为CEX总线终端。3BSC950192R1 TB850 CEX总线终端器，带25针DB25P公接头。采用螺钉固定。TB850 CEX总线终端必须始终安装在CEX总线上的最后一个单元上。3BSC950193R1 TB851 CEX总线终端器，带25针DB25S母接头。采用螺钉固定。当通信接口单元安装在相邻的DIN导轨上时，它们通过CEX总线延长电缆（TK850）连接，并使用TB851 CEX总线终端进行端接。3BSC950194R1 BC810K02 CEX总线互连单元包括：-BC810，互连单元，2个单元-TP857，基板，宽度=60 mm，2个装置-TK851，互连电缆-TB850，CEX总线终端，2台机组3BSE031155R1 TK851V010连接电缆长度=1.0 m用作：-RCU链路电缆-BC810互连电缆3BSC950262R1 TB852 RCU链路终端3BSC95263R1 TB85 3 RCU控制链路终端3SSE057022R1 TK855 RCU数据链路电缆长度=1.0m用作：RCU数据链路电缆3BSC505356R1 TK 856 RCU控制链路电缆长度=1.5 m用作：阿
FOUNDATION Fieldbus
The required FOUNDATION Fieldbus network components (connecting devices, etc.) must be ordered from the price list 3BDD 013 231 FOUNDATION Fieldbus Network Components. Article CI860K01 Foundation fieldbus HSE interface package, including: - CI860, communication interface - TP860, base plate, width=60 mm 3BSE032444R1 IEC 61850. For orders of IEC 618500 related products, the local organization must comply with the requirements of the buyer to ensure the successful sales of IEC 61850 and system 800xA. Reference, 3BSE058798. Article No. CI868K01 IEC61850 communication interface package, including: - CI868, communication interface - TP867, base plate, width=60 mm 3BSE048845R1 Ethernet/IP Article No. CI873K01 Ethernet/IP communication interface package, including: - CI873, communication interface - TP867, base plate width=60 mm 3SSE056899R1 LD 800DN Ethernet/IP to DeviceNet link equipment, G1 compatible package includes: 1 LD 800 DN, 1 installation guide, 2 terminal resistors for DeviceNet, 1/4 W, 121 Ohm can only be used with CI873 communication interface. 3BSC690164R1 AdvantFieldbus 100 product number CI869K01 AF 100 communication interface package, including: - CI869, communication interface - TP869, backplane, width=60 mm 3BSE049110R1 System 800xA product catalog | AC 800M controller 43 communication main bus 300 product number CI855K01 MB 300 dual Ethernet port interface package, including: - CI855, MB300 interface module - TP853, The backplane 3BSE018,106R1 S100 I/O bus product number CI856K01 S100 I/O interface is installed on the DIN rail. Communication bridge between AC 800M and S100 systems. Package includes: - CI856, communication interface - TP856, backplane, width=60 mm 3BSE026055R1 TRIO product number CI862K01 TRIO interface kit, G1 compatible package includes: - CI862, communication interface - TP862, backplane, width=60 mm 3 BUA000037R1 CI862K1 redundant TRIO interface kit, with connecting cable, G1 compatible package includes: - 2 x CI862, communication interface - 2 x TP862, backplane, width=60 mm - TK862 cable, 1 m 3BUA000111R1 Satt I/O is used for Satt 19 "rack I/O and S200 I/O through ControlNet. For other Satt 19" rack I/O components, refer to the price list 3BSE04353 (interface) in the Price Manual 3BSE014360 (SattLine/SatCon).
Product No
Communication interface module of satellite input/output components, including: - CI865, communication interface - TP865, backplane, width=60 mm 3BSE040,795R1 INSUM product number CI857K01 INSUM Ethernet interface components, including: - CI857, communication interface - TP853, backplane, width=60 mm 3BSE018,144R1 44 AC 800M controller | System 800xA product catalog communication drive bus product number CI858K01 drive bus interface package, including: - CI858, Communication interface - TP858, backplane, width=60 mm 3SSE018135R1 MOD5 Product No. CI872K01 MOD5 Communication interface installed on DIN rail. Communication interface between AC 800M and MOD5 system. The complete set of equipment includes: - CI872, communication module - TP858, base plate, width=60 mm, 3BSE051129R1 bus accessory article number TK850V007 CEX bus extension cable length=0.7 m. Using TK850V 007 requires TK851 as the CEX bus terminal. 3BSC950192R1 TB850 CEX bus terminator with 25 pin DB25P male connector. Secure with screws. The TB850 CEX bus terminal must always be installed on the last unit on the CEX bus. 3BSC950193R1 TB851 CEX bus terminal with 25 pin DB25S female connector. Secure with screws. When communication interface units are installed on adjacent DIN rails, they are connected through CEX bus extension cable (TK850) and terminated with TB851 CEX bus terminal. 3BSC950194R1 BC810K02 CEX bus interconnection unit includes: - BC810, interconnection unit, 2 units - TP857, base plate, width=60 mm, 2 devices - TK851, interconnection cable - TB850, CEX bus terminal, The length of 3BSE031155R1 TK851V010 connecting cable for two units=1.0 m is used as: - RCU link cable - BC810 interconnection cable 3BSC950262R1 TB852 RCU link terminal 3BSC95263R1 TB85 3 RCU control link terminal 3SSE057022R1 TK855 RCU data link cable length=1.0 m is used as: RCU data link cable 3BSC505356R1 TK 856 RCU control link cable length=1.5 m is used as: A
