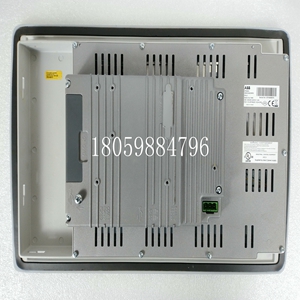

800PP846A DCS工控模块备件
程序编程工具程序
是一个基于Windows的应用程序编程工具程序。它可以在没有驱动器的情况下使用，也可以与一个或多个驱动器一起使用。设计用于在IBM兼容PC上的Microsoft Windows 7、Windows Vista、Windows XP、Windows 2000和Windows NT 4.0操作环境下运行。应用程序编程基于使用其他IEC 61131-3工具中的功能块。块名称、功能和外观源自驱动器软件。通过使用程序，可以：•连接驱动器。如果有多个驱动器连接到电脑，用户可以从可用驱动器列表中选择驱动器。•从连接的驱动器上传程序并在屏幕上以图形方式显示•实时监控屏幕上用户选择的块引脚的实际值•在屏幕上修改程序•将屏幕上的程序下载到连接的驱动器•在连接的驱动器中设置程序的状态（运行、停止或编辑）•在屏幕中打印程序•保存将屏幕上的程序转换为磁盘文件•打开之前保存的程序文件，并以图形方式显示在屏幕上。现在可以修改、下载、保存程序等。•请参阅所有模块的说明概述1-2 用户手册当从驱动器上传程序（或打开程序文件）时，会自动为程序选择适当的用户界面：•标准用户界面用于自适应编程程序。
一个程序只包含一个包含三部分的页面：
-用户常数位于左侧-功能块位于中间-连接和指针参数位于右侧•高级用户界面用于多块编程应用程序。一个程序包含多个可通过页面选项卡选择的页面。这些页面包含以下块：-输入IO块位于左侧-正常块位于中间-输出IO块位于右侧-注释块可以位于任何位置 1仅包括用于自适应编程的标准用户界面。 2包括两个用户界面。以下两页是这两种程序类型的示例页。DriveAP程序有三种操作模式：•独立模式：-这是DriveAP启动后的默认操作模式-该模式可以在没有驱动器的情况下使用-以下功能可用：-打开程序文件并以图形方式显示在屏幕上-修改屏幕上的程序-在屏幕上打印程序-将屏幕上的文件保存到磁盘文件中•离线模式：-模式通过菜单命令Connect启动-以下功能可用：-从连接的驱动器上传程序并显示它-将屏幕上的程序下载到连接的驱动器-独立模式的功能•在线模式：-通过菜单命令on Line启动模式-屏幕上对程序的所有修改都自动进行复制到连接的驱动器中的程序-用户选择的块引脚的实际值实时显示在屏幕上-驱动器中的时间级别状态（运行、停止或编辑）显示在屏幕中，用户可以更改-驱动器状态信息显示在屏面上-可以从驱动器读取非AP参数的值，用户可以进行更改驱动器O中的这些值
Program programming tool program
It is a Windows based application programming tool program. It can be used without a drive or with one or more drives. Designed to run under Microsoft Windows 7, Windows Vista, Windows XP, Windows 2000, and Windows NT 4.0 operating environments on IBM compatible PCs. Application programming is based on the use of function blocks from other IEC 61131-3 tools. The block name, function, and appearance are derived from the drive software. By using the program, you can: • Connect the drive. If more than one drive is connected to the computer, users can select a drive from the list of available drives. • Upload the program from the connected drive and display it graphically on the screen • Real time monitor the actual value of the block pin selected by the user on the screen • Modify the program on the screen • Download the program on the screen to the connected drive • Set the status of the program in the connected drive (run, stop or edit) • Print the program on the screen • Save the program on the screen to convert it to a disk file • Open the previously saved program file, It is displayed on the screen graphically. You can now modify, download, and save programs. • Refer to the description of all modules Overview 1-2 User Manual When uploading a program from the drive (or opening a program file), the appropriate user interface is automatically selected for the program: • Standard user interface is used for adaptive programming programs.
A program contains only one page with three parts:
-User constants on the left - function blocks in the middle - connection and pointer parameters on the right • Advanced user interface for multi block programming applications. A program contains multiple pages that can be selected through the Page tab. These pages contain the following blocks: - The input IO block is on the left - The normal block is in the middle - The output IO block is on the right - The annotation block can be located anywhere 1 Only the standard user interface for adaptive programming is included. 2 Includes two user interfaces. The following two pages are sample pages for these two program types. The DriveAP program has three operation modes: • Independent mode: - This is the default operation mode after the DriveAP is started - This mode can be used without a drive - The following functions are available: - Open the program file and display it graphically on the screen - Modify the program on the screen - Print the program on the screen - Save the file on the screen to a disk file • Offline mode: - The mode is enabled through the menu command Connect Active - The following functions are available: - Upload the program from the connected drive and display it - Download the program on the screen to the connected drive - Functions in the independent mode • Online mode: - Start the mode through the menu command on Line - All changes to the program on the screen are automatically copied to the program in the connected drive - The actual value of the block pin selected by the user is displayed on the screen in real time - Time level status in the drive (Running, stopping or editing) is displayed on the screen, and users can change it - drive status information is displayed on the screen - values of non AP parameters can be read from the drive, and users can change these values in drive O
