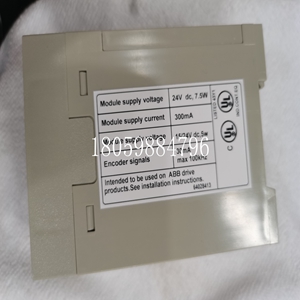

3BHL000511P0003 NTAC-02工控备件模块
大容量存储系统
CompactFlash磁盘具有可选的板载CompactFlash大容量存储系统，容量高达2GB。该CompactFlash磁盘在用户看来是一个智能ATA（IDE）磁盘驱动器，具有与“旋转介质”IDE硬盘相同的功能和功能。 BIOS包括一个选项，允许板使用用户提供的操作系统从CompactFlash启动。配置CompactFlash磁盘作为辅助IDE总线主设备驻留在上（辅助IDE母线从设备不可分配）。59远程以太网引导3远程以太网引导能够通过使用ARGON引导ROM BIOS的网络使用10/100 Mb或千兆以太网从服务器引导。BIOS允许您使用各种网络协议远程启动。以太网必须通过任一前面板（RJ45）连接器连接，才能远程启动。此功能允许用户创建系统，而无需担心磁盘驱动器的可靠性或添加CompactFlash驱动器的额外成本。引导BIOS功能：•Netware（802.1、802.3或EthII）、TCP/IP（DHCP或BootP）、，RPL和PXE引导支持•无与伦比的引导扇区病毒保护•详细的引导配置屏幕•全面诊断•可选禁用本地引导•双引导选项允许用户选择网络或本地引导60 3 产品手册本页故意留空。
入式系统产品
维护如果 Fanuc嵌入式系统产品出现故障，请验证以下内容：1.产品上的软件2.系统配置3.电气连接4.跳线或配置选项5.电路板完全插入其正确的连接器位置6.连接器引脚干净且无污染7。从机箱中插入或卸下电路板时，没有任何组件或相邻电路板受到干扰8.电缆和I/O连接的质量如果必须退货，请联系 Fanuc Embedded Systems获取退货授权（RMA）编号。退货前必须获得此RMA编号。RMA可在rma@fanuc.com. Fanuc嵌入式系统客户服务热线：1-800-FANUC（或1-800-433-2682），1-780-401-7700，或发送电子邮 品手册维护打印不建议用户级维修。本手册中的图纸和图表仅供参考。
Mass storage system
The CompactFlash disk has an optional onboard CompactFlash mass storage system with a capacity of up to 2GB. The CompactFlash disk is viewed by users as an intelligent ATA (IDE) disk drive with the same functions and functions as the "rotating media" IDE hard disk. The BIOS includes an option that allows the board to boot from CompactFlash using the user supplied operating system. Configure the CompactFlash disk to reside on as the secondary IDE bus master (secondary IDE bus slaves cannot be assigned). 59 Remote Ethernet boot 3 Remote Ethernet boot can boot from the server using 10/100 Mb or Gigabit Ethernet over a network using ARGON boot ROM BIOS. The BIOS allows you to boot remotely using a variety of network protocols. Ethernet must be connected through any front panel (RJ45) connector to start remotely. This feature allows users to create systems without worrying about the reliability of disk drives or the additional cost of adding CompactFlash drives. Boot BIOS functions: • Netware (802.1, 802.3 or EthII), TCP/IP (DHCP or BootP),, RPL and PXE boot support • Unmatched boot sector virus protection • Detailed boot configuration screen • Comprehensive diagnosis • Optional disable local boot • Dual boot option allows users to select network or local boot 60 3 This page of the product manual is intentionally left blank.
Incoming system products
Maintenance If the Fanuc embedded system product fails, please verify the following: 1. Software on the product 2. System configuration 3. Electrical connection 4. Jumper or configuration option 5. The circuit board is fully inserted into its correct connector position 6. The connector pins are clean and free of contamination 7. When the circuit board is inserted or removed from the chassis, no components or adjacent circuit boards are disturbed. 8. If the quality of cable and I/O connection must be returned, please contact Fanuc Embedded Systems to obtain the Return Authorization (RMA) number. This RMA number must be obtained before return. RMA can rma@fanuc.com. Fanuc embedded system customer service hotline: 1-800-FANUC (or 1-800-433-2682), 1-780-401-7700, or sending e-mailings manual for maintenance printing. User level maintenance is not recommended. The drawings and diagrams in this manual are for reference only.
