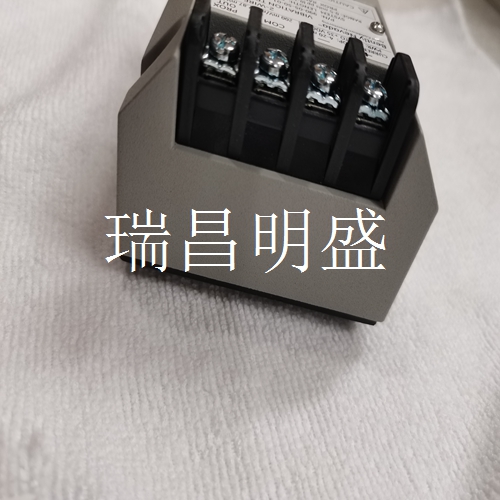

99005-50-01-00系统模块控制器
隔离圆形
符合性和认证FCC此设备符合FCC规则第15部分的要求。操作必须符合以下两个条件：l本设备可能不会造成有害干扰。l此设备必须接受接收到的任何干扰，包括可能导致不期望操作的干扰。EMC EN 61326-1 EMC指令2014/30/欧盟RoHS RoHS指令2011/65/欧盟ATEX（如果订购了适用的破折号选项）EN 60079-0 EN 60079-11 EN 60079–15 ATEX指令2014/34/欧盟危险区域批准ATEX/IECEx 74712和9200 II 1 G Ex ia IIC T6 Ga II 3 G Ex nL IIC T6Gc T6@Ta=-20°C至+40°C 9200和74712 Seismoprobe Velocity Transducers Datasheet 5/14 141626 Rev。L订购信息有关国家和产品特定批准的详细列表，请参阅Bently.com上的《批准快速参考指南》（文件108M1756）。双线传感器9200-AA-BB-CC-DD A：传感器安装角度/最小工作频率选项01 0±2.5，4.5 Hz（270 cpm）02 45±2.5，4.5Hz（270 cpm）03 90±2.5，450Hz（270 CP m）06 0±100，10Hz（600 CP m）09 0±180，15 Hz（900 cpm B：连接器/电缆选项01顶部安装（无电缆）02侧面安装（无线缆）05接线板顶部安装（不电缆）10至50整体硬线电缆（示例见图7）。选项编号对应于电缆长度（英尺）。标准电缆长度如下所示。可通过定制产品提供7英尺至50英尺之间的其他电缆长度。
危险区域
10 10英尺（3.0米）15 15英尺（4.6米）22 22英尺（6.7米）32 32英尺（9.8米）50 50英尺（15.2米）C：安装底座选项01圆形；1/4英寸20 UNC螺柱02圆形；1/4英寸28 UNF螺柱03矩形法兰04圆形；在直径为44 mm（1.75 in）的螺栓圆圈05无底座上安装三个8-32螺纹螺柱；1/2-in 20 UNF-3A螺柱06隔离圆形1/4-in 20 UNC螺柱07隔离圆形1/4 in 28 UNF螺柱08隔离矩形法兰09隔离圆形5/8-in 18 UNF螺桩10圆形；M10X1螺柱11隔离圆形M10X1 12隔离圆形½in 20 UNF-2A D：机构批准选项00无批准04 ATEX/IECEx 9200和74712 Seismoprobe速度传感器数据表6/14 141626 Rev.L高温双线传感器74712-AA-BB-CC-DD A：传感器安装角度/最小工作频率选项01 0±2.5，4.5 Hz（270 cpm）02 45±2.5，4.5Hz（270 cpm）03 90±2.5，4.5 Hz（270 cpm）06 0±100，10 Hz（600 cpm）07 0±180，15 Hz；1/2-in 20 UNF-3A螺柱06隔离圆形1/4-in 20 UNC螺柱07隔离圆形1/4 in 28 UNF螺柱08隔离矩形法兰09隔离圆形5/8-in 18 UNF螺桩10圆形；M10X1螺柱11隔离圆形M10X1 12隔离圆形½英寸20 UNF-2A C:连接器选项01顶部安装02端子板顶部安装05侧面安装D:机构批准选项00无批准04 ATEX/IECEx 9200和74712 Seismoprobe速度传感器数据表7/
Isolated circle
Compliance and Certification FCC This equipment complies with the requirements of Part 15 of the FCC Rules. Operation must meet the following two conditions: l This equipment may not cause harmful interference. L This equipment must accept any interference received, including interference that may cause undesired operation. EMC EN 61326-1 EMC Directive 2014/30/EU RoHS RoHS Directive 2011/65/EU ATEX (if applicable dash option is ordered) EN 60079-0 EN 60079-11 EN 60079 – 15 ATEX Directive 2014/34/EU Hazardous Area Approvals ATEX/IECEx 74712 and 9200 II 1 G Ex ia IIC T6 Ga II 3 G Ex nL IIC T6Gc T6@Ta =-20 ° C to+40 ° C 9200 and 74712 Seismoprobe Velocity Transmitters Datasheet 5/14 141626 Rev. L Ordering information For a detailed list of country and product specific approvals, see Bently Approval Quick Reference Guide (document 108M1756) on. com. Two wire sensor 9200-AA-BB-CC-DD A: sensor installation angle/minimum operating frequency option 01 0 ± 2.5, 4.5 Hz (270 cpm) 02 45 ± 2.5, 4.5 Hz (270 cpm) 03 90 ± 2.5, 450 Hz (270 CP m) 06 0 ± 100, 10 Hz (600 CP m) 09 0 ± 180, 15 Hz (900 cpm B: connector/cable option 01 Top mounting (no cable) 02 Side mounting (no cable) 05 Terminal block top mounting (no cable) 10 to 50 integral hard cable (see Figure 7 for example) 。 The option number corresponds to the cable length in feet. Standard cable lengths are shown below. Additional cable lengths between 7 feet and 50 feet are available through custom products.
Hazardous area
10 10 feet (3.0 meters) 15 15 feet (4.6 meters) 22 22 feet (6.7 meters) 32 32 feet (9.8 meters) 50 50 feet (15.2 meters) C: Installation base option 01 round; 1/4 inch 20 UNC stud 02 round; 1/4 inch 28 UNF stud 03 rectangular flange 04 round; Install three 8-32 threaded studs on the base of the 44 mm (1.75 in) diameter bolt circle 05; 1/2-in 20 UNF-3A stud 06 isolated round 1/4-in 20 UNC stud 07 isolated round 1/4-in 28 UNF stud 08 isolated rectangular flange 09 isolated round 5/8-in 18 UNF stud 10 round; M10X1 stud 11 isolating round M10X1 12 isolating round ½ In 20 UNF-2A D: Agency approved option 00 No approval 04 ATEX/IECEx 9200 and 74712 Seismoprobe speed sensor data sheet 6/14 141626 Rev. L High temperature two-wire sensor 74712-AA-BB-CC-DD A: Sensor installation angle/minimum operating frequency option 01 0 ± 2.5, 4.5 Hz (270 cpm) 02 45 ± 2.5, 4.5 Hz (270 cpm) 03 90 ± 2.5, 4.5 Hz (270 cpm) 06 0 ± 100, 10 Hz (600 cpm) 07 0 ± 180, 15 Hz; 1/2-in 20 UNF-3A stud 06 isolated round 1/4-in 20 UNC stud 07 isolated round 1/4-in 28 UNF stud 08 isolated rectangular flange 09 isolated round 5/8-in 18 UNF stud 10 round; M10X1 stud 11 isolating round M10X1 12 isolating round ½ Inch 20 UNF-2A C: connector option 01 top mounting 02 terminal block top mounting 05 side mounting D: agency approved option 00 no approval 04 ATEX/IECEx 9200 and 74712 Seismoprobe speed sensor data sheet 7/
