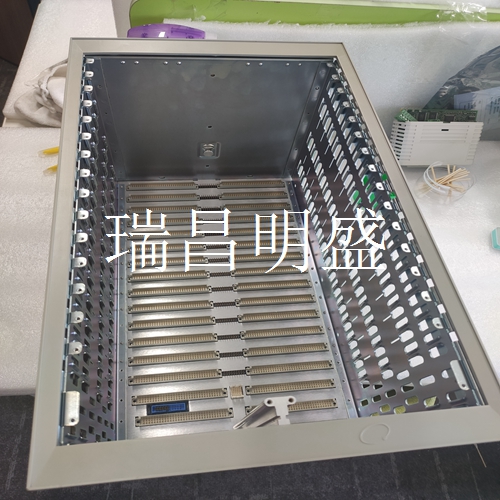

350005-01-01-00-00-01模块卡件
机架置于跳闸倍增
I/O模块系统触点跳闸倍增用于将3500机架置于跳闸倍增。报警抑制用于抑制3500机架中的所有报警。机架复位用于清除锁定报警和定时OK通道失效。最大电流<1 mA dc，干触点至公共线。RS232/RS422开关（仅限RS232/RS422 I/O模块）用于在RS232和RS422之间进行选择，以便与Bently Nevada主机软件进行通信。通信前面板通信仅RS232串行通信。本特利内华达专利协议。数据速率最大38.4 k波特（支持自动波特）。用途允许数据采集和3500机架配置。电缆长度最大30米（100英尺）。RS232/RS422输入/输出模块通信RS232、RS422或外部调制解调器。本特利内华达专利协议。波特率最大38.4 k波特率（支持自动波特率）。用途允许数据采集和3500机架配置。电缆长度RS232最大30米（100英尺）。RS422最大1200米（4000英尺）。调制解调器咨询调制解调器制造商，通常为3米（10英尺）。调制解调器I/O模块通信Hayes AT兼容。本特利内华达专利协议。波特率最大14.4 k波特率。用途允许数据采集和3500机架配置。电缆长度最大为2.1米（7英尺）。调制解调器到电话插孔。规格和订购信息零件号141531-01 A版（03/07）第4页，共8页，仅限机架连接器通信RS422。本特利内华达州财产协议。波特率最大38.4 k波特率。
内置调制解调器
用途允许多个3500机架菊花链连接在一起，以便与3500主机软件通信。电缆长度最大1200米（4000英尺）。数据管理器I/O模块（2组端口）通信Bently Nevada专有。Bently Nevada协议优先。波特率9600波特固定。目的允许Bently Nevada瞬态数据接口外部或动态数据接口外部通信处理器进行静态和动态数据采集。电缆长度最大为3米（10英尺）。环境限制机架接口模块和RS232/RS422 I/O操作温度：-30°C至+65°C（-22°F至+150°F）。储存温度：-40°C至+85°C（-40°F至+185°F）。调制解调器输入/输出模块工作温度：0°C至+50°C（+32°F至+122°F）。储存温度：-40°C至+85°C（-40°F至+185°F）。湿度：95%，无冷凝。CE标志指令EMC指令：EN50081-2：辐射发射EN 55011，A类传导发射EN 5501，A类EN50082-2：静电放电EN 61000-4-2，标准B辐射敏感性ENV 50140，标准A传导敏感性ENV 50141，标准A电快速瞬变EN 61000-4-4，标准B浪涌能力规范和订购信息零件号141531-01版本A（03/07）第5页，共8页EN 61000-4-5，标准B磁场EN 61000--4-8，标准A电源浸渍EN 61000-4-11，标准B无线电话ENV 50204，标准B低压指令：EN 61010-1安全要求危险区域认证CSA/NRTL/C：认证选项（01）I级，分区2 A、B、C、D组T4@Ta=-20°C至+65°C（-4°F至+150°F）认证号CSA 150268-1002151（LR 26744）物理RIM尺寸（高x宽x深）：241.3 mm x 24.4 mm x 241.8 mm（9.5英寸x 0.96英寸x 9.52英寸）。重量：0.91千克（2.0磅）。RS232/RS422 I/O尺寸（高x宽x深）：241.3毫米x 24.4毫米x 99.1毫米（9.50英寸x 0.96英寸x 3.90英寸）。重量：0.45千克（1.0磅）。调制解调器I/O尺寸（高x宽x深）：241.3毫米x 24.4毫米x 99.1毫米（9.50英寸x 0.96英寸x 3.90英寸）。重量0.45千克（1.0磅）。Data Manager I/O尺寸（高x宽x深）：241.3 mm x 24.4 mm x 99.1 mm（9.50英寸x 0.96英寸x 3.90英寸）。重量：0.45千克（1.0磅）。机架空间要求RIM主板：1个全高前插槽。RIM I/O模块：1个全高后插槽。Data Manager I/O模块：1个全高后插槽。订购信息3500/20-AXX-BXX-CXX A：机架接口类型0 1标准RIM（用于标准监控应用）0 2 TMR RIM（仅用于需要三模块冗余配置的应用）B：I/O模块类型0 1带内置调制解调器的I/O模块0 2带RS232/RS422接口的I/O模块C：机构批准选项0 0无
Rack set to trip multiply
The I/O module system contact trip multiplier is used to place the 3500 rack in the trip multiplier. Alarm Inhibit is used to suppress all alarms in the 3500 rack. Rack reset is used to clear lockout alarms and timed OK channel failures. Maximum current<1 mA dc, dry contact to common. The RS232/RS422 switch (RS232/RS422 I/O modules only) is used to select between RS232 and RS422 for communication with Bently Nevada host software. The communication of the front panel is only RS232 serial communication. Bently Nevada Patent Agreement. The maximum data rate is 38.4 k baud (automatic baud is supported). Purpose Allows data acquisition and 3500 rack configuration. The maximum cable length is 30 meters (100 feet). RS232/RS422 I/O module communication RS232, RS422 or external modem. Bently Nevada Patent Agreement. The maximum baud rate is 38.4 k (automatic baud rate is supported). Purpose Allows data acquisition and 3500 rack configuration. Cable length RS232 maximum 30 meters (100 feet). RS422 1200 meters (4000 feet) maximum. Consult the modem manufacturer for the modem, usually 3 meters (10 feet). Modem I/O module communication Hayes AT compatible. Bently Nevada Patent Agreement. Baud rate 14.4 k baud rate maximum. Purpose Allows data acquisition and 3500 rack configuration. The maximum cable length is 2.1 meters (7 feet). Modem to telephone jack. Specifications and Ordering Information Part Number 141531-01 Rev A (03/07) Page 4 of 8 for Rack Connector Communications RS422 only. Bentley Nevada Property Agreement. Baud rate 38.4 k baud rate maximum.
Internal Modem
Purpose Allows multiple 3500 racks to be daisy chained together for communication with 3500 host software. The maximum cable length is 1200 meters (4000 feet). The data manager I/O module (2 sets of ports) communicates Bently Nevada proprietary. Bently Nevada protocol takes precedence. Baud rate 9600 baud fixed. Purpose To allow Bently Nevada Transient Data Interface external or Dynamic Data Interface external communication processors to perform static and dynamic data acquisition. The maximum cable length is 3 meters (10 feet). Ambient limit Rack Interface Module and RS232/RS422 I/O operating temperature: - 30 ° C to+65 ° C (- 22 ° F to+150 ° F). Storage temperature: - 40 ° C to+85 ° C (- 40 ° F to+185 ° F). Modem I/O module operating temperature: 0 ° C to+50 ° C (+32 ° F to+122 ° F). Storage temperature: - 40 ° C to+85 ° C (- 40 ° F to+185 ° F). Humidity: 95%, non condensing. CE Mark Directives EMC Directives: EN50081-2: Radiated Emissions EN 55011, Class A Conducted Emissions EN 5501, Class A EN50082-2: Electrostatic Discharge EN 61000-4-2, Standard B Radiated Susceptibility ENV 50140, Standard A Conducted Susceptibility ENV 50141, Standard A Electrical Fast Transients EN 61000-4-4, Standard B Surge Capability Specifications and Ordering Information Part No. 141531-01 Version A (03/07) Page 5 of 8 EN 61000-4-5, Standard B Magnetic Field EN 61000-4-8, Standard A power impregnation EN 61000-4-11, standard B wireless telephone ENV 50204, standard B low-voltage directive: EN 61010-1 safety requirements Hazardous area certification CSA/NRTL/C: certification option (01) Class I, Division 2 Groups A, B, C, D T4@Ta =-20 ° C to+65 ° C (- 4 ° F to+150 ° F) Certification No. CSA 150268-1002151 (LR 26744) Physical RIM dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in). Weight: 0.91 kg (2.0 lb). RS232/RS422 I/O dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in). Weight: 0.45 kg (1.0 lb). Modem I/O size (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 inches x 0.96 inches x 3.90 inches). Weight 0.45 kg (1.0 lb). Data Manager I/O dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 inches x 0.96 inches x 3.90 inches). Weight: 0.45 kg (1.0 lb). Rack space requirements RIM motherboard: 1 full height front slot. RIM I/O module: 1 full height rear slot. Data Manager I/O module: 1 full height rear slot. Ordering information 3500/20-AXX-BXX-CXX A: Rack interface type 0 1 Standard RIM (for standard monitoring applications) 0 2 TMR RIM (for applications requiring three module redundancy configuration only) B: I/O module type 0 1 I/O module with built-in modem 0 2 I/O module with RS232/RS422 interface C: Agency approved option 0 0 None
