330854-040-24-05机器人备件
速度传感器外壳

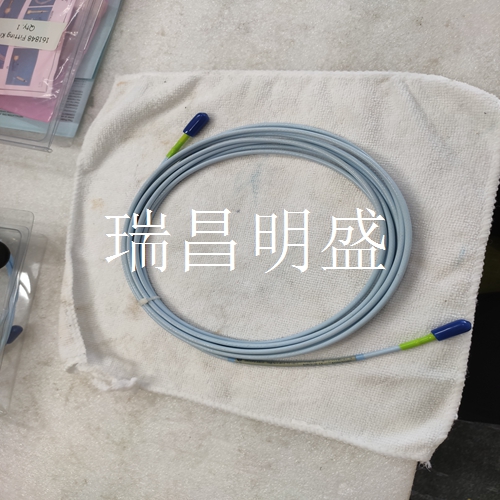

订购信息有关国家和产品特定批准的详细列表，请参阅Bently.com上的批准快速参考指南，文件108M1756。Velomitor压电速度传感器330500-AA-BB A：安装螺纹适配器选项00无适配器01 1/2-20 UNF 02 M8 x 1 03 1/4-28 UNF 04 1/4-20 UNC 05不适用于330500。注意：对于1/4-18 NPT安装，订单330525.06 5/8–18 UNF 07 3/8–16 UNC 08 1/2–13 UNC B：机构批准选项00不需要01 CSA/US/C 02 ATEX（欧洲）04多重批准（CSA、ATEX）互连电缆标准电缆长度英尺米（近似值）6 ft 1.8 m 8 ft 2.4 m 10 ft 3.0 m 12 ft 3.6 m 15 ft 4.5 m 17 ft 5.0 m英尺米（大致值）20 ft 6.0 m 25 ft 7.6 m 30 ft 9.0 m 33 ft 10.0 m 50 ft15.2 m 99 ft 30.0 m定制电缆零件号您可以以1.0 ft（305 mm）的增量订购定制电缆长度，但需额外付费。有些电缆有最小和最大长度。零件号说明在这些零件号中使用“NN”指定要订购的电缆的长度（英尺）。9571-NN双芯绞合屏蔽22 AWG电缆，一端带有两个插座防潮阴接头，另一端带有接线片。与监视器一起使用。不适用于21128速度传感器外壳。最小长度：2.0英尺（0.6米）最大长度：99英尺（30米）84661-NN双芯绞合屏蔽22 AWG铠装电缆，一端带有双插座防潮阴接头，另一端带有接线片。
与监视器一起使用
不适用于21128速度传感器外壳。最小长度：3.0英尺（0.9米）最大长度：96英尺（29米）89477-NN双导线18 AWG绞合屏蔽电缆，一端带有直角双插座插头，另一端带有接线片。与监视器和21128速度传感器外壳一起使用。最小长度：2.0英尺（0.6米）最大长度：99英尺（30米）125065-NN双导线18 AWG绞合，330500 Velomitor压电速度传感器数据表6/11 141632 Rev.N零件号描述屏蔽电缆，一端带有两个插座插头和氟硅橡胶护套，另一端带有接线片。与监视器一起使用。不适用于21128速度传感器外壳。最小长度：2.0 ft（0.6 m）最大长度：99 ft（30 m）速度传感器外壳组件21128-AA-BB A：安装螺纹选项01无螺纹02 3/4-14 NPT 03 1/2-14 NPT04 1/2-12 BSP B：电缆出口配件选项01 1/2-14 NST插头02 1/2-14 NFT防爆03 1/2-14NPT防爆带电缆压盖使用21128外壳时，电缆零件号89477-AA是将Velomitor传感器连接至监视器所必需的。速度传感器外壳–CENELEC批准的107770-AA-BB该版本是330500 Velomitor传感器和工厂预装的21128外壳的组合。它也适用于CENELEC 1区IIC组危险区域应用。A： 安装螺纹选项01无螺纹02 3/4-14 NPT 03 1/2-14 NPT04 1/2-14 BSP B：电缆出口接头
Speed sensor housing
Ordering Information For a detailed list of country and product specific approvals, see Bently Quick Reference Guide for Approvals on. com, document 108M1756. Velomitor Piezoelectric Speed Sensor 330500-AA-BB A: Mounting Threaded Adapter Option 00 No Adapter 01 1/2-20 UNF 02 M8 x 1 03 1/4-28 UNF 04 1/4-20 UNC 05 Not available for 330500. NOTE: For 1/4-18 NPT installations, Order 330525.06 5/8 – 18 UNF 07 3/8 – 16 UNC 08 1/2 – 13 UNC B: Agency Approval Option 00 does not require 01 CSA/US/C 02 ATEX (Europe) 04 Multiple Approvals (CSA, ATEX) Interconnect Cable Standard Cable Length ft m (approximate) 6 ft 1.8 m 8 ft 2.4 m 10 ft 3.0 m 12 ft 3.6 m 15 ft 4.5 m 17 ft 5.0 m ft m ft m (approximate) 20 ft 6.0 m 25 ft 7.6 m 30 ft 9.0 m 33 ft 10.0 m 50 ft 15.2 m 99 ft 30.0 m Custom Cable Part NumberYou can order custom cable lengths in 1.0 ft (305 mm) increments at an additional cost. Some cables have minimum and maximum lengths. The part number description uses "NN" in these part numbers to specify the length (in feet) of the cable to order. 9571-NN twisted pair shielded 22 AWG cable with two moisture resistant female sockets at one end and lug at the other end. Used with the monitor. Not applicable to 21128 speed sensor housing. Minimum length: 2.0 feet (0.6 meters) Maximum length: 99 feet (30 meters) 84661-NN dual core twisted shielded 22 AWG armored cable with dual socket moisture-proof female connector at one end and lug at the other end.
Use with Monitor
Not applicable to 21128 speed sensor housing. Minimum length: 3.0 feet (0.9 meters) Maximum length: 96 feet (29 meters) 89477-NN double conductor 18 AWG twisted shielded cable with right angle double socket plug at one end and lug at the other end. Used with monitor and 21128 speed sensor housing. Minimum length: 2.0 feet (0.6 meters) Maximum length: 99 feet (30 meters) 125065-NN double wire 18 AWG stranded, 330500 Velomitor piezoelectric speed sensor data sheet 6/11 141632 Rev. N Part number description Shielded cable with two socket plugs and fluorosilicone rubber sheath at one end and lug at the other end. Used with the monitor. Not applicable to 21128 speed sensor housing. Minimum length: 2.0 ft (0.6 m) Maximum length: 99 ft (30 m) Speed sensor housing assembly 21128-AA-BB A: Installation thread option 01 Unthreaded 02 3/4-14 NPT 03 1/2-14 NPT04 1/2-12 BSP B: Cable outlet fitting option 01 1/2-14 NST plug 02 1/2-14 NFT explosion-proof 03 1/2-14 NPT explosion-proof belt When using 21128 housing for cable gland, the cable part number 89477-AA is necessary to connect the Velomitor sensor to the monitor. Speed Sensor Housing – CENELEC approved 107770-AA-BB This version is a combination of the 330500 Velomitor Sensor and the factory pre installed 21128 housing. It is also suitable for CENELEC Zone 1 Group IIC hazardous area applications. A: Mounting thread option 01 Unthreaded 02 3/4-14 NPT 03 1/2-14 NPT04 1/2-14 BSP B: Cable outlet connector
