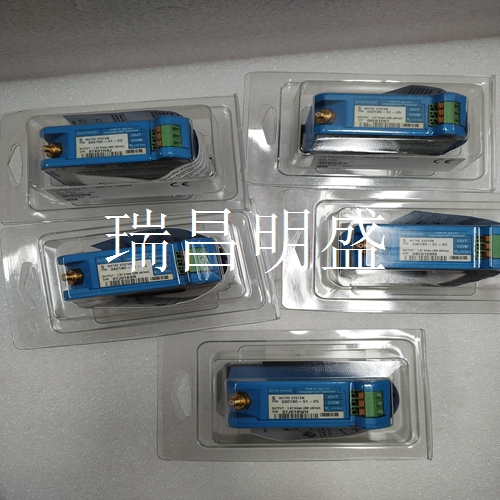

330180-51-05前置控制器
统事件列表消息
以下系统事件列表消息可由机架接口模块置于列表中，并按数字顺序列出。如果发生标有星号（*）的事件…•提供消息的机架接口I/O模块背面的主机链路将无法与主机通信•菊花链中的其他机架接口模块仍能与主机通信？数据管理器I/O模块的两个端口将停止通信如果您无法解决任何问题，联系最近的本特利内华达公司办公室。闪存故障事件编号：11事件分类：潜在问题措施：尽快更换机架接口模块。实时时钟故障事件编号：12事件分类：严重/致命事件行动：立即更换机架接口模块中的实时时钟。内部网络故障事件编号：30事件分类：严重/致命事件措施：立即更换机架接口模块。重新同步内部网络（重新同步内部网）事件编号：31事件分类：潜在问题措施：检查以下组件之一是否有故障：•机架接口模块•机架背板设备未通信事件编号：32事件分类：可能问题措施：检查以下组件之一有故障：？模块安装在插槽中•机架背板6故障排除3500/20操作和维护42设备正在通信事件编号：33事件分类：潜在问题措施：检查以下组件之一是否存在故障：•插槽中安装的模块•机架背背板配置令牌获取（配置令牌获取）
事件编号：
50事件分类：典型的记录事件特定事件：前、后、DM1（数据管理器端口1）、DM2（数据管理程序端口2）、ComGate（通信网关）指定端口可以下载配置、更改设置点、设置软件开关、启用/禁用机架报警抑制、启用/停用跳闸倍增或执行机架复位。措施：无需采取任何措施。配置令牌释放（配置令牌释放）事件编号：51事件分类：典型记录事件特定：前、后、DM1（数据管理器端口1）、DM2（数据管理端口2）、ComGate（通信网关）指定端口无法再下载配置、更改设定点、设置软件开关、启用/禁用机架报警抑制、启用/停用跳闸倍增、，或执行机架复位。措施：无需采取任何措施。配置令牌过期（配置令牌过期）事件编号：52事件分类：潜在问题措施：检查以下组件之一是否存在故障：•机架接口模块与运行机架配置软件的计算机之间的连接•机架接口模件•运行机架配置软件的计算机配置令牌覆盖（配置令牌覆盖）事件编号：53事件分类：典型记录事件操作：无需操作。
Statistics event list message
The following system event list messages can be placed in the list by the Rack Interface Module and listed in numerical order. If an event marked with an asterisk (*) occurs... • The host link on the back of the Rack Interface I/O Module that provided the message will not be able to communicate with the host • Other Rack Interface Modules in the daisy chain will still be able to communicate with the host? The two ports of the data manager I/O module will stop communicating. If you cannot solve any problems, contact the nearest Bentley Nevada office. Flash Failure Event Number: 11 Event Classification: Potential Problem Action: Replace the Rack Interface Module as soon as possible. Real time clock failure Event No.: 12 Event classification: critical/fatal event Action: Replace the real time clock in the Rack Interface Module immediately. Internal network failure Event No.: 30 Event classification: serious/fatal Event Action: Replace the Rack Interface Module immediately. Resynchronizing the internal network (resynchronizing the internal network) Event number: 31 Event classification: Potential problem Action: Check whether one of the following components is faulty: • Rack interface module • Rack backplane device does not communicate Event number: 32 Event classification: Possible problem Action: Check whether one of the following components is faulty:? The module is installed in the slot • Rack backplane 6 troubleshooting 3500/20 operation and maintenance 42 Device is communicating Event number: 33 Event classification: Potential problem Action: Check whether one of the following components is faulty: • Module installed in the slot • Rack backplane configuration token acquisition (configuration token acquisition)
Event Number:
50 Event classification: typical recorded event specific events: front, rear, DM1 (data manager port 1), DM2 (data manager port 2), ComGate (communication gateway) specified ports can download configuration, change setpoints, set software switches, enable/disable rack alarm suppression, enable/disable trip multiplication, or perform rack reset. Action: No action is required. Configuration Token Release (Configuration Token Release) Event Number: 51 Event Classification: Typical recorded events Specific: Front, Rear, DM1 (Data Manager Port 1), DM2 (Data Management Port 2), ComGate (Communication Gateway) The specified ports can no longer download configurations, change setpoints, set software switches, enable/disable rack alarm suppression, enable/disable trip multiplication, or perform rack reset. Action: No action is required. Configuration Token Expiration (Configuration Token Expiration) Event Number: 52 Event Classification: Potential Problem Action: Check whether one of the following components is faulty: • Connection between the Rack Interface Module and the computer running the Rack Configuration Software • Rack Interface Module • Computer running the Rack Configuration Software Configuration Token Override (Configuration Token Override) Event Number: 53 Event Classification: Typical Record Event Action: No Action Required.
