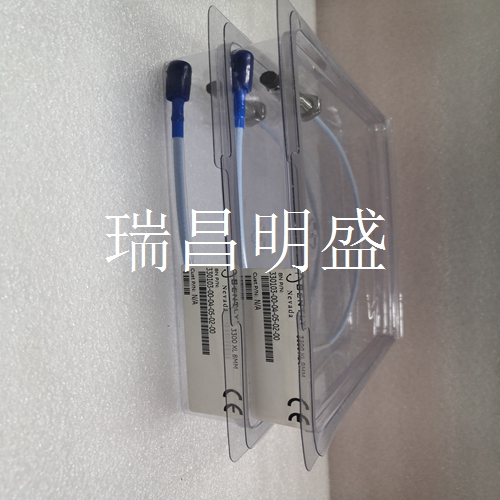

330103-00-04-05-02-00探头电缆
物理监视器模块尺寸
（长x宽x高）196.9 mm x 149.4 mm x 74.4 mm（7.75英寸x 5.88英寸x 2.93英寸）重量0.77 kg带窗口，300.2 mm x 249.4 mm x 209.8 mm（11.82英寸x 9.82英寸x 8.26英寸）配置软件1900配置软件包包含安装、配置和维护1900/65A监视器所需的一切。l用于安装和故障排除的功能工具l简单的显示有助于配置l能够浏览1900台监视器的网络l网络配置l信道、变量、设置点、标签名称的配置，记录器和过滤器l可选Modbus网关的配置l继电器和继电器表决逻辑的配置l硬件不可用时允许使用软件的离线配置l固件升级功能和诊断l实时更改旁路模式和设置点l状态和变量的显示组件l显示硬件标识和制造信息l环境特定帮助环境温度操作-20至+70ºC（-4至+158ºF）存储-30至+90ºC，最大支持传感器通道类型Bently Nevada传感器加速度和往复加速度330400加速计330425加速计速度和往复速度190501 Velomitor 330500 Velomiter 330525 Velomittor 330750 Velomitr径向振动、推力，和速度3300 5&8 mm前置器系统3300 XL 8mm前置器系统330 XL 11mm前置器3300 XLNSv前置器系统7200 5&8mm前置程序系统7200 11mm前置程序系统1900/65A通用设备监测器数据表10/22 173401修订版。T位置3300 5&8 mm前置器系统3300 XL 8mm前置器系统330 XL 11mm前置器3300 XL25mm前置器3300XL 50mm前置器系统3200 XL NSv前置器系统7200 5&8mm前置系统7200 11mm前置系统720014mm前置器1900/65A为Bently Nevada传感器提供了默认配置设置。用户可以配置1900/65A以接受其他传感器。
操作流程
1900/65A通用设备监测器数据表11/22 173401修订版T合规性和认证FCC本设备符合FCC规则第15部分的要求。操作必须符合以下两个条件：l本设备可能不会造成有害干扰。l此设备必须接受接收到的任何干扰，包括可能导致不期望操作的干扰。EMC EN 61000-6-2:2005 EN 61000-6-4:2007+A1:2001 EMC指令2014/30/欧盟电气安全EN 61010-1:2010 LV指令2014/35/欧盟ATEX EN 60079-0:2012 EN 60079-15:2010 ATEX指令2014/44/欧盟RoHS RoHS指令2011/65/欧盟海事ABS 2009钢制船舶规则1-1-4/7.7,4-8/1.11.1,4-7/13危险区域批准有关国家和产品特定批准的详细列表，请参阅www.Bently.com上的《批准快速参考指南》（108M1756）。该监测器未经认证可安装在1类1区位置，但它将通过使用电流隔离器和屏障支持安装在1区位置的传感器。如果使用电流隔离器，则无需对安装进行任何更改。可拆卸的接地跳线允许监视器支持齐纳栅安装。卸下跳线将断开监视器上的电路公用线与机箱的连接，以便机箱可以连接到屏障上。CSA/NRTL/C Ex/AEx nA nC IIC Gc：I级，2区：I级2区，A、B、C组，根据图纸173089 ATEX/IECEx II 3 G Ex nAC IIC T4 Gc T4@Ta=-20°C[Ta[+70°C特殊注意事项l危险区域安装要求继电器触点电压低于30 Vac rms，或30 Vdc以将危险降至最低。l危险区域装置要求继电器触点电流低于5 Amps DC或AC以将危险降到最低。
Physical Monitor Module Dimensions
(L x W x H) 196.9 mm x 149.4 mm x 74.4 mm (7.75 inches x 5.88 inches x 2.93 inches) Weight 0.77 kg with window, 300.2 mm x 249.4 mm x 209.8 mm (11.82 inches x 9.82 inches x 8.26 inches) Configuration software The 1900 configuration software package contains everything you need to install, configure, and maintain the 1900/65A monitor. L Function tools for installation and troubleshooting l Simple display is helpful for configuration l Network configuration l Configuration of channels, variables, setpoints and label names, Recorder and filter l Configuration of optional Modbus gateway l Configuration of relay and relay voting logic l Offline configuration of software is allowed when hardware is not available l Firmware upgrade function and diagnosis l Real time change of bypass mode and setpoint l Display components of status and variables l Display hardware identification and manufacturing information l Environment specific help Ambient temperature operation - 20 to+70 º C (- 4 to+158 º F) Storage - 30 to+90 º C, Maximum Supported Transducer Channel Type Bently Nevada Transducer Acceleration and Reciprocating Acceleration 330400 Accelerometers 330425 Accelerometers Velocity and Reciprocating Velocity 190501 Velomitor 330500 Velomitor 330525 Velomitor 330750 Velomitor Radial Vibration, Thrust, Speed 3300 5&8 mm Proximitor System 3300 XL 8mm Proximitor System 330 XL 11mm Proximitor 3300 XLNSv Proximitor System 7200 5&8mm Proximitor System 7200 11mm Proximitor System 1900/65A Universal Equipment Monitor Data Sheet 10/22 173401 Rev. T Position 3300 5&8mm Proximitor System 3300 XL 8mm Proximitor System 330 XL 11mm Proximitor 3300 XL25mm Proximitor 3300XL 50mm Proximitor System 3200 XL NSv Proximitor System 7200 5&8mm Proximitor System 7200 11mm Proximitor System 720014mm Proximitor 1900/65A provides the default configuration settings for Bently Nevada sensors. You can configure 1900/65A to accept other sensors.
Operation process
1900/65A Universal Equipment Monitor Data Sheet 11/22 173401 Rev. T Compliance and Certification FCC This equipment complies with the requirements of Part 15 of the FCC Rules. Operation must meet the following two conditions: l This equipment may not cause harmful interference. L This equipment must accept any interference received, including interference that may cause undesired operation. EMC EN 61000-6-2:2005 EN 61000-6-4:2007+A1:2001 EMC Directive 2014/30/EU Electrical Safety EN 61010-1:2010 LV Directive 2014/35/EU ATEX EN 60079-0:2012 EN 60079-15:2010 ATEX Directive 2014/44/EU RoHS Directive 2011/65/EU Maritime ABS 2009 Steel Vessel Rules 1-1-4/7.7,4-8/1.11.1,4-7/13 For a detailed list of country and product specific approvals, please refer to www.Bently Approval Quick Reference Guide (108M1756) on. com. This monitor is not certified for installation in Class 1, Zone 1 locations, but it will support sensors installed in Zone 1 locations by using current isolators and barriers. If current isolators are used, no changes to the installation are required. The removable ground jumper allows the monitor to support zener grid mounting. Removing the jumper will disconnect the circuit common on the monitor from the chassis so that the chassis can be connected to the barrier. CSA/NRTL/C Ex/AEx nA nC IIC Gc: Class I, Zone 2: Class I, Zone 2, Groups A, B, C, as per drawing 173089 ATEX/IECEx II 3 G Ex nAC IIC T4 Gc T4@Ta =-Special precautions for 20 ° C [Ta [+70 ° C l Hazardous area installation requires that the relay contact voltage be less than 30 Vac rms, or 30 Vdc to minimize the hazard. l Hazardous area installation requires that the relay contact current be less than 5 Amps DC or AC to minimize the hazard.
