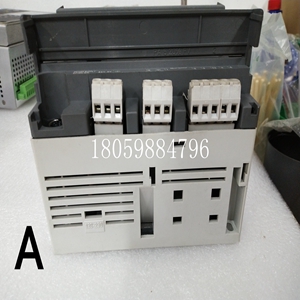

07KR51 24VDC PLC模块卡件
由FIP总线接口单元
构成的网络也被认为是一种远程I/O机架。一个I/O站最多可容纳8个现场控制模块。BIU要编辑现场控制I/O站的硬件配置，请在网络配置工具窗口的左窗格中选择其图标，然后选择工具–编辑硬件配置。这将启动CIMPLICITY Control 90软件。从网络配置工具输入的信息将已经到位。要编辑现场控制I/O站的硬件配置：1.在网络配置工具窗口的左窗格中选择其图标。2.在“工具”菜单上，单击“编辑硬件配置”。这将启动CIMPLICITY Control 90软件。从网络配置工具输入的信息将已经到位。按照BIU用户手册中的详细说明，以正常方式配置总线接口单元和I/O模块。
在FIP网络中使用时
现场控制产品没有特殊参数。3 GFK-1038A第3章配置3-19定义MPS交换机完成远程I/O机架的硬件配置后，返回网络配置工具，编辑连接到网段的设备之间的数据交换。您必须：为每个PLC定义以下交换信息：网络上的其他设备将成为PLC的通信对象。PLC生成的所有应用程序变量的名称、数据类型、长度、传输时隙和使用者。PLC产生的所有系统变量的时隙和用户。为每个远程I/O机架定义以下交换信息：I/O机架的对应方I/O模块和特定模块TVA的对应方远程I/O机架系统TVA数据的使用者您还可以修改单个模块TVA传输时隙为通用设备定义以下交换信息：设备应用程序的参数COMV。
By FIP bus interface unit
The network is also considered as a remote I/O rack. One I/O station can accommodate up to 8 field control modules. BIU To edit the hardware configuration of the field control I/O station, select its icon in the left pane of the Network Configuration Tool window, and then select Tools – Edit Hardware Configuration. This will launch the CIMPLICITY Control 90 software. The information entered from the network configuration tool will already be in place. To edit the hardware configuration of the field control I/O station: 1. Select its icon in the left pane of the Network Configuration tool window. 2. On the Tools menu, click Edit Hardware Configuration. This will launch the CIMPLICITY Control 90 software. The information entered from the network configuration tool will already be in place. Configure the bus interface unit and I/O module in the normal way according to the detailed instructions in the BIU user manual.
When used in FIP networks
There are no special parameters for on-site control products. 3 Configuration 3-19 in Chapter 3 of GFK-1038A defines the MPS switch. After completing the hardware configuration of the remote I/O rack, return to the network configuration tool to edit the data exchange between devices connected to the network segment. You must: define the following exchange information for each PLC: Other devices on the network will become the communication object of the PLC. Name, data type, length, transmission time slot and user of all application variables generated by PLC. Time slots and users of all system variables generated by the PLC. Define the following exchange information for each remote I/O rack: counterpart of I/O rack I/O module and counterpart of specific module TVA User of remote I/O rack system TVA data You can also modify single module TVA transmission timeslot to define the following exchange information for general equipment: parameter COMV of equipment application program.
