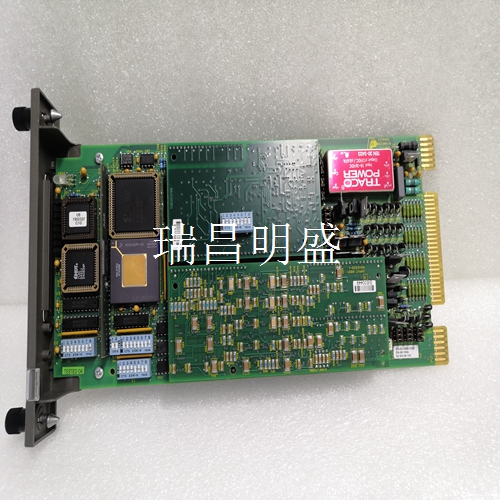

57340001-T DSPB120 工控机器人备件
产品数据表
com S710D双向多协议数据g概述S710D数据收发器通过两条多模光纤提供多协议数据的双向传输。数据翻译S710D还具有独特的数据翻译功能，允许输入一种数据格式并输出不同格式。数据格式在安装过程中选择，可通过旋转开关在现场轻松更改。高级诊断SMARTS™ 诊断技术提供了广泛的系统状态LED阵列。可以使用内置数据传输测试生成器测试数据路径的完整性。不需要连接到外部数据设备。标准功能l通过两条多模光纤进行双向数据传输支持多协议数据格式，包括RS-232、TTL、RS-422、RS-485、曼彻斯特、Biphase和SensorNet l
l独特的数据转换功能l用户可配置的数据格式l 13 dB光预算l光AGC l SMARTS™ 诊断l独立和机架配置S710D双向多协议数据规范数据l通道：1个双工格式：RS-232（3线/5线）、TTL、RS-422、RS-485（2线/4线），曼彻斯特、双相、SensorNet、，DTMF控制l l波特率：250 kbps至512 kbps（取决于数据格式）l误码率：<1.0E-9光学l模式：多模l光学预算：13 dB l发射器：LED l波长：850 nm l工作距离：3.2 mi（5.2 km）l增益控制：光学自动增益控制（OAGC）l发射器发射功率：-17 dBm l接收器灵敏度：-30 dBm电气l输入功率：13.5 VDC调节l电流要求：220 mA l功耗：3.5 W l功率因数：2 l保护：固态短路保护l电源：613P型（可选）环境l工作温度：-40至167°F（-40至75°C）l最大湿度：95%相对湿度，非冷凝标准l排放：FCC第15部分，ICES-003，AS/NZS 3548，EN55022 l抗扰度：ENV50204，EN61000-4-2，-3，-4，-5，-6，-11 l安全：UL 1950，CAN/CSA 22.2，NO.950-95机械尺寸（LWD），独立单元：5.0“x 2.8”x 1.5“l尺寸，机架单元：1个插槽（1.0”）l重量：独立0.22 lbs（0.1 kg）；机架0.55磅（0.25千克）l结构：塑料（独立） ，STE 250 Corvallis 。 com传真305-267-4300作为一家创新型公司， Security保留更改产品规格的权利，恕不另行通知。有关最新的产品规格，
Product Data Sheet
Com Overview of S710D bidirectional multi protocol data g The S710D data transceiver provides bidirectional transmission of multi protocol data through two multimode optical fibers. The data translation S710D also has a unique data translation function, allowing the input of one data format and the output of different formats. The data format is selected during installation and can be easily changed in the field through rotary switch. Advanced Diagnostics SMARTS ™ Diagnostic technology provides a wide range of system status LED arrays. You can use the built-in data transmission test generator to test the integrity of the data path. You do not need to connect to an external data device. Standard function l Bidirectional data transmission through two multimode optical fibers supports multi protocol data formats, including RS-232, TTL, RS-422, RS-485, Manchester, Biphase and SensorNet
L Unique data conversion function l User configurable data format l 13 dB optical budget l Optical AGC l SMARTS ™ Diagnosis l Independent and rack configuration S710D two-way multi protocol data specification data l Channel: 1 duplex format: RS-232 (3-wire/5-wire), TTL, RS-422, RS-485 (2-wire/4-wire), Manchester, Biphase, SensorNet, DTMF control l l Baud rate: 250 kbps to 512 kbps (depending on the data format) l Bit error rate:<1.0E-9 Optical l Mode: multi-mode l Optical budget: 13 dB l Transmitter: LED l Wavelength: 850 nm l Working distance: 3.2 mi (5.2 km) l Gain control: Optical automatic gain control (OAGC) L Transmitter transmitting power: - 17 dBm l Receiver sensitivity: - 30 dBm Electrical l Input power: 13.5 VDC Regulation l Current requirements: 220 mA l Power consumption: 3.5 W l Power factor: 2 l Protection: solid state short circuit protection l Power supply: 613P type (optional) Environment l Operating temperature: - 40 to 167 ° F (- 40 to 75 ° C) l Maximum humidity: 95% relative humidity, non condensing standard l Emission: FCC Part 15, ICES-003, AS/NZS 3548, EN55022 l Immunity: ENV50204, EN61000-4-2, - 3, - 4, - 5, - 6, - 11 l Safety: UL 1950, CAN/CSA 22.2, NO.950-95 Mechanical dimensions (LWD), independent unit: 5.0 "x 2.8" x 1.5 "l dimensions, rack unit: 1 slot (1.0") l Weight: independent 0.22 lbs (0.1 kg); Rack 0.55 lb (0.25 kg) l Structure: plastic (independent), STE 250 Corvallis. Com Fax 305-267-4300 As an innovative company, Security reserves the right to change product specifications without notice. For the latest product specifications,
