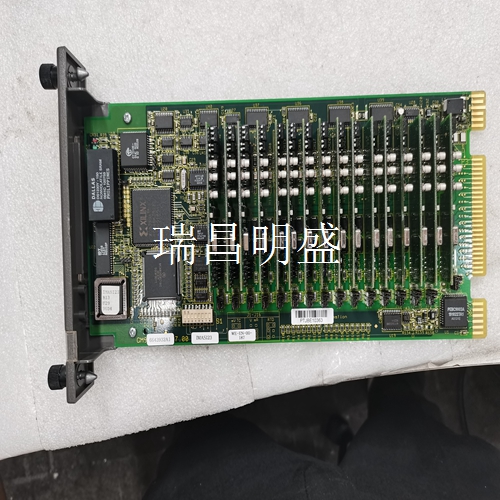

57360001-KG模块控制器
模块机械键控该模块包括一个机械键
可防止在给定插槽中一种模块类型意外替换另一种模块。该键适合连接器下方电路板上形状独特的区域。钥匙包含在每个模块中。首次安装模块时，钥匙锁在底板中央导轨上。拔出模块后，钥匙仍留在中央导轨中，将插槽配置为只接受相同的模块类型。如果在将钥匙锁在机架的中央导轨上后，需要更改模块在机架中的位置，则可以通过向上推动钥匙并将其从导轨上拔下，从而将其取下。然后，可以将其重新插入模块，并将模块插入机架中所需的位置。注意：只能将电源置于最左边的机架位置。现场接线模块的接线如图2所示。由于每组八个输出端与其他输出端隔离，因此需要从电源到每组电源输入端的接线（每组的电源输入端未连接在模块内部）。可拆卸现场接线端子板将接受#22（0.36 mm）至#14（2.10 mm）的导线尺寸。如果两条导线尺寸相同，则可以在给定接线片上终止两根导线。有40根#14（2.10 mm2）导线束穿过端子板空腔的空间。通过将电缆扎带穿过位于端子板下角的夹板，可以将线束固定到端子板上。
Module Mechanical Keying The module contains a mechanical key
Prevents one module type from accidentally replacing another in a given slot. This key is suitable for the uniquely shaped area on the circuit board below the connector. The keys are included in each module. When installing the module for the first time, the key is locked on the central guide rail of the backplane. When the module is removed, the key remains in the central rail and the slot is configured to accept only the same module type. If you need to change the position of the module in the rack after locking the key on the central rail of the rack, you can remove the key by pushing it up and pulling it off the rail. You can then reinsert it into the module and insert the module into the desired location in the rack. Note: Only place the power supply in the leftmost rack position. The wiring of the field wiring module is shown in Figure 2. Since each group of eight output terminals is isolated from other output terminals, wiring from the power supply to each group of power input terminals is required (the power input terminals of each group are not connected inside the module). Removable field terminal blocks will accept wire sizes from # 22 (0.36 mm) to # 14 (2.10 mm). If both wires are the same size, you can terminate both wires on a given lug. There are 40 # 14 (2.10 mm2) wire bundles passing through the space of the terminal board cavity. The harness can be fixed to the terminal strip by threading the cable tie through the clamp plate at the lower corner of the terminal strip.
可拆卸接线板
建议的现场接线程序将现场接线连接到此输入模块上的可拆卸接线板时，建议采用以下程序。下图说明了所有IC697输入/输出模块通用的以下程序中引用的模块特征。 铰链门端子板螺旋千斤顶螺旋线绑扎线绑扎带绑扎带捆扎带绑带绑扎线捆扎带图3输入/输出模件特征1。在拆卸或安装端子板之前，请关闭电源。打开模块上的铰链门，以接近将端子板牢牢固定到位的螺旋千斤顶。现在，通过逆时针转动螺旋千斤顶，直到其完全脱开，即可将可拆卸现场接线端子板从模块上拆下。2.要卸下端子板，抓住端子板的顶部并向外摆动。警告：请勿使用铰链门拆卸端子板。如果这样做，铰链门可能会损坏。3.端子板设计用于接受AWG#22（0.36 mm2）至AWG#14（2.10 mm2）的导线尺寸。重要的是，当使用AWG#14（2.10 mm2）导线对所有点进行布线时，最大绝缘直径不得超过.135英寸（3.43mm）。为确保正确连接，只有当两根导线的尺寸相同时，才可以将两根导线端接在任何一个端子上。4.端子板设计为最多可接受（40）AWG#14（2.10 mm2）导线。如果要使用AWG#14（2.10 mm2）电线，则应将电线标记放置在距离终端至少8英寸（203 mm）的位置，以便为铰链门提供足够的关闭空间。
Removable terminal block
Recommended Field Wiring Procedures When connecting field wiring to a removable terminal block on this input module, the following procedure is recommended. The following figure illustrates the module features referenced in the following procedure that are common to all IC697 I/O modules. Hinged door terminal board, screw jack, spiral wire, binding wire, binding tape, binding tape, binding wire, binding tape Figure 3, input/output module feature 1. Turn off the power before removing or installing the terminal strip. Open the hinged door on the module to gain access to the jackscrew that holds the terminal strip securely in place. The removable field terminal block can now be removed from the module by turning the jackscrew counterclockwise until it is fully disengaged. 2. To remove the terminal board, grasp the top of the terminal board and swing outward. Warning: Do not use the hinged door to remove the terminal board. If this is done, the hinged door may be damaged. 3. The terminal block is designed to accept wire sizes from AWG # 22 (0.36 mm2) to AWG # 14 (2.10 mm2). It is important that when AWG # 14 (2.10 mm2) wires are used to route all points, the maximum insulation diameter should not exceed. 135 inches (3.43 mm). To ensure proper connection, two wires can be terminated at any terminal only when they are the same size. 4. The terminal block is designed to accept up to (40) AWG # 14 (2.10 mm2) conductors. If AWG # 14 (2.10 mm2) wires are to be used, the wire markers shall be placed at least 8 inches (203 mm) from the terminals to provide adequate closing space for the hinged door.
