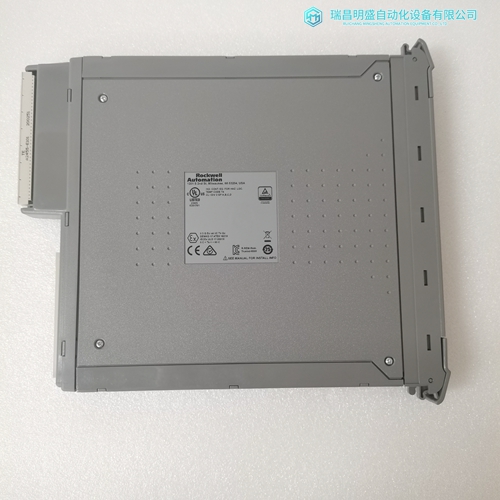

ICS TRIPLEX T8461C数字量处理模块
使用CIPconnect连接到模块
CIPconnect®可用于通过以太网将PC连接到MVI56E-SIE模块
使用罗克韦尔自动化公司的1756-ENBT EtherNet/IP®模块。
这允许配置MVI56E-SIE模块和网络,上传和下载文件,并且在以下情况下,不需要从PC查看网络和模块诊断
使用CIPconnect。所需的一切:
路径中任何1756-ENBT模块的IP地址和插槽号
任何1756 CNBx ControlNet的ControlNet节点号和插槽号路径中的桥接模块
目标ControlLogix机箱中MVI56E-SIE的插槽号(最后一个ENBT/CNBx和路径中的机箱)。
CIPconnect Path Editor允许PC和MVI56E-SIE之间的路径要定义的模块。PC的第一个连接始终是1756-ENBT(以太网/IP)模块。每行对应CIP路径中的一个物理机架。
如果MVI56E-SIE模块与第一个1756-ENBT位于同一机架中
模块中,选择RACK NO.1(机架1)并配置相关参数。
如果MVI56E-SIE在远程机架中可用(可通过ControlNet或以太网/IP),包括所有机架(使用ADD RACK按钮)。
参数说明源模块源模块类型。
此字段是自动选择的取决于最后一个机架的目标模块(1756-CNB或1756-ENBT)。
源模块IP地址源模块的IP地址(仅适用于1756-ENBT)
源模块节点地址源模块的节点地址(仅适用于1756-CNB)
目标模块选择与源模块关联的目标模块在机架中。源和目标之间的连接模块通过底板执行。
目标模块插槽编号目标MVI56E模块所在的插槽编号位于。
要使用CIPconnect路径编辑器,请执行以下步骤。
1配置连接到PC的1756-ENBT与MVI56ESIE模块之间的路径。
o如果模块位于远程机架中,则添加更多机架以配置完整路径
o路径只能包含ControlNet或Ethernet/IP网络。o最多支持六个机架。
2单击CONSTRUCT CIP PATH以文本格式构建路径
3单击“确定”以确认配置的路径。
Using CIPconnect to Connect
to the Module CIPconnect® can be used to connect a PC to the MVI56E-SIE module over Ethernet using Rockwell Automation’s 1756-ENBT EtherNet/IP® module. This allows for configuringof the MVI56E-SIE module and network, uploading and downloading of files, and viewing of network and module diagnostics from a PC. RSLinx is not required when using CIPconnect. All that is needed: The IP addresses and slot numbers of any 1756-ENBT modules in the path The ControlNet node numbers and slot numbers of any 1756-CNBx ControlNet Bridge modules in the path The slot number of the MVI56E-SIE in the destination ControlLogix chassis (the last ENBT/CNBx and chassis in the path).
The CIPconnect Path Editor allows
the path between the PC and the MVI56E-SIE module to be defined. The first connection from the PC is always a 1756-ENBT (Ethernet/IP) module. Each row corresponds to a physical rack in the CIP path. If the MVI56E-SIE module is located in the same rack as the first 1756-ENBT module, select RACK NO. 1 and configure the associated parameters. If the MVI56E-SIE is available in a remote rack (accessible through ControlNet or Ethernet/IP), include all racks (by using the ADD RACK button). Parameter Description Source Module Source module type. This field is automatically selected depending on the destination module of the last rack (1756-CNB or 1756-ENBT). Source Module IP Address IP address of the source module (only applicable for 1756-ENBT) Source Module Node Address Node address of the source module (only applicable for 1756-CNB) Destination Module Select the destination module associated to the source module in the rack. The connection between the source and destination modules is performed through the backplane. Destination Module Slot Number The slot number where the destination MVI56E module is located. To use the CIPconnect Path Editor, follow these steps. 1 Configure the path between the 1756-ENBT connected to the PC and the MVI56ESIE module. o If the module is located in a remote rack, add more racks to configure the full path. o The path can only contain ControlNet or Ethernet/IP networks. o The maximum number of supported racks is six. 2 Click CONSTRUCT CIP PATH to build the path in text format 3 Click OK to confirm the configured path.
公司主营产品图展示
产品优势
1:国外专业的供货渠道,具有价格优势
2:产品质量保证,让您售后无忧
3:全国快递包邮
4:一对一服务
公司主营范围简介
PLC可编程控制器模块,DCS卡件,ESD系统卡件,振动监测系统卡件,汽轮机控制系统模块,燃气发电机备件等,优势品牌:Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各种进口工业零部件、欧美进口模块。
产品广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、塑胶机械、电力、水利、水处理/环保、锅炉供暖、能源、输配电等等
