产品内容介绍

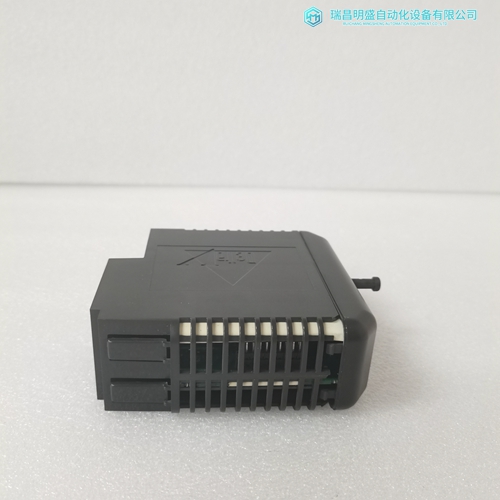

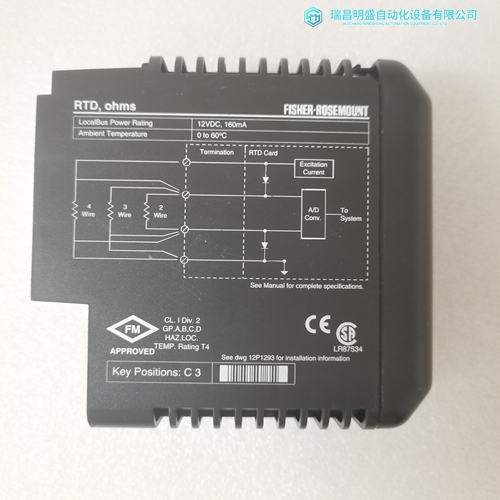

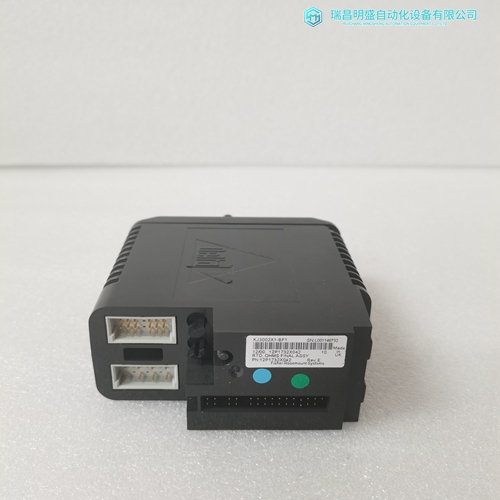

KJ3002X1-BF1模拟量输入卡件
写入寄存器开始
0至4999此参数指定模块内存中写入数据区域的开始。此中的数据区域将从处理器转入。
注：用户数据库总内存空间限于模块内存的前5000个寄存器，地址0到4999。因此，此参数的实际限制为4999减去为写入输入的值寄存器计数，以便写入数据区不会尝试扩展以上地址4999。
读取数据和写入数据区必须配置为占用模块内存中的单独地址范围，并且不应允许重叠。
写入寄存器计数0到5000此参数指定模块内存的写入数据区域的大小以及要从处理器传输到此内存区域的寄存器数，最多为最大值为5000字。
注：总读取寄存器计数和写入寄存器计数不能超过5000个总寄存器。读取数据和写入数据区必须配置为占用模块内存和不允许重叠。
失败标志计数如果该值大于零，协议通信将中断一次检测到背板故障，或与处理器的通信失败。值为零将禁用此功能。
初始化输出数据0=否，1=是此参数用于确定模块的输出数据是否使用处理器中的值初始化。
如果该值设置为0，则输出数据将为初始化为0。
如果该值设置为1，则将使用来自加工机使用此选项需要关联的梯形图逻辑来从处理器到模块。
客户端错误/状态指针-1至4990此参数设置客户端错误/状态所在的内部数据库中的地址将放置数据。如果错误/状态数据需要移动到处理器，并且放入ReadData数组中，输入的值应该是模块内存地址在“读取数据”区域中。
如果该值设置为-1，错误/状态数据将不会存储在模块的内部数据库，不会传输到处理器的ReadData大堆启用错误/状态指针是可选的。
或者处理器可以请求特定客户端，并以特殊客户端状态返回有关更多信息，请参阅客户端状态块（第131页）。
命令错误指针
-1至4999此参数设置命令错误列表所在的内部数据库中的地址将放置数据。如果要将命令错误列表数据移动到处理器并放入ReadData数组中，则输入的值应为模块读取数据区域中的内存地址。如果该值设置为-1，则命令错误列表数据不会存储在模块的内部数据库中，也不会传输到处理器的ReadData数组。
启用命令错误指针是可选的。或者，命令错误列表处理器可以请求特定客户机的数据，并以特殊格式返回客户端状态块。有关更多信息，请参阅客户端状态块（第131页）。
Write Register Start
0 to 4999 This parameter specifies the start of the Write Data area in module memory. Data in this area will be transferred in from the processor. Note: Total user database memory space is limited to the first 5000 registers of module memory, addresses 0 through 4999. Therefore, the practical limit for this parameter is 4999 minus the value entered for Write Register Count, so that the Write Data Area does not try to extend above address 4999. Read Data and Write Data Areas must be configured to occupy separate address ranges in module memory and should not be allowed to overlap. Write Register Count 0 to 5000 This parameter specifies the size of the Write Data area of module memory and the number of registers to transfer from the processor to this memory area, up to a maximum value of 5000 words. Note: Total Read Register Count and Write Register Count cannot exceed 5000 total registers. Read Data and Write Data Areas must be configured to occupy separate address ranges in module memory and should not be allowed to overlap. Failure Flag Count If this value is greater than zero the protocol communication will be interrupted once a backplane failure is detected, or communication with the processor fails. A value of zero will disable this feature. Initialize Output Data 0 = No, 1 = Yes This parameter is used to determine if the output data for the module should be initialized with values from the processor. If the value is set to 0, the output data will be initialized to 0. If the value is set to 1, the data will be initialized with data from the processor. Use of this option requires associated ladder logic to pass the data from the processor to the module.
Client Error/Status Pointer
-1 to 4990 This parameter sets the address in the internal database where the Client error/status data will be placed. If the error/status data needs to be moved to the processor and placed into the ReadData array, the value entered should be a module memory address in the Read Data area. If the value is set to -1, the error/status data will not be stored in the module's internal database and will not be transferred to the processor's ReadData array. Enabling the Error/Status Pointer is optional. Alternatively, the error/status data for a specific Client can be requested by the processor and returned in a special Client Status block. For more information, see Client Status Blocks (page 131). Command Error Pointer -1 to 4999 This parameter sets the address in the internal database where the Command Error List data will be placed. If you want the Command Error List data to be moved to the processor and placed into the ReadData array, the value entered should be a module memory address in the Read Data area. If the value is set to -1, the Command Error List data will not be stored in the module's internal database and will not be transferred to the processor's ReadData array. Enabling the Command Error Pointer is optional. Alternatively, the Command Error List data for a specific Client can be requested by the processor and returned in a special Client Status block. For more information, see Client Status Blocks (page 131).
公司主营产品图展示
产品优势
1：国外专业的供货渠道，具有价格优势
2：产品质量保证，让您售后无忧
3：全国快递包邮
4：一对一服务
公司主营范围简介
PLC可编程控制器模块，DCS卡件，ESD系统卡件，振动监测系统卡件，汽轮机控制系统模块，燃气发电机备件等，优势品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各种进口工业零部件、欧美进口模块。
产品广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、塑胶机械、电力、水利、水处理/环保、锅炉供暖、能源、输配电等等
