产品详情介绍

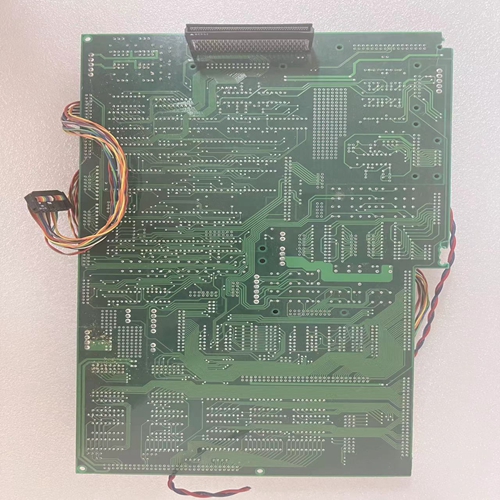

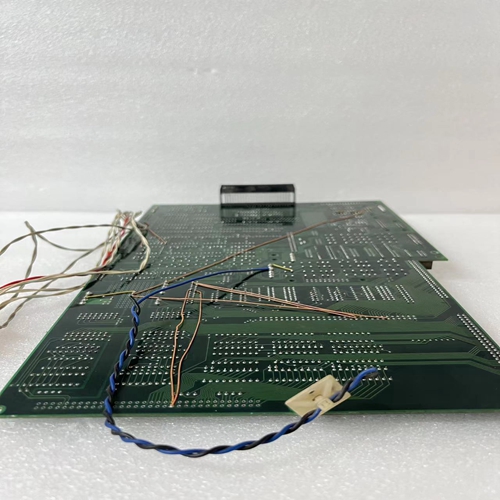

KOKUSAI BALEXT-SMP 1数控采集卡件
在最后一个通道E/A7（输入/输出7）扫描，再次按下测试按钮会导致指示灯亮起要执行的测试（LED测试）。所有8个LED都应亮起向上的松开按钮后，LED将显示插件底座上DIL开关的设置约5秒。LED 0显示开关的位置1号（LED 0…7分配给1…8号交换机）。
所有错误消息都存储在模块中，并且只能按下测试按钮10秒删除，或通过电源关闭/打开诊断A4.1简介07 KR 91/07 KT 92的诊断系统/07 KT 93旨在确保快速高效故障排除。为此，分类如下：诊断中的“垂直”、错误标志、反应、LED显示和确认，见第A4.7章。总线主机之间存在相互关系
中央单元和远程模块。中央单元读取远程模块的诊断数据已经发现了。中央致谢单元还会导致存储在要删除的远程模块。
4个错误类别中的“水平”，对应错误的严重程度，见第A4.7章。这个概念基于一个系统结构，包括一个总线主中央单元和几个远程模块，以及远程处理器。诊断系统
检测以下错误：总线主中央单元错误
CS31系统总线上的错误
远程模块中的错误上远程模块的接线错误工艺方面故障排除如下：中央单元07 KR 91、07 KT 92和07 KT 93给出初步提示，见第A4.3章。错误还显示远程模块检测到的在这里如果这些提示不够，错误标志必须被读出。有关错误标志的含义，请参阅第A4.7和A4.10章。
中央单元中的状态寄存器EW 07,15提供了用于诊断，参见第A4.9章。
远程模块指示其地区详细信息可通过以下方式获得按下模块上的测试键，参见第章A4.4、。After the last channel E/A7 (input/output 7) has been
scanned, pressing the test button again causes a lamp
test (LED test) to be performed. All the 8 LEDs should light
up. After the button has been released, the LEDs will
show the setting of the DIL switch on the plug-in base for
approx. 5 seconds. LED 0 shows the position of switch
No. 1 (LEDs 0...7 are assigned to the switches No. 1...8).
All error messages are stored in the module and can only
be deleted by pressing the test button for 10 seconds or
by power OFF/ON.Diagnosis
A4.1 Introduction
The diagnosis system of the 07 KR 91 / 07 KT 92 /
07 KT 93 is designed to ensure a quick and efficient
troubleshooting. For this purpose, it is classified:
”vertically” in diagnosis, error flags, reactions, LED
displays and acknowledgement, see chapter A4.7.
There are interrelations between the bus master
central unit and the remote modules. The central unit
reads the diagnosis data which the remote modules
have found out. An acknowledgement in the central
unit also causes the stored error messages in the
remote modules to be deleted.
”horizontally” in 4 error classes, in correspondence
with the severity of the error, see chapter A4.7.
This concept is based on a system structure consisting of
a bus master central unit and several remote modules,
and remote processors as well. The diagnosis system
detects the following errors:
Errors in the bus master central unit
Errors on the CS31 system bus
Errors in the remote modules
Errors in the wiring of the remote modules on the
process side
The troubleshooting is performed as follows:
The LEDs on the central unit 07 KR 91, 07 KT 92 and
07 KT 93 give first hints, see chapter A4.3. The errors
detected by the remote modules are also displayed
here.
If these hints are not sufficient, the error flags have to
be read out. For the meaning of the error flags, see
chapters A4.7 and A4.10.
The status register EW 07,15 in the central unit
supplies additional information to be used for the
diagnosis, see chapter A4.9.
The remote modules indicate errors occurring in their
area. Detailed information can be obtained by
pressing the test key on the modules, see chapter
A4.4.
