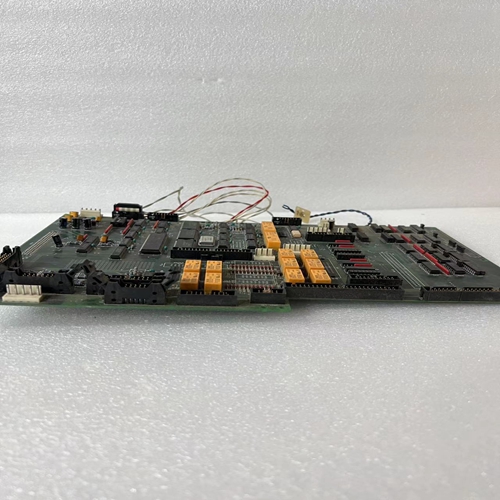

KOKUSAI BALEXT-SMP数控电路板
执行和读取I/O配置系统结构有以下可能性当使用07 KR 91、07 KT 92或07 KT 93作为公交车时
主控形状：通过总线主中央单元07 KR 91的用户程序，07 KT 92或07 KT 93，通过执行和读取I/O配置航站楼设施或从远程读取I/O配置模块。
通过执行和读取I/O配置用户程序
功能块CS31CO可用于I/O模块的配置。此功能块是
描述了编程软件907 PC 331在相应的文档中。
通过执行和读取I/O配置码头或TCZ的方式
此方法基于以下事实：07 KR 91、07 KT 92和07 KT 93使用对话编程接口上的语言，它允许I/O配置由执行和查询简单协议的方式；见第7.3卷第3章，“MAIL命令”。07 KR 91和07 KT 92/93通常配备I/O配置的特殊功能。
以下设备可用作终端：
商用终端，配备EIA–232接口，如VT100。
配备编程软件907的PCPC 331。所有接口数据都正确设置在“PLC通信2”主菜单项，子项“终端仿真”。
运行模式下的维修设备TCZ
1=端子，2=图表。模式，N=变速箱速度不变，9600波特。
读取I/O配置和诊断数据
远程模块
读取的I/O配置和诊断数据远程模块的I/O终端将显示在以下是设备ICSC 08 L1的示例。这个测试按钮4，LED显示模块的1必须用于此的。
第一次按下测试按钮时，通道选择E/A0（输入/输出0）：LED 0闪烁。之后释放按钮，此通道的诊断数据由黄色LED 0至7显示约3秒。
LED具有以下含义：
0 UE=单元错误
1 BE=总线错误
2未使用
3 CI/CO=输入/输出断线
4 OL=过载
5 SC=短路
6输出配置
7作为输入的配置如果LED 6和7同时亮起，则通道配置为组合输入/输出。
LED 2的含义也印在前面模块的面板。
对其他每个通道重复此操作按下并释放测试按钮的时间。
Performing and reading the I/O
configuration
There are the following possibilities for system structures
when using 07 KR 91, 07 KT 92 or 07 KT 93 as bus
master:
Performing and reading the I/O configuration via the
user program of the bus master central unit 07 KR 91,
07 KT 92 or 07 KT 93,
Performing and reading the I/O configuration by
means of the terminal or
Reading the I/O configuration from the remote
modules.
Performing and reading the I/O configuration via
the user program
The function block CS31CO is available for the I/O
configuration of the modules. This function block is part of
the programming software 907 PC 331 and is described
in the corresponding documentation.
Performing and reading the I/O configuration by
means of the terminal or TCZ
This method is based on the fact that the central units
07 KR 91, 07 KT 92 and 07 KT 93 use a dialogue
language at the programming interface which allows the
I/O configuration to be performed and interrogated by
means of simple protocols; see volume 7.3, chapter 3,
”MAIL command”.
07 KR 91 and 07 KT 92/93 are generally equipped with
the special function for I/O configuration.
The following devices can be used as terminal:
A commercially available terminal equipped with an
EIA–232 interface, such as VT100.
A PC equipped with the programming software 907
PC 331. All the interface data are correctly set under
the main menu item of ”PLC communication 2”,
sub-item ”Terminal emulation”.
The service device TCZ in the operating mode
1 = TERMINAL, 2 = CHAR.MODE, N = transmission
speed unchanged, 9600 Baud.
Reading I/O configuration and diagnosis data at the
remote module
Reading the I/O configuration and the diagnosis data for
an I/O terminal of a remote module will be shown in the
following for the device ICSC 08 L1 as an example. The
test button 4 and the LED displays 1 of the module
have to be used for this purpose.
When the test button is pressed for the first time, channel
E/A0 (input/output 0) is selected: LED 0 flashes. After
releasing the button, the diagnosis data of this channel
are shown by the yellow LEDs 0 to 7 for approx. 3
seconds.
The LEDs have the following meaning:
0 UE = Unit error
1 BE = Bus error
2 not used
3 CI/CO = Cut wire of inputs/outputs
4 OL = Overload
5 SC = Short circuit
6 Configuration as output
7 Configuration as input
If the LEDs 6 and 7 light up at the same time, the
channel is configured as a combined input/output.
The meaning of the LEDs 2 is also printed onto the front
panel of the module.
The operation is repeated for the other channels each
time the test button is pressed and released.
