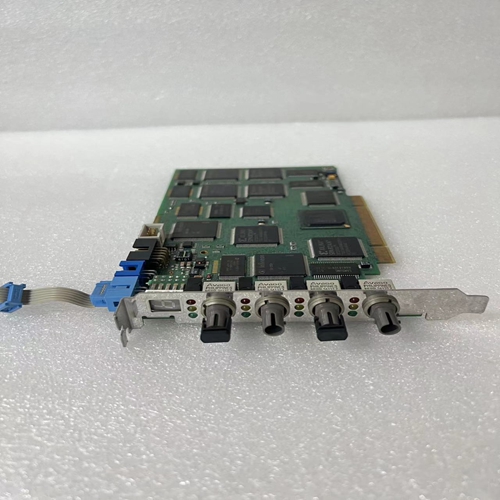

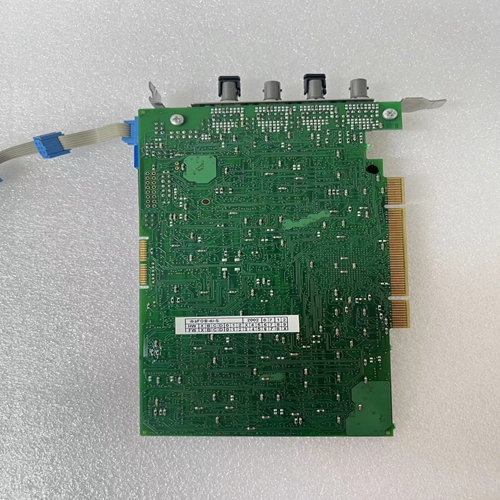

IBA ibaFOB-4i-S工业数据采集卡
二进制模块的设置和诊断
下表概述了I/O配置和相关诊断功能用于不同的模块类型。说明功能完全可用。设置和错误可以从相关频道进行询问。
部分功能可用，请参阅模块说明。
1） 关于设置和诊断数据，请参见模块说明和章节“读取I/O配置和诊断模块中的数据”（见下文）。BE总线错误=总线故障，始终受到监控。这个模块未收到总线主控器的呼叫，
e、 因为公交线路断了。CI输入断线=断路（监控）输入（如果已配置）。每个输入电路监控装置必须配备一个电阻20…30 k，例如与信号触点并联。CO切断输出线=断路（监控）输出（如果已配置）。每个输出都需要
当ON信号为输出ID输入延迟=信号延迟时间的变化输入。
仅IO输入=每个终端（通道）可以配置为仅作为输入（而不是作为组合输入/输出）。
仅限OO输出=此模式通过开关设置
在插入式底座ECZ上。无法通过I/O进行设置配置，请参阅模块说明。
OL过载（始终受到监控）。
SC短路（始终受到监控）。
UE单元错误=模块的内部错误（故障）（始终尽可能监控内部处理器检测到此）。说明：1） 关于设置和诊断数据，请参见模块说明和章节“读取I/O配置和诊断模块中的数据”（见下文）。*)通过开关改变范围，激活断路通过I/O配置进行监控BE总线错误=总线故障，始终受到监控。这个模块未收到总线主控器的呼叫，e、 因为公交线路断了。OE输出错误=输出电路中的错误。
ICSA 04 B5：配置为4…20毫安。
ICSM 06 A6：配置为+10伏。UE单元错误=模块的内部错误（故障）（始终尽可能监控内部处理器检测到这一点）。
A出厂设置K通过I/O配置更改范围通过CS31系统总线S通过DIL开关改变量程模块后侧V电压和电流之间的转换额外的外部跳线。无规范，如果只需使用另一个终端。
Settings and diagnosis on binary modules
The following tables give you an overview on the I/O
configurations and the diagnosis functions related to
them for the different module types.Explanation
Feature is completely available. Settings and errors
can be interrogated from the involved channel.
() Feature is partly available, see module description.
1) Concerning the interrogation of settings and
diagnosis data, see the module description and
chapter ”Reading I/O configuration and diagnosis
data at the module” (see below).
BE Bus Error = Bus malfunction, always monitored. The
module does not receive a call from the bus master,
e.g. because of a broken bus line.
CI Cut Wire of Inputs = Open circuit (monitoring) at
inputs, if configured. Each input circuit to be
monitored has to be equipped with a resistor of
20...30 k, e.g. in parallel to the signalling contact.
CO Cut Wire of Outputs = Open circuit (monitoring) at
outputs, if configured. Each output expects a
minimum load of approx. 40 mA when an ON signal is
output.
ID Input Delay = Change of the signal delay time at
inputs.
IO Input only = Each terminal (channel) can be
configured so that it works only as an input (not as
combined input/output).
OO Output only = This mode is set by means of a switch
on the plug-in base ECZ. Setting is not possible by I/O
configuration, see the module description.
OL Overload (is always monitored).
SC Short circuit (is always monitored).
UE Unit error = internal error (fault) of the module (always
monitored in so far as the internal processor can
detect this).
Explanation: 1) Concerning the interrogation of settings and diagnosis data, see the module description and chapter ”Reading I/O configuration and diagnosis data at the module” (see below). *) Changing range by switch, activating the open-circuit monitoring by I/O configuration BE Bus Error = Bus malfunction, always monitored. The module does not receive a call from the bus master, e.g. because of a broken bus line. OE Output Error = Error in the output circuit. ICSA 04 B5: Open circuit at outputs configured to 4...20 mA. ICSM 06 A6: Short circuit at outputs configured to + 10 V. UE Unit error = internal error (fault) of the module (always monitored in so far as the internal processor can detect this). A Factory setting K Changing the range by means of the I/O configuration via the CS31 system bus S Changing the range by means of DIL switches on the rear side of the module V Change-over between voltage and current by means of an additional external jumper. No specification if only another terminal has to be used.
