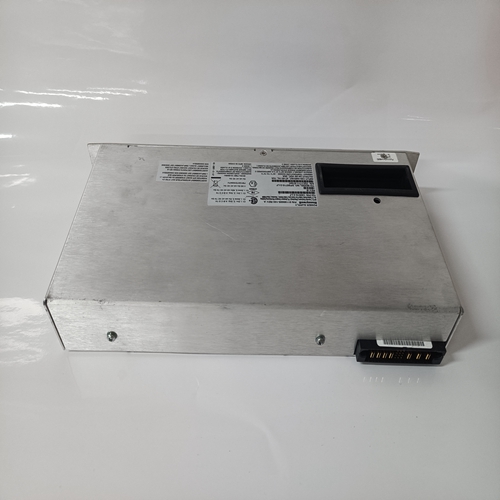

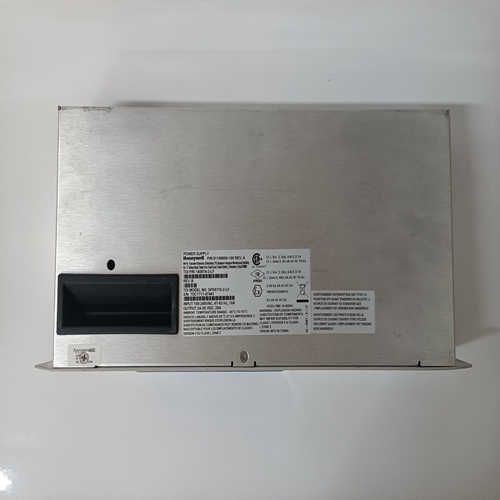

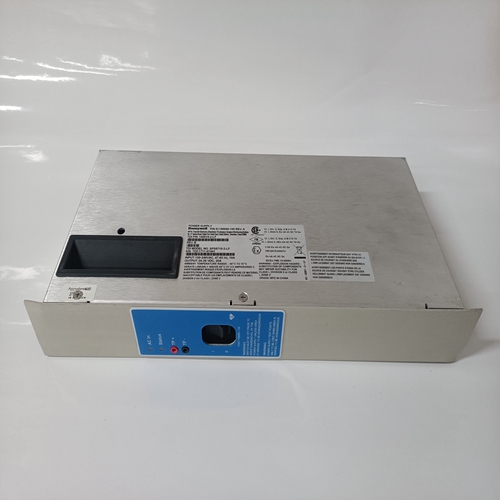

HONEYWELL 51198685-100控制模块
XVME-660 VME总线Intel®Celeron™/与奔腾®；III PC兼容的VME总线处理器模块结合了VME总线的高性能和加固封装拥有IBM PC/AT标准的广泛应用软件基础。它集成了最新的处理器和芯片组技术。模块功能
XVME-660具有以下特点：
基于Intel Celeron 566 MHz或Pentium III 700 MHz Socket 370的CPU66 MHz（赛扬处理器）或100 MHz（奔腾III处理器）前端总线高达256 MB SDRAM（一个144针SODIMM）128 KB（赛扬处理器）或256 KB（奔腾III处理器）片上二级缓存具有4 MB SDRAM的高性能64位AGP图形控制器PCI增强型IDE控制器与DMA-33 PCI SCSI控制器，16位UltraSCSI，最高40 MBps带前置RJ-45连接器的10/100 Mbps PCI以太网控制器IDE压缩闪存站点（使用辅助IDE控制器）
PCI到VME总线接口与DMA两个高速16550兼容串行端口；COM1可配置为RS-485或RS-232C通用串行总线（USB）端口EPP/ECP可配置并行端口PS/2风格键盘和鼠标端口
Industry Pack（IP）扩展站点PCI夹层卡（PMC）扩展站点（5 V）看门狗定时器可配置硬件字节交换逻辑建筑学CPU芯片Intel Pentium III处理器集成了P6 Dynamic Execution微体系结构、双处理器独立总线（DIB）体系结构，多事务系统总线，Intel MMX™ 媒体增强技术和“英特尔处理器序列号”。此外，它还提供互联网数据流单指令多数据扩展指令集，70条新指令支持高级成像，3D、流式音频和视频以及语音识别。Intel Pentium III处理器还有两个16 KB的一级缓存、指令和数据，以及一个256 KB的高级传输缓存（带纠错代码的全速同步二级缓存）。
奔腾III处理器支持100兆赫的前端总线。
Intel Celeron处理器集成了P6 Dynamic Execution微体系结构和Intel货币市场交易™ 媒体增强技术。Celeron处理器还有两个16 KB L1缓存、指令和数据，以及一个128 KB的统一非阻塞二级缓存。赛扬处理器支持66兆赫的前端总线。
车载存储器可用的内存记忆体XVME-660有一个用于单个144针SODIMM的插槽，可提供多达256 MB的SDRAM。XVME-660配置包括32 MB、64 MB、128 MB和256 MB。批准的SDRAM供应商列于附录A中。
闪存BIOSXVME-660系统BIOS包含在512 KB闪存设备中，以方便系统BIOS更新。
启动ROM站点此32针板载站点在生产过程中用于用引导ROM闪存BIOS。正常操作期间不应使用该场地。
The XVME-660 VMEbus Intel® Celeron™/Pentium® III PC-compatible VMEbus processor module combines the high performance and ruggedized packaging of the VMEbus
with the broad application software base of the IBM PC/AT standard. It integrates the
latest processor and chipset technology.
Module Features
The XVME-660 offers the following features:
Intel Celeron 566 MHz or Pentium III 700 MHz Socket 370 based CPU
66 MHz (Celeron processor) or 100 MHz (Pentium III processor) frontside bus
Up to 256 MB SDRAM (one 144-pin SODIMM)
128 KB (Celeron processor) or 256 KB (Pentium III processor) on-chip L2 cache
High-performance, 64-bit AGP graphics controller with 4 MB SDRAM
PCI enhanced IDE controller with DMA-33
PCI SCSI controller, 16-bit UltraSCSI up to 40 MBps
10/100 Mbps PCI Ethernet controller with front RJ-45 connector
IDE compact flash site (uses secondary IDE controller)
PCI-to-VMEbus interface with DMA
Two high-speed 16550-compatible serial ports; COM1 configurable to RS-485 or
RS-232C
Universal Serial Bus (USB) port
EPP/ECP configurable parallel port
PS/2-style keyboard and mouse ports
Industry Pack (IP) expansion site
PCI Mezzanine Card (PMC) expansion site (5 V)
Watchdog timer
Configurable hardware byte-swapping logic
Architecture
CPU Chip
The Intel Pentium III processor integrates P6 Dynamic Execution microarchitecture, Dual
Independent Bus (DIB) Architecture, a multi-transaction system bus, Intel MMX™ media enhancement technology, and the Intel Processor Serial Number. In addition, it offers
Internet Streaming SIMD Extensions, 70 new instructions enabling advanced imaging,
3D, streaming audio and video, and speech recognition. The Intel Pentium III processor
also has two16 KB L1 caches, instruction and data, and one 256 KB Advanced Transfer Cache (full speed, synchronous L2 cache with Error Correcting Code). The Pentium III
processor supports a 100 Mhz front-side bus.
The Intel Celeron Processor integrates P6 Dynamic Execution microarchitecture and Intel
MMX™ media enhancement technology. The Celeron processor also has two16 KB L1
caches, instruction and data, and one 128 KB unified, non-blocking L2 cache. The Celeron processor supports a 66 Mhz front-side bus.
Onboard Memory
SDRAM Memory
The XVME-660 has a socket for a single 144-pin SODIMM, providing up to 256 MB of
SDRAM. The XVME-660 configurations include 32 MB, 64 MB, 128 MB, and 256 MB.
Approved SDRAM suppliers are listed in Appendix A.
Flash BIOS
The XVME-660 system BIOS is contained in a 512 KB flash device to facilitate system
BIOS updates.
Boot ROM Site
This 32-pin onboard site is used during manufacture to flash the BIOS with a boot ROM.
This site should not be used during normal operation.
