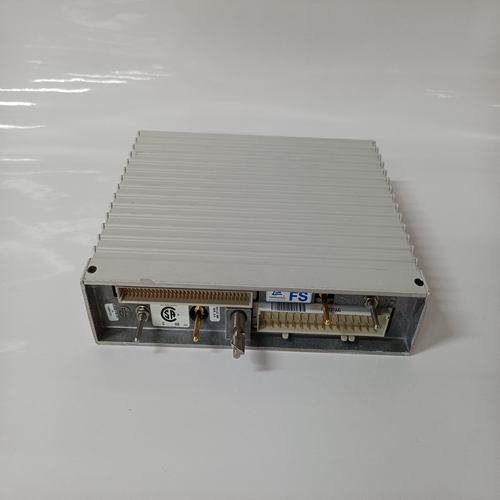

TRICONEX MP3101S2可编程控制模块
稳定性控制：稳定电路是一个速率反馈RC网络。
它包括电容器C4和C5、电阻器R7、R19和R20，以及稳定调整电位计R6。该RC网络注入稳定
来自调节器输出的信号，有助于防止发电机电压振荡。
低频限值（UFL）：UFL提供参考电压
所述误差检测器在所述发电机输出频率高于预定极限频率时是恒定的。当发电机操作慢于预定UFL操作阈值，
UFL将为误差检测器提供参考电压，即：比例更低。
UFL的参考电压由齐纳二极管Z1提供标准50Hz、60Hz和400Hz KCR的UFL运行阈值
上面给出了760个调节器。各种组件的操作包括UFL组件的系统在以下段落中描述。
感测变压器的电压为直流 由二极管D19和D21和直肠 ed信号应用于施密特触发器，包括：运算放大器 er IC2A、电阻器R47至R51和电容器C29.在输出端产生24 Vdc峰间方波IC2A，其频率为感测电压的两倍。
来自施密特触发器的24 Vdc方波被馈送至 rst两级单稳态多谐振荡器IC1的级及其相关
部分，其中在使感测电压的频率加倍。
5伏直流方波应用于单稳态多谐振荡器的第二级
这个单稳态多谐振荡器输出脉冲振幅均匀每个输入脉冲的持续时间。因此单稳态多谐振荡器输出端的集体脉冲为：与脉冲频率成正比。单稳态
多谐振荡器输出馈入四极巴特沃斯低通 过滤器由运算放大器组成 er IC2B和IC2C，电阻R60以及电容器C13至C18 滤波电路来自单稳态的集体脉冲的实际平均值多谐振荡器。放大 er增益设置在其输出等于在额定60Hz或400Hz工作时，由电阻器R65，当在50Hz的额定频率下操作时，通过拆下跨接线J1，将电路设置为50 Hz工作动作将R57添加到电路中。二极管D12和集成电路IC2D形成电压箝位电路。如果来自巴特沃斯的电压 lter等于齐纳参考，错误检测器的UFL输出将与齐纳参考和UFL对调节器操作没有影响。
然而，当来自 lter在以下过程中降低：发电机的低速运行，施加的参考电压到误差检测器的误差小于齐纳参考。这一行动将：使误差检测器差分信号按比例增加以一种方式，该方式将产生一个成比例的稍后接通信号调节器输出SCR。然后，调节器降低励磁和发电机输出电压降低。
The reference voltage to the UFL is supplied by Zener diode Z1. The UFL operational threshold for standard 50 Hz, 60 Hz, and 400 Hz KCR 760 regulators are given above. The operation of the various components comprising the UFL assembly is described in the paragraphs that follow. The voltage from the sensing transformer is recti ed by diodes D19 and D21, and the recti ed signal is applied to a Schmidt trigger consisting of operational ampli er IC2A, resistors R47 through R51, and capacitor C29. A 24 Vdc peak-to-peak square wave is generated at the output of IC2A at double the frequency of the sensing voltage. The 24 Vdc square wave from the Schmidt trigger is fed to the rst stage of a two-stage monostable multivibrator IC1 and associated parts, where it is decreased to a 5 Vdc peak-to-peak square wave at double the frequency of the sensing voltage. The 5 Vdc square wave is applied to the second stage of the monostable multivibrator. The monostable multivibrator output pulse is uniform in amplitude and duration for each input pulse. Thus, the average voltage level of the collective pulses at the output of the monostable multivibrator is directly proportional to the frequency of the pulses. The monostable multivibrator output is fed into a four-pole Butterworth low pass lter comprised of operational ampli er IC2B and IC2C, resistors R60 through R66, and capacitors C13 through C18. This ltering circuit does the actual averaging of the collective pulses from the monostable multivibrator. Ampli er gain is set at level where its output equals the Zener reference at rated 60 Hz or 400 Hz operation by resistors R65, R66, and capacitor C16. When operated at rated frequency of 50 Hz, the circuit is set for 50 Hz operation by removing jumper J1. This action adds R57 to the circuit. Diode D12 and integrated circuit IC2D form a voltage clamping circuit. If the voltage from the Butterworth lter is equal to that of the Zener reference, the UFL output to the error detector will be the same as the Zener reference and the UFL will have no effect on regulator operation. However, when the voltage from the lter decreases as occurs during underspeed operation of the generator, the reference voltage applied to the error detector is less than the Zener reference. This action will cause the error detector differential signal to proportionally increase in a manner that results in a proportionally later turn-on signal to the regulator output SCRs. The regulator then decreases excitation and a lowering of generator output voltage occurs.
