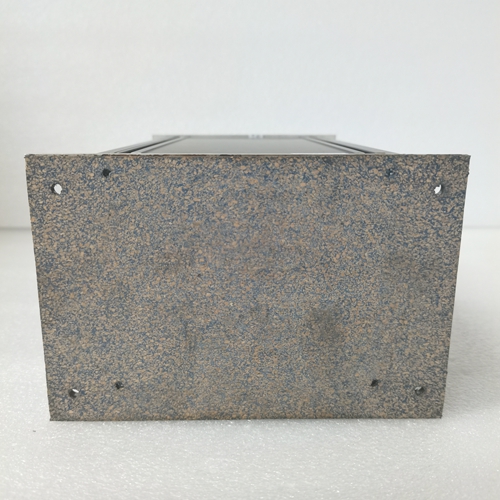

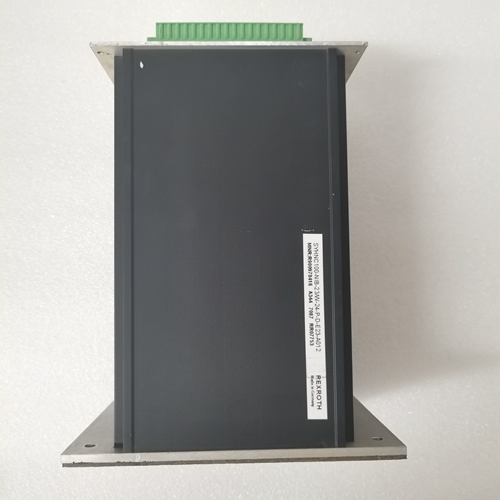

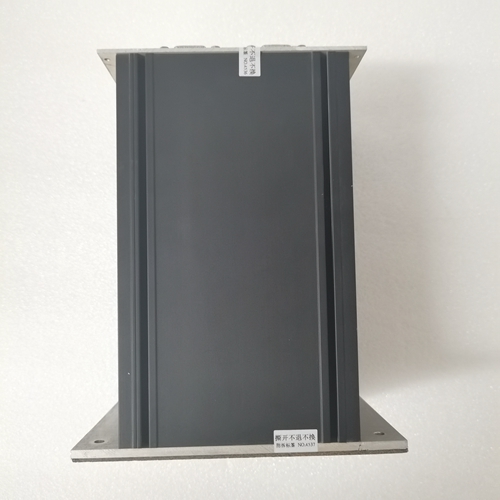

SYHNC100-NIB-23/W-24-P-D-E23-A012,驱动器
报警信号将显示在的七段显示屏上
控制板SDCS-CON-3，代码A
控制面板DCS 400以明文形式平移。警报信号将仅如果没有激活的故障信号，则显示。
除A9（紧急停止）外，报警信号：
不会导致驱动器停止。参数恢复
要在中启用数据丢失，请执行以下操作：
要检测的FlashProm参数扇区由校验和。可能会发生数据丢失
如果存在技术缺陷：如果在参数更改和5秒保存周期。为了安全原因是，在参数区域上方提供了第二个备份扇区，其中故障记录器保持更新副本。
如果在中检测到数据丢失参数扇区，此备份扇区将被激活，并且参数恢复。恢复操作触发A18-参数停止报警。这个然而，驱动器将保持功能，并且可以使用重置按钮确认报警。
必须检查最近输入的参数，必要时再次输入
只有在备份扇区中发现数据丢失时为安全起见，应禁用驱动器
原因和F2硬件故障触发，也可能与F4相伴-ParamChecksum错误。这些无法确认故障。
当您再次关闭和打开电子设备电源时，所有参数将重置为初始值（出厂设置）。
如果此FlashProm效果仍然存在，则下一次校验和检查
例程将再次触发故障停机
如果事实证明只是暂时的效果，驱动器必须在下一次启动前重新参数化，e、 g.通过复制（之前备份）参数从将控制面板插入驱动器。
即使该故障似乎有已在电子设备电源切换后消除打开，曾经是FlashProm硬件
已检测到问题，您必须预料到它可能会发生反复
Parameter Restored To enable data loss in the FlashProm to be detected, the parameter sector is secured by a checksum. Data loss may occur if there is a technical defect in the FlashProm or if the electronics supply is switched off between parameter change and the 5-second save cycle. For safety reasons, a second back-up sector is provided above the parameter area, where the parameters and the contents of the fault logger are kept as updated copies. If a data loss is detected in the parameter sector, this back-up sector will be activated, and the parameters restored. The restoration operation triggers the A18- ParameterRestored alarm. The drive will remain functional, however, and the alarm can be acknowledged using the reset button. The parameters most recently entered must be checked, and entered again if necessary. Only when a data loss is discovered in the back-up sector will the drive be disabled, for safety reasons, and the F2-Hardware fault triggered, which may also be accompanied by the F4- ParamChecksum fault. These faults cannot be acknowledged. When you switch the electronics supply off and on again, all parameters will be reset to their initial values (factory settings). If this FlashProm effect still persists, the next checksum check routine will again trigger a shutdown on fault. If it proves to have been a temporary effect, the drive must be reparameterised before the next start-up, e.g. by copying the (previously backed-up) parameters set from the control panel into the drive. Even if this fault appears to have been eliminated after the electronics supply has been switched on, once a FlashProm hardware problem has been detected, you have to expect that it may occur repeatedly.
