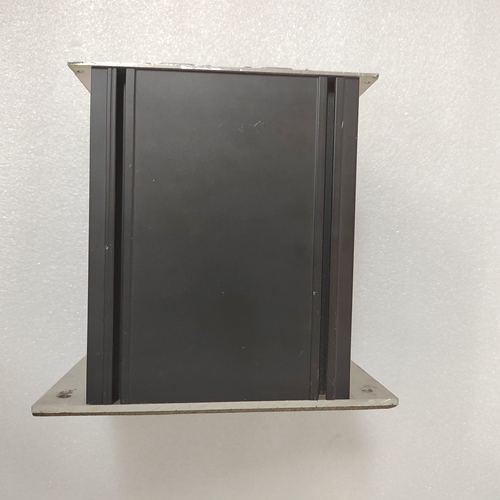

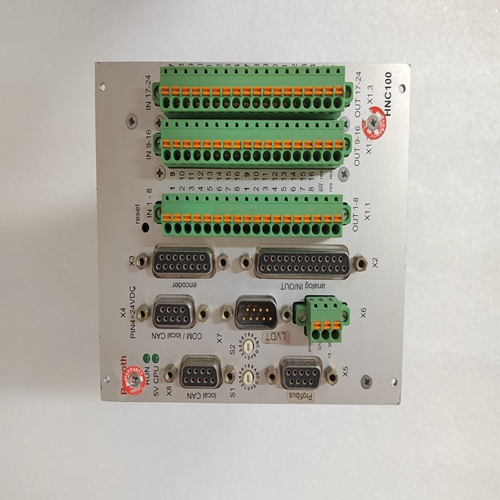

SYHNC100-NIB-23/W-24-P-D-E23-A012伺服模块
在一个工业区或更大的工业场地。然而，如果机器配备交流驱动器，在住宅或小型工业中运行区域和无线电干扰抑制变得必要，则符合DIN VDE 0875第节的B类限值
1、3和11或EN 55011、EN 55014、EN 50081、CISPR 11和CISPR 14是通过安装噪音过滤器直接粘附在机器上，该过滤器：INDRAMAT建议接入电源电缆。
当电机电源电缆长度较长时，进一步建议：使用了电缆，并且这些电机电源电缆没有在金属中布线套管
–使用屏蔽电缆，甚至更好，–这些电缆应敷设在接地金属管道或接地电缆中轴内衬金属。注：仅INDRAMAT驱动器所需的调试步骤在此描述。机器制造商必须按照以下要求提交整个机器或设施的调试流程：个人申请。危险源：•端子L1、L2和L3处的高电源电压•L+时的高链路电路电压，L-•端子A1、A2、A3和电机电缆插件处的电机电压高终端安全覆盖所有热部件，以避免任何意外接触！
用塑料盖盖住电源连接！•如有可能，关闭控制柜。
授权电气人员必须固定打开的电气控制柜、可接近的电气设施和设备，可能高温，防止危险人员接触。
•检查所有保护导体的固定连接电气设备和电机符合连接计划！仅允许在以下情况下进行操作：连接的保护导体在其适当位置设备和电机插头，即使用于快速测量或用于测试目的。防止与电源间接接触：采取必要的保护措施防止接触它们是针对当前的电源情况而规定的。F1保护功能（故障电流保护功能）不能用于交流驱动器！接触防护必须：以其他方式固定，例如过电流保护特征（符合DIN VDE 0160第6.5.2.4节）。由于故障，存在意外移动的危险•布线和电缆中•在NC或NC程序中
•在测量值编码器（如增量编码器）中
•在机器运行中，例如关闭安全功能和监视器检查操作和设置。
这些故障可能会发生•调试后，但，•在正常运行期间的不确定时间后。
Suppression of radio interference is generally not needed within an
industrial area or over larger industrial sites. If, however, machinery
equipped with AC drives is operated in residential or smaller industrial
areas and suppression of radio interference becomes necessary, then
the limiting values of Class B in accordance with DIN VDE 0875, Sections
1, 3 and 11 or EN 55011, EN 55014, EN 50081, CISPR 11, CISPR 14 are
adhered to directly at the machine by mounting a noise filter which
INDRAMAT recommends into the mains cable.
It is further recommended when longer cable lengths of the motor power
cable are used and those motor power cables are not routed in a metal
casing
– that a shielded cable be used, or even better,
– that these be routed in grounded metal pipes or in grounded cable
shafts lined with metal.Note: The commissiong steps required for the INDRAMAT drives only
are described here. The machine manufacturer must submit the commissioning process for the entire machine or facility as required for the
individual application.Sources of Danger:
• high mains voltage at terminals L1, L2, L3
• high link circuit voltage at L+, L-
• high motor voltage at terminals A1, A2, A3 and motor cable plug-in
terminals.• Securely cover all hot parts to avoid any accidental contact!
Cover the power connections with plastic lids!
• Close the control cabinet, if possible. Authorized electrical
personnel must secure open electrical control cabinets, accessible electrical facilities and equipment, which could be
hot, against contact by personnel at risk.
• Check the fixed connection of the protective conductor of all
the electrical equipment and motors, in accordance with the
connection plans! Operation is only permitted with firmly
attached protective conductors in their proper positions on
equipment and motor plug, even for quick measuring or
testing purposes.Protection against indirect contact with the mains:
Secure against contact by taking the necessary protective measures
which are prescribed for the mains situation at hand.
An F1 protective feature (fault current protective feature) cannot be used for the AC drives! Protection against contact must
be secured in some other way, e.g., an over-current protective
feature (in accordance with DIN VDE 0160, Section 6.5.2.4).
Danger from unwanted movement exists because of faults
• in the wiring and cables
• in the NC or NC program
• in the measuring value encoders such as the incremental encoder,
• in the operation of the machine, e.g., switching-off safety functions and
monitors to check operation and setting.
These faults can occur
• right after commissioning, but also,
• after an indeterminate length of time during normal operation.
