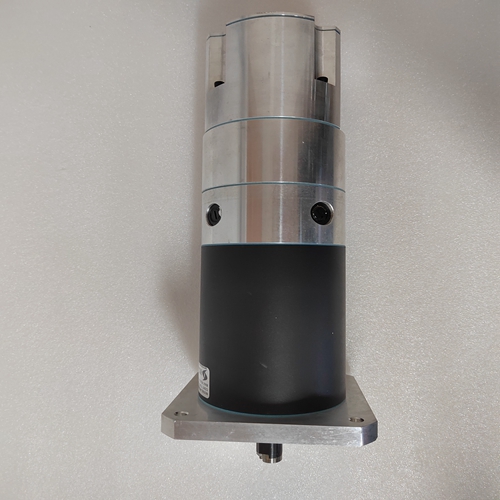

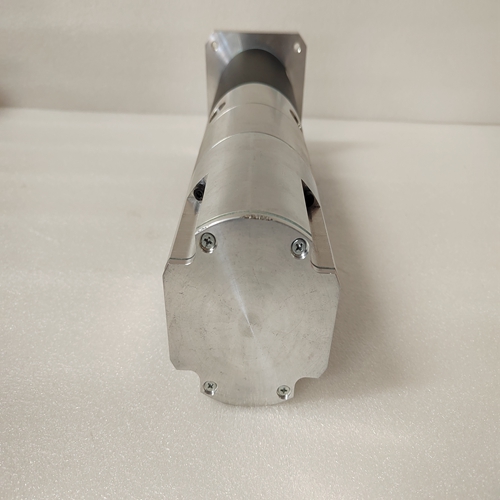

SERVO MTS30M4-38C永磁直流模块
INDRAMAT提供的屏蔽电机反馈电缆包括：九行。它也可作为带有电机端子的现成电缆提供和静脉端套管。
电机电源电缆和反馈电缆均可具有最大值如果使用原始INDRAMAT电缆，长度为75m。
反馈电缆应尽可能单独布线来自所有负载线路，如电源线、电机电源电缆和接触器
控制器线路：由于可能的干扰源，它们表示，尤其是电缆长度较长（超过10m）。A.
建议与电机电源电缆之间的间隙至少为100mm。
反馈电缆必须单侧接地至伺服驱动器单元屏蔽的接地连接必须短且直接尽可能。
电缆不应靠近高频设备布线
变压器、节流阀、电机和其他磁场产生的磁场消费者，以及高压线路，否则会受到干扰可以耦合入。
通过布置电机电源电缆可实现最大屏蔽并且电机反馈电缆位于单独的接地金属管中（图54），如果需要对抗干扰性提出高要求，为了–避免这两条电缆之间的破坏性耦合，
–避免电机电源电缆对相邻设备的破坏性反射电子生产设施和电源。位置编码器的连接和最大电缆长度相应制造商的指南。长度取决于编码器类型和控制器输入数据。
编码器的连接分配和最大电缆长度
INDRAMAT提供的信息可在以下适当的描述中找到：返回的位置。
连接电缆的布线应与所有负载线分开如电源引线、电机电源电缆和接触器控制器线路因为干扰。
电机电源和编码器电缆应单独布线，尤其是电缆长度较长（大于10m）且使用最大可能的间隙。
The shielded motor feedback cable supplied by INDRAMAT contains
nine lines. It is also available as a ready-made cable with motor terminal
and vein end sleeves.
Both the motor power cable and the feedback cable can have a maximum
length of 75m, if original INDRAMAT cables are used.
The feedback cable should be routed seperately and as far as possible
from all load lines such as mains lines, motor power cables and contactor
controller lines because of the possible source of interference they
represent, especially with longer cable lengths (longer than 10m). A
clearance of at least 100mm to the motor power cable is recommended.
The feedback cable must be single-sidedly earthed to the servo drive
module. The ground connection of the shield must be as short and direct
as possible.
The cable should not be routed close to high-frequency equipment,
magnetic fields from transformers, throttles, motors and other magnetic
consumers, as well as, high-voltage lines as otherwise interference
could be coupled in.
Maximum shielding can be achieved by routing the motor power cable
and the motor feedback cable in separate, grounded metal pipes, Fig. 54,
if high demands need to be made of the immunity to interference, in order
– to avoid disruptive couplings between both of these cables, and,
– to avoid disruptive reflections by the motor power cable onto adjacent
electronic production facilities and mains.Both the connection and maximum cable length of a position encoder
attached to the motor are outlined in the corresponding manufacturer’s
guidelnes. The length is dependent upon encoder type and controller
input data.
Both connection assignment and maximum cable length for the encoder
supplied by INDRAMAT can be found in the appropriate description for
position return.
The connecting cables should be routed seperated from all load lines
such as mains leads, motor power cables and contactor controller lines
because of interference.
Both the motor power and the encoder cables should be routed separately, particularly with longer cable lengths (greater than 10m) and using
the greatest possible clearances.
