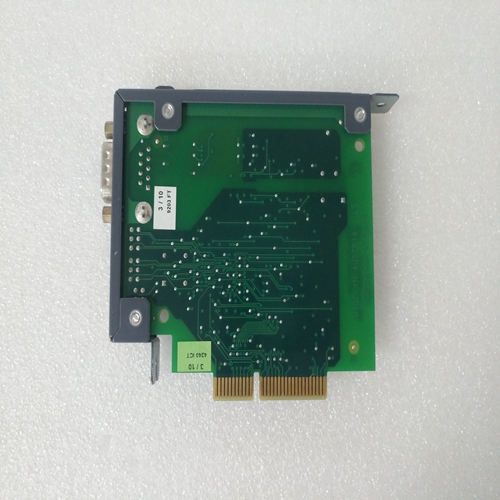

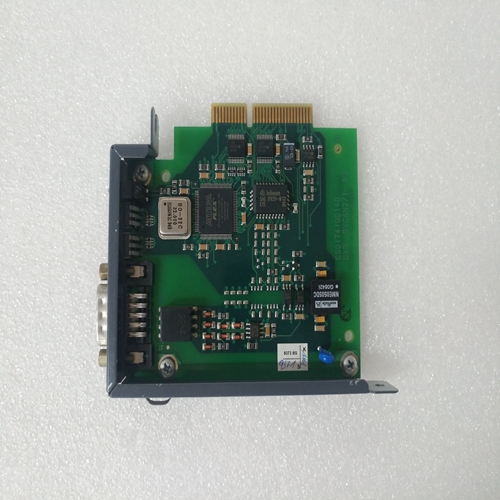

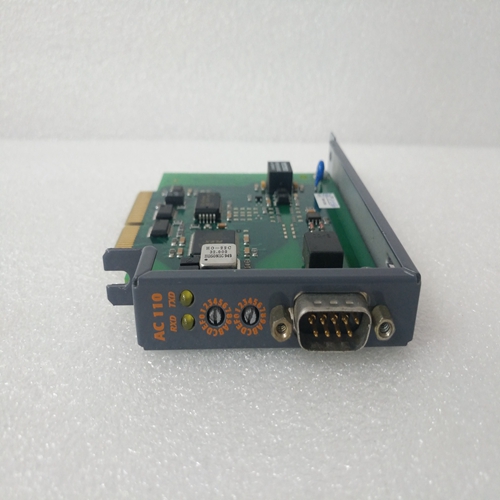

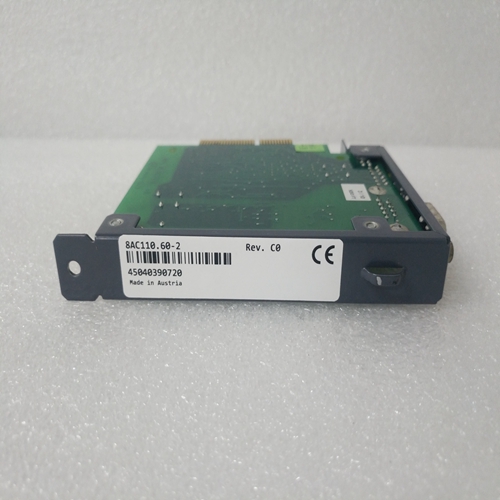

B&R 8AC110伺服驱动
使用ProSoft配置生成器
ProSoft Configuration Builder（PCB）提供了一种快速简便的管理方法定制模块配置文件以满足您的应用程序需求。PCB不是不仅是新配置文件的强大解决方案，还允许您导入从以前安装（已知工作）配置到新配置的信息项目。如果您以前使用过其他Windows配置工具，您将发现屏幕布局熟悉。PCB的窗口由左侧的树状视图和窗口右侧的信息窗格和配置窗格。什么时候首先启动PCB时，树状视图由默认项目和默认位置，默认位置文件夹中有默认模块。这个下图显示了带有新项目的PCB窗口。将MVI56-101M模块添加到项目中
1使用鼠标在树状视图中选择默认模块，然后单击用鼠标右键打开快捷菜单。
2在快捷菜单上，选择“选择模块类型”。此操作将打开
在对话框中选择模块类型。在对话框的产品线过滤器区域中，选择MVI56模块类型下拉列表，选择MVI56-101M，然后单击确定保存
您的设置并返回到ProSoft Configuration Builder窗口。此时，您可能希望重命名默认项目和默认位置树视图中的文件夹。
1选择对象，然后单击鼠标右键打开快捷方式菜单从快捷菜单中选择“重命名”。
2键入要分配给对象的名称。
3单击远离对象以保存新名称。配置模块参数
1单击模块图标旁边的[+]符号以展开模块信息。
2.单击任何图标旁边的[+]符号以查看模块信息，以及配置选项。
3双击任何图标以打开编辑对话框。
4要编辑参数，请选择左窗格中的参数，并使右窗格中的更改。
5单击“确定”保存更改。打印配置文件
1选择模块图标，然后单击鼠标右键打开快捷菜单。
2在快捷菜单上，选择“查看配置”。此操作将打开查看配置窗口。
3在视图配置窗口中，打开文件菜单，然后选择打印。此操作将打开“打印”对话框。
4在“打印”对话框中，从下拉列表中选择要使用的打印机，选择打印选项，然后单击确定。
Using ProSoft Configuration Builder
ProSoft Configuration Builder (PCB) provides a quick and easy way to manage
module configuration files customized to meet your application needs. PCB is not
only a powerful solution for new configuration files, but also allows you to import
information from previously installed (known working) configurations to new
projects. If you have used other Windows configuration tools before, you will find the
screen layout familiar. PCB’s window consists of a tree view on the left, and an
information pane and a configuration pane on the right side of the window. When
you first start PCB, the tree view consists of folders for Default Project and
Default Location, with a Default Module in the Default Location folder. The
following illustration shows the PCB window with a new project. Adding the MVI56-101M module to the project
1 Use the mouse to select DEFAULT MODULE in the tree view, and then click the
right mouse button to open a shortcut menu.
2 On the shortcut menu, choose CHOOSE MODULE TYPE. This action opens the
Choose Module Type dialog box. In the Product Line Filter area of the dialog box, select MVI56. In the Select
Module Type dropdown list, select MVI56-101M, and then click OK to save
your settings and return to the ProSoft Configuration Builder window At this time, you may wish to rename the Default Project and Default Location
folders in the tree view.
1 Select the object, and then click the right mouse button to open a shortcut
menu. From the shortcut menu, choose RENAME.
2 Type the name to assign to the object.
3 Click away from the object to save the new name.
Configuring Module Parameters
1 Click on the [+] sign next to the module icon to expand module information.
2 Click on the [+] sign next to any icon to view module information and
configuration options.
3 Double-click any icon to open an Edit dialog box.
4 To edit a parameter, select the parameter in the left pane and make your
changes in the right pane.
5 Click OK to save your changes. Printing a Configuration File
1 Select the module icon, and then click the right mouse button to open a
shortcut menu.
2 On the shortcut menu, choose VIEW CONFIGURATION. This action opens the
View Configuration window.
3 In the View Configuration window, open the FILE menu, and choose PRINT.
This action opens the Print dialog box.
4 In the Print dialog box, choose the printer to use from the drop-down list,
select printing options, and then click OK.
