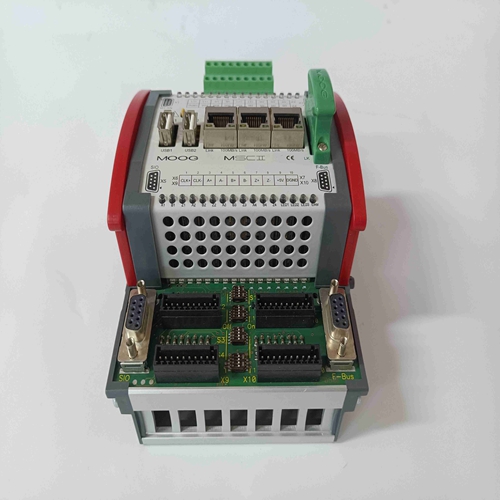

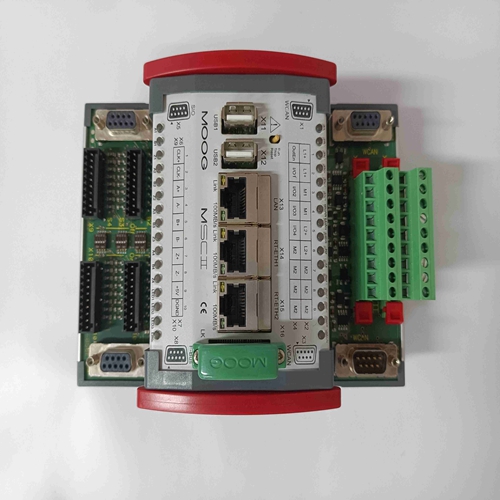

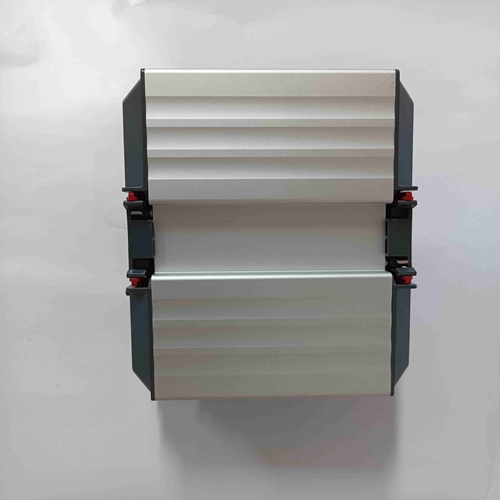

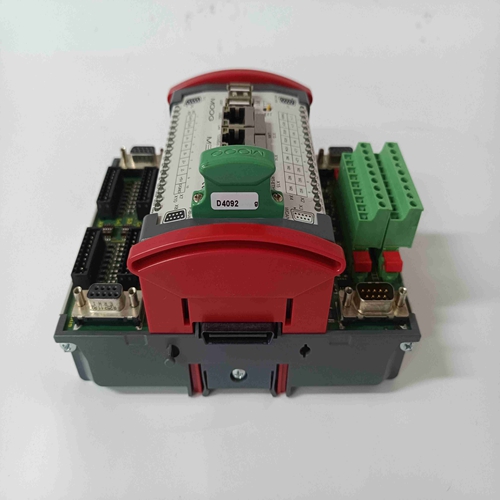

MOOG D136-002-005伺服控制器
手动模式激活
当DECS-100在手动模式下运行时，该LED点亮。手动模式通过以下方式启用：BESTCOMS软件。
低频有源当发电机频率降低到低于欠频设定点时，该LED亮起DECS-100在选定的伏特/赫兹曲线上进行调节。通信端口
通信端口位于后面板上，并且包括一个RS-232（DECS-B-9）母接头。这个通信端口用作编程接口
DECS-100的（设置）。图2-2说明了通信端口。
编程需要标准的九针串行连接在DECS-100和使用BESTCOMS软件运行的IBM兼容PC。
BESTCOMS软件是基于Microsoft Windows®的随附的通信软件包DECS-100。提供了最佳通信的详细说明
第5节，BESTCOMS软件。本节描述了DECS-100的功能，并解释了其操作特点。缓和理解，DECS-100功能如图3-1的框图所示在DECS-100功能标题下的段落中提供了每个功能块的说明阻碍。
DECS-100的操作功能包括四种操作模式、四种保护功能、启动规定，无功下垂补偿、低频补偿和可选电压匹配。详细的DECS-100标题下的段落中提供了每个操作特征的说明操作特性。
以下段落描述了图3-1所示的每个功能块
每个模块连同所有功能模块输入和输出的操作一起进行说明。
模拟输入电路七个模拟电压和电流可被感测并施加到DECS-100。母线电压
在包含电压的装置上的端子B3和B1处监控C相和A相母线电压匹配。在这些端子处可感测到高达600 Vac的标称电压。在此监测的电压输入在被应用到模数转换器（ADC）的输入之前被缩放和调节。施加到ADC的总线电压信号用于计算跨接总线电压的rms值相C和A（总线VC-A）。
发电机电压在端子E1（A相）、E2（B相）和E3（C相）处监测发电机电压。名义上的在这些端子处可感测到高达600 Vac的电压。施加到这些输入的电压在被施加到ADC的输入之前被缩放和调节。
Manual Mode Active
This LED lights when the DECS-100 is operating in Manual mode. Manual mode is enabled through
BESTCOMS software.
Underfrequency Active
This LED lights when the generator frequency decreases below the underfrequency setpoint and the
DECS-100 is regulating on the selected volts per hertz curve.
COMMUNICATION PORT
The communication port is located on the rear panel and
consists of a female, RS-232 (DECS-B-9) connector. The
communication port serves as an interface for programming
(setup) of the DECS-100. Figure 2-2 illustrates the location of
the communication port.
Programming requires a standard, nine-pin, serial
communication cable connected between the DECS-100 and
an IBM-compatible PC operating with BESTCOMS software.
BESTCOMS software is a Microsoft Windows®-based
communication software package that is supplied with the
DECS-100. A detailed description of BESTCOMS is provided
in Section 5, BESTCOMS Software. This section describes how the DECS-100 functions and explains its operating features. To ease
understanding, DECS-100 functions are illustrated in the block diagram of Figure 3-1. A detailed
description of each function block is provided in the paragraphs under the heading of DECS-100 Function
Blocks.
DECS-100 operating features include four operating modes, four protective functions, startup provisions,
reactive droop compensation, underfrequency compensation, and optional voltage matching. A detailed
description of each operating feature is provided in the paragraphs under the heading of DECS-100
Operating Features. The following paragraphs describe each of the function blocks illustrated in Figure 3-1. The function of
each block is explained along with the operation of all function block inputs and outputs.
Analog Input Circuits
Seven analog voltages and current may be sensed and applied to the DECS-100.
Bus Voltage
C-phase and A-phase bus voltages are monitored at terminals B3 and B1 on units that include voltage
matching. Nominal voltages of up to 600 Vac may be sensed at these terminals. Voltage monitored at this
input is scaled and conditioned before being applied to the input of the analog-to-digital converter (ADC).
This bus voltage signal applied to the ADC is used to calculate the rms value of the bus voltage across
phases C and A (Bus VC-A).
Generator Voltage
Generator voltage is monitored at terminals E1 (A-phase), E2 (B-phase), and E3 (C-phase). Nominal
voltages of up to 600 Vac may be sensed at these terminals. Voltage applied to these inputs is scaled and conditioned before being applied to the input of the ADC.
