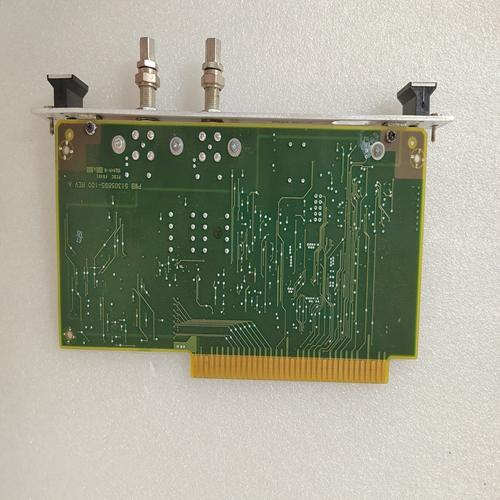

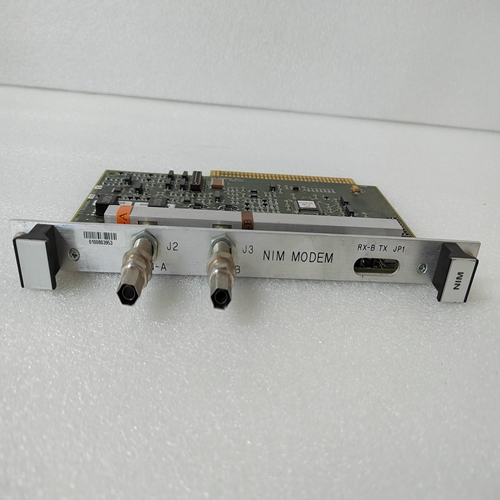

HONEYWELL 51305896-200 NIM工控备件
超级I/O块表示由NI PXI-8105。NI PXI-8105具有一个串行端口和一个ECP/EPP并行端口。
•千兆以太网连接到10 Mbit、100 Mbit或1000 Mbit以太网接口。
•GPIB块包含GPIB接口。
•ExpressCard/34插槽容纳ExpressCard/34模块。
•SATA块将串行ATA硬盘连接到ICH7M。
•ATA-100 IDE块是专用PCI-IDE电路,提供快速
ATA-100传输到内部2.5英寸。硬盘。IDE特性是内置于芯片组中。硬盘驱动器为30 GB或更大。
国家仪器软件National Instruments开发了几种可用于NI PXI-8105。
National Instruments的硬件和软件共同帮助您充分利用您的PXI系统。LabVIEW、测量工作室,和LabWindows™/CVI™ 应用程序开发环境组合具有领先的硬件驱动程序,如NI DAQmx,以提供对NI硬件的特殊控制。仪器驱动程序可访问ni.com/idnet以简化通过各种总线与仪器的通信。
LabVIEW是一种功能强大且易于使用的图形编程环境,您可以使用它从数千个不同的仪器包括USB、IEEE 488.2、VXI、串行、PLC和插件董事会。LabVIEW帮助您将获取的数据转换为有意义的结果使用强大的数据分析例程。
附加工具提供了额外的专用功能
有关更多信息,请访问ni.com/labview以及ni.com/toolkits。
如果您喜欢使用Microsoft的Visual Basic、Visual C++和Visual Studio.NET作为应用程序的核心,Measurement Studio为每种语言添加测量和自动化工具。更多有关信息,请访问ni.com/mstudio。
LabWindows/CVI是一个交互式ANSI C编程环境设计用于构建虚拟仪器应用程序。LabWindows/CVI
提供一个用于构建用户界面的拖放编辑器,一个完整的用于构建测试程序逻辑和集合的ANSI C环境
自动化代码生成工具,以及用于构建自动化测试系统、监控应用程序或实验室实验。有关更多信息,请访问ni.com/lwcvi。NI DAQmx提供了一个可调用的函数库从应用程序开发环境或交互环境
例如NI信号表达。这些函数为国家仪器的多功能DAQ产品。可用功能包括模拟输入(A/D转换)、缓冲数据采集(高速A/D转换)、模拟输出(D/A转换)、波形生成、数字I/O、计数器/定时器操作、SCXI信号调节,RTSI或PXI同步、自校准、消息传递和获取数据到扩展内存。有关更多信息,请访问ni.com/daq。
The Super I/O block represents the other peripherals supplied by the
NI PXI-8105. The NI PXI-8105 has one serial port, and an ECP/EPP
parallel port.
• The Gigabit Ethernet connects to either 10 Mbit, 100 Mbit, or
1,000 Mbit Ethernet interfaces.
• The GPIB block contains the GPIB interface.
• The ExpressCard/34 slot accommodates an ExpressCard/34 module.
• The SATA block connects a Serial ATA hard drive to the ICH7M.
• The ATA-100 IDE block is dedicated PCI-IDE circuitry providing fast
ATA-100 transfers to the internal 2.5 in. hard drive. The IDE feature is
built into the chipset. The hard drive is 30 GB or larger.
National Instruments Software
National Instruments has developed several software tools you can use with
the NI PXI-8105.
National Instruments’ hardware and software work together to help you
make the most of your PXI system. The LabVIEW, Measurement Studio,
and LabWindows™/CVI™ application development environments combine
with leading hardware drivers such as NI-DAQmx to provide exceptional control of NI hardware. Instrument drivers are available at ni.com/idnet
to simplify communication with instruments over a variety of busses.
LabVIEW is a powerful and easy-to-use graphical programming
environment you can use to acquire data from thousands of different
instruments including USB, IEEE 488.2, VXI, serial, PLCs, and plug-in
boards. LabVIEW helps you convert acquired data into meaningful results
using powerful data analysis routines. Add-on tools provide additional
specialized functionality. For more information visit ni.com/labview
and ni.com/toolkits.
If you prefer to use Microsoft’s Visual Basic, Visual C++, and
Visual Studio .NET for the core of your application, Measurement Studio
adds tools for Measurement and Automation to each language. For more
information visit ni.com/mstudio.
LabWindows/CVI is an interactive ANSI C programming environment
designed for building virtual instrument applications. LabWindows/CVI
delivers a drag-and-drop editor for building user interfaces, a complete
ANSI C environment for building your test program logic, and a collection
of automated code generation tools, as well as utilities for building
automated test systems, monitoring applications, or laboratory
experiments. For more information visit ni.com/lwcvi.
NI-DAQmx provides an extensive library of functions that you can call
from your application development environment or interactive environment
such as NI Signal Express. These functions provide an intuitive API for
National Instruments’ multifunction DAQ products. Features available
include analog input (A/D conversion), buffered data acquisition
(high-speed A/D conversion), analog output (D/A conversion), waveform
generation, digital I/O, counter/timer operations, SCXI signal conditioning,
RTSI or PXI synchronization, self-calibration, messaging, and acquiring
data to extended memory. For more information visit ni.com/daq.
