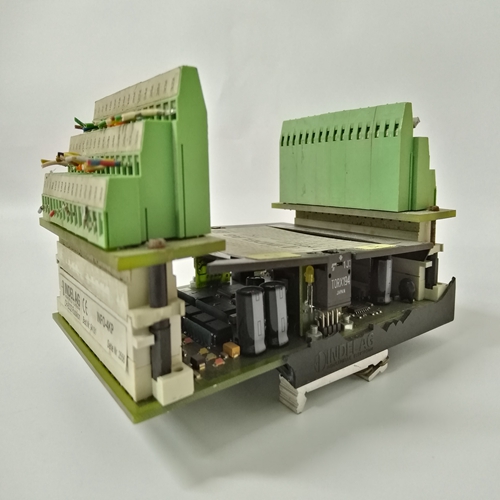

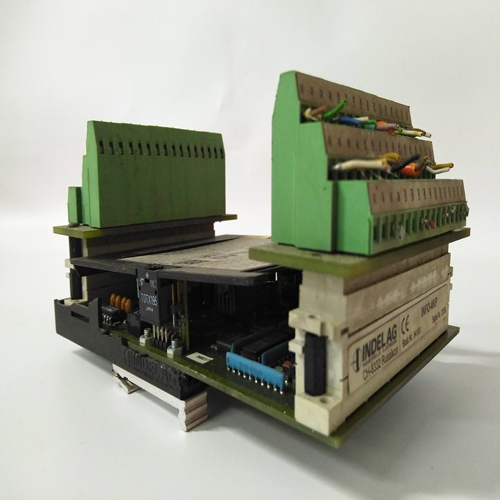

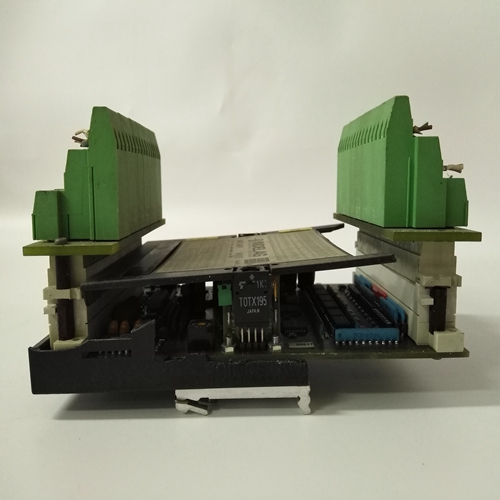

INDEL AG INFO-4KP-94161数字量模块
延迟/积分器(延迟)A、 应用通用定时器
对脉动二进制信号进行积分,以获得连续信号,例如失磁功能输出(失步保护)或反向功率保护
短I/P信号的延长(脉冲延长)简单时间延迟。
B、 特征可分配给的二进制I/P信道二进制I/P信号2保护功能跳闸信号(跳闸)所有I/P通道都可以反转。
可调复位时间2延时类型积分:仅I/P信号处于逻辑“1”在延时结束时计数。
无积分:从定时器瞬间开始的总时间开始,直到重置或到期计数。
启用和禁用各种功能可以启用和禁用该功能的许多功能。
t1激活此设置提供了禁用计时器t1的功能。当禁用时,不会生成“重复跳闸”组信号。
t2激活此设置提供了禁用定时器t2的功能。当禁用时,不会生成任何“备用跳闸”组信号。
重新激活该设置提供了禁用传输跳闸的设施。
什么时候如果禁用,则不会生成任何“远程跳闸”组信号。EFP活动此设置提供了禁用端故障保护的功能。
禁用时,“结束故障”信号组中没有一个生成。
红色活性
该设置为禁用冗余保护提供了便利。禁用时,不会生成任何“冗余”信号组。开始下一幕。
该设置提供了禁用无条件跳闸的设施特色禁用时,“无条件跳闸”
生成一组信号。跳闸延迟输入端的启动信号和跳闸信号之间的时间在输出端。
复位延迟输入信号出现后计时器复位所需的时间消失。
整合存在时函数响应的确定
脉动I/P信号:0:延迟继续运行,前提是I/P信号不会消失超过重置时间。
1: 积分I/P处于逻辑“1”的时间,即,在逻辑“1“时间之和等于设定延迟时间之前,不会发生跳闸。
Delay/integrator (Delay)
A. Application
General purpose timer for
integration of pulsating binary signals to obtain a continuous
signal, e.g. output of the loss-of-excitation function (out-ofstep protection) or reverse power protection
extension of short I/P signals (pulse prolongation)
simple time delay.
B. Features
binary I/P channel assignable to
binary I/P signals
2 protection function tripping signals (trips)
All I/P channels can be inverted.
adjustable reset time
2 types of time delay
Integration: Only the time during which the I/P signal is at
logical "1" counts at the end of the time delay.
No integration: The total time from the instant the timer
starts until it is either reset or expires counts.
Enabling and disabling the various features
A number of the function’s features can be enabled and disabled.
t1 active
This setting provides facility for disabling the timer t1. When it is
disabled, none of the “repeat trip” group of signals is generated.
t2 active
This setting provides facility for disabling the timer t2. When it is
disabled, none of the “backup trip” group of signals is generated.
RemTrip active
This setting provides facility for disabling transfer tripping. When
it is disabled, none of the “remote trip” group of signals is generated.
EFP active
This setting provides facility for disabling the end fault protection.
When it is disabled, none of the “end fault” group of signals is
generated.
Red active
This setting provides facility for disabling the redundant protection. When it is disabled, none of the “redundant” group of signals is generated.
Start Ext act.
This setting provides facility for disabling the unconditional trip
feature. When it is disabled, none of the “unconditional trip”
group of signals is generated.Trip-Delay
Time between start signal at the input and the tripping signal
at the output.
Reset-Delay
Time required for the timer to reset after the input signal has
disappeared.
Integration
Determination of the response of the function in the presence
of a pulsating I/P signal:
0: The delay continues to run, providing the I/P signal does
not disappear for longer than the reset time.
1: The time during which the I/P is at logical "1" is integrated, i.e. tripping does not take place until the sum of logical "1" time equals the set delay time.
